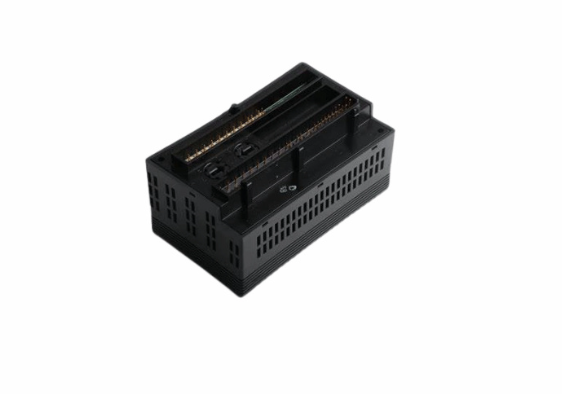

IC200MDD843 分立式混合模块  具有广泛的功能

【产品详情】

IC200MDD843分立式混合模块由 GE Fanuc 制造，是 Versamax 系列的一部分。它将输入和输出组合到一个产品中。这款 GE Fanuc 分立式混合模块最多有 16 个输出和输入，分为 2 个独立的组，包括第一组的 10 个输入点和第二组的 6 个继电器输出点。IC200MDD843模块的输入点有 2 种不同的类型，即源极类型和正逻辑类型。此外，该模块的输出点可以容纳高达 8 安培的电流。该 Versamax 分立式混合模块从安装在 PLC 机架上的背板获取主电源，但对于额外的负载，该模块将需要辅助电源。根据有源输出和输入点的数量，它从背板汲取越来越多的功率，最大额定电流可达 190 毫安。

GE Fanuc IC200MDD843分立式混合模块不支持缓冲器或内部保险丝等保护功能。它也不支持通道间隔离。该模块具有广泛的功能，包括每分钟 20 个周期的开关频率（带感性负载）、银合金触点、10 毫秒的最大响应速度以及具有移动电枢的固定线圈型继电器。IC200MDD843模块的尺寸为 1.956 x 2.63 x 4.3 英寸，这些测量值不包括托架高度和配接连接器。该模块使用 18 个 A 型端子进行现场接线，以及一个可通过短路条访问的附加 B 型端子。

IC200MDD843 分立式混合模块  具有广泛的功能

【英文介绍】

The IC200MDD843 vertical hybrid module is manufactured by GE Fanuc and is part of the Versamax family. It combines inputs and outputs into a single product. The GE Fanuc hybrid module has up to 16 outputs and inputs, divided into 2 separate groups, including 10 input points in the first group and 6 relay output points in the second group. The input points of the IC200MDD843 module have two different types, namely the source type and the positive logic type. In addition, the module's output points can hold up to 8 amps of current. The Versamax split hybrid module draws its main power from a backplane mounted on the PLC rack, but for additional loads, the module will require an auxiliary power supply. Depending on the number of active output and input points, it draws more and more power from the backplane, with a maximum rated current of 190 mA.

The GE Fanuc IC200MDD843 split hybrid module does not support protection features such as buffers or internal fuses. It also does not support inter-channel isolation. The module has a wide range of features, including a switching frequency of 20 cycles per minute (with inductive load), silver alloy contacts, a maximum response speed of 10 milliseconds, and a fixed coil type relay with a moving armature. The dimensions of the IC200MDD843 module are 1.956 x 2.63 x 4.3 inches, and these measurements do not include bracket height and mating connectors. The module uses 18 Type A terminals for field wiring, as well as an additional Type B terminal accessible via a short circuit bar.

IC200MDD843 分立式混合模块  具有广泛的功能
