GE  IC200GBI001 通信模块 网络接口单元

【产品详情】

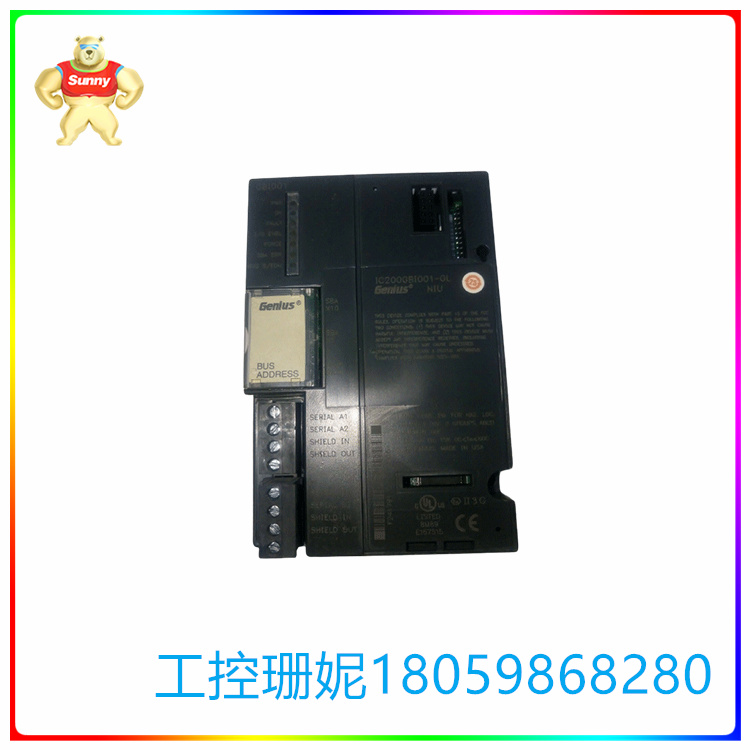

IC200GBI001是 VersaMax 通信模块。该模块是一个 Genius 网络接口单元，允许将 VersaMax I/O 模块安装在分布式 I/O 架构中。该模块设计为每个机架最多可容纳八 （8） 个 I/O 模块，并支持安装多达八 （8） 个机架，最多支持 64 个 I/O 模块。它支持153.6 kbaud的传输速度，用于扩展网络配置;标准配置为 153.6 kbaud、76.8 Kbaud 和 38.4 Kbaud，IC200GBI001 可以容纳大量 I/O 点，

特别是离散输入最多 1024 个点;1024 个离散输出;128字节模拟输入存储器和128字节模拟输出存储器。该模块可以管理每次扫描 128 字节网络输入的扫描和每次扫描 128 位输出的扫描。它的功耗为 250 mA @ 4VDC 和 10 mA @ 3.3 mA。

该IC200GBI001与各种控制器系统兼容，因为以前和现代控制器平台都支持 Genius 协议。兼容的控制系统包括 90-70 系列和 PACSystem RX7i 和 PACSystem RX3i。必须将适当的固件版本加载到控制器和 IC200GBI001 Genius 网络接口模块。

IC200GBI001配有双 Genius 连接端子。上端子用作主 Genius 连接点，而下端子用作冗余端口。这些端口设计用于以菊花链拓扑结构进行连接，在通信电缆的两端安装有终端电阻器。适当的电阻值为 75、100、120 或 150 欧姆，跨端子串行 1 和 2。

IC200GBI001 网络接口模块属于 GE Fanuc Versamax 系列产品。它用作一组 I/O 模块的控制器。可以直接在网络接口模块上安装电源，为其供电。该模块的主机系统是Versamax PLC或工业计算机，可以控制总线。每个机架可以使用的模块数量为 8 个，最多可使用 8 个机架。IC200GBI001 网络接口模块与多种模块兼容，包括模拟 I/O 模块、GE 系列 90-70 PLC、GMR 系统和 RX3i PLC。它提供从 0 到 31 的串行总线地址。

IC200GBI001 网络接口模块具有 1024 点离散 I/O 存储器、128 字节模拟 I/O 存储器和 153.6 Kbaud 网络数据速率。它将 Versamax I/O 站连接到 Genius I/O 总线。该模块的固件版本为 3.20 版。此固件版本可以下载到任何硬件版本。其增强的诊断模式可用于安全相关应用。IC200GBI001 模块的额定功耗为 5 伏（250 毫安）或 3.3 伏（10 毫安）。对于扩展和标准波特率，该模块的网络数据速率均为 153.6 Kbaud。它使用 3 个旋转拨盘来配置其地址并设置通信波特率。它可以安装在 35 x 7.5 毫米导电 DIN 导轨上。该模块可以水平或垂直安装在DIN导轨上。在卸下模块之前，请确保卸下电源。

GE  IC200GBI001 通信模块 网络接口单元

【英文介绍】

IC200GBI001 is the VersaMax communication module. The module is a Genius network interface unit that allows VersaMax I/O modules to be installed in a distributed I/O architecture. The module is designed to accommodate up to eight (8) I/O modules per rack and supports the installation of up to eight (8) racks for up to 64 I/O modules. It supports a transmission speed of 153.6 kbaud for extended network configuration; With standard configurations of 153.6 kbaud, 76.8 Kbaud and 38.4 Kbaud, the IC200GBI001 can accommodate a large number of I/O points.

In particular, the discrete input is up to 1024 points; 1024 discrete outputs; 128 bytes analog input memory and 128 bytes analog output memory. The module can manage scans of 128-byte network input per scan and 128-bit output per scan. Its power consumption is 250 mA @ 4VDC and 10 mA @ 3.3mA.

The IC200GBI001 is compatible with a variety of controller systems, as both previous and modern controller platforms support the Genius protocol. Compatible control systems include the 90-70 series and PACSystem RX7i and PACSystem RX3i. The appropriate firmware version must be loaded into the controller and the IC200GBI001 Genius network interface module.

The IC200GBI001 is equipped with dual Genius connection terminals. The upper terminal is used as the primary Genius connection point, while the lower terminal is used as a redundant port. These ports are designed to be connected in a Daisy chain topology with terminal resistors installed at both ends of the communication cable. Appropriate resistance values are 75, 100, 120 or 150 ohms, serial 1 and 2 across terminals.

The IC200GBI001 network interface module belongs to the GE Fanuc Versamax series. It acts as a controller for a set of I/O modules. You can directly install power supplies on network interface modules to supply power to them. The host system of the module is Versamax PLC or industrial computer, which can control the bus. Each rack can use a maximum of 8 modules. The IC200GBI001 network interface module is compatible with a variety of modules, including analog I/O modules, GE series 90-70 PLCS, GMR systems and RX3i PLCS. It provides serial bus addresses from 0 to 31.

The IC200GBI001 network interface module features 1024-point discrete I/O memory, 128-byte analog I/O memory, and a 153.6 Kbaud network data rate. It connects the Versamax I/O station to the Genius I/O bus. The firmware version of this module is version 3.20. This firmware version can be downloaded to any hardware version. Its enhanced diagnostic mode can be used for security-related applications. The IC200GBI001 module is rated for power consumption of 5 volts (250 mA) or 3.3 volts (10 mA). For both extended and standard baud rates, the module has a network data rate of 153.6 Kbaud. It uses three rotating dials to configure its address and set the communication baud rate. It can be mounted on a 35 x 7.5 mm conductive DIN rail. The module can be mounted horizontally or vertically on a DIN rail. Before removing the module, ensure that the power supply is removed.
