IC200CHS211 插入继电器底座 用于隔离电压差

【产品详情】

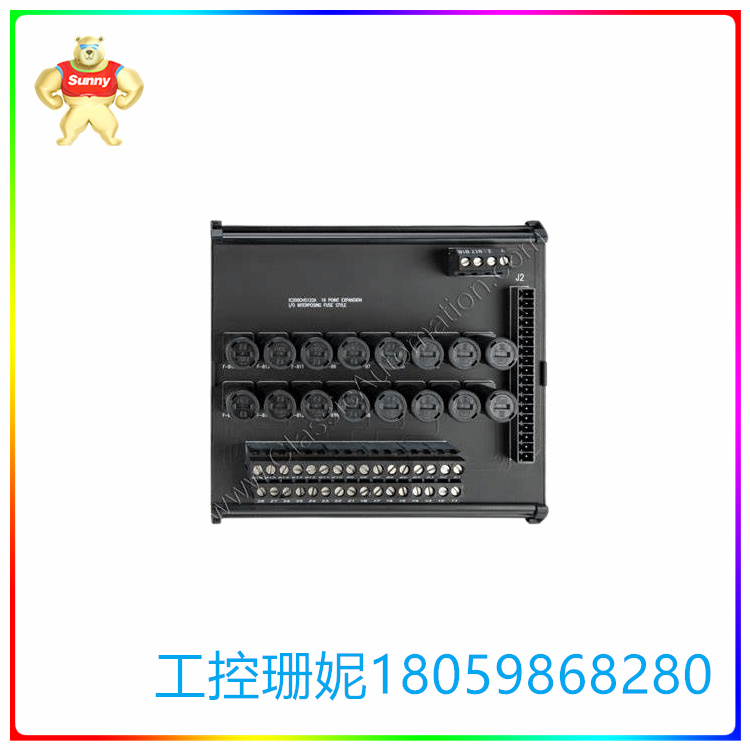

IC200CHS211底座是具有插入功能的 Versamax 16 点继电器底座。该继电器底座的主要功能是在 2 个电路之间设置屏障。这通常用于隔离电压差、电流消耗和其他基准电压源。它体积小，节省了面板空间。底座配有可更换的继电器。底座的 16 个 I/O 点与 8 安培额定保险丝熔断，必要时可更换。通过使用额定电流为 24.0 安培的 5 伏直流额定输出模块，可以轻松控制继电器。继电器提供保护并提供以安培为单位的高输出。IC200CHS211底座的正面有 1 个 LED，用于 16 个 I/O 点。当通过这些点进行连接时，这些 LED 会亮起。连接到底座的 Versamax 模块具有 128 KB 的内存，用于存储应用程序、算法、实时时钟、浮点数据和其他信息。

GE Fanuc IC200CHS211 Versamax 继电器底座提供了广泛的选项，并支持多达 256 个 I/O 点。它已通过机构认证，包括 UL、CE 和 ATEX 标准。IC200CHS211底座可通过DIN导轨安装底座轻松安装。它支持广泛的通信选项和模块。对于连接，它使用规格尺寸为 14 AWG 的电线。安装环境的最大湿度水平应为 95% 非冷凝湿度。环境温度应设置在 0 到 60 摄氏度之间。IC200CHS211底座能够在运行期间承受轻微的冲击和振动。

IC200CHS211 插入继电器底座 用于隔离电压差

【英文介绍】

The IC200CHS211 base is a Versamax 16-point relay base with insertion function. The main function of the relay base is to set a barrier between the two circuits. This is often used to isolate voltage differences, current consumption, and other reference voltage sources. It is small and saves panel space. The base is equipped with a replaceable relay. The 16 I/O points of the base are blown with the 8 amp rated fuse and can be replaced if necessary. The relay can be easily controlled by using a 5 volt DC rated output module with a current rating of 24.0 amps. Relays provide protection and provide high output in amperes. The front of the IC200CHS211 base has 1 LED for 16 I/O points. When connected through these points, these leds light up. The Versamax module attached to the base has 128 KB of memory for storing applications, algorithms, real-time clocks, floating-point data, and other information.

The GE Fanuc IC200CHS211 Versamax relay base offers a wide range of options and supports up to 256 I/O points. It has been certified by institutions including UL, CE and ATEX standards. The IC200CHS211 base can be easily installed with the DIN rail mounting base. It supports a wide range of communication options and modules. For connections, it uses a specification size of 14 AWG wire. The maximum humidity level of the installation environment should be 95% non-condensing humidity. The ambient temperature should be set between 0 and 60 degrees Celsius. The IC200CHS211 base is designed to withstand minor shocks and vibrations during operation.

IC200CHS211 插入继电器底座 用于隔离电压差
