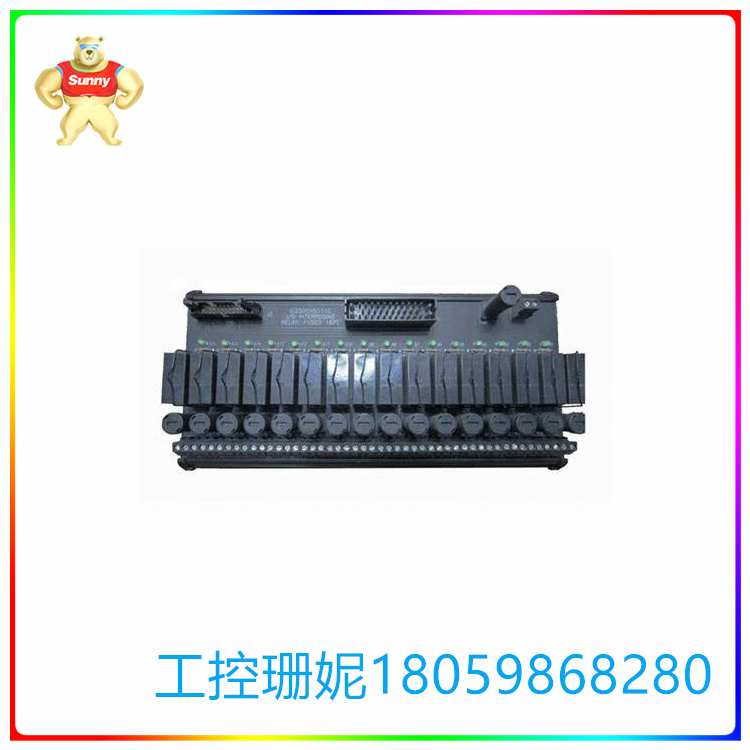

IC200CHS121 插入式熔断器型端子 现场接线连接
【产品详情】
| 品牌 | GE发那科 |
| 系列 | Versamax的 |
| 零件编号 | IC200CHS121 |
| 描述 | 插入式熔断器式端子 |
| 渠道 | 16 |
IC200CHS121 Versamax 端子是 GE 制造的插入式熔断器型端子。它设计有 16 个通道。它用于将 I/O 载体模块与现场接线连接。终端中的 16 个通道都配有自己的 LED 端子。当通道连接有活动时，每个通道的 LED 会亮起。该终端节省空间，是一种具有成本效益的工业解决方案。它重约 1 磅，并配有一个开放式外壳。它与 Versamax I/O 模块完全兼容。IC200CHS121端子有 2 个主要组件，分别是底座和扩展底座。端子的主底座与 Versamax 模块上的 A 端子连接。
IC200CHS121端子带有一个连接器，该连接器从 I/O 载体连接到电缆上，用于电源连接。使用背面的支架可以轻松安装端子。为了抗振，端子应使用螺钉安装。IC200CHS121端子连接到 Versamax 模块连接器上的 A 侧端子。模块中存在连接的电线，无需额外的接线端子。每个端子和电缆连接器都需要单独的保险丝。安装时，端子应正确接地并与电源断开。环境温度应设置在 0 到 60 摄氏度之间。如果环境温度上升到 60 摄氏度以上，则终端输出降额。端子应远离EMC噪声。
IC200CHS121 插入式熔断器型端子 现场接线连接
【英文介绍】
The IC200CHS121 Versamax terminal is a plug-in fuse type terminal manufactured by GE. It is designed with 16 channels. It is used to connect the I/O carrier module to the field wiring. Each of the 16 channels in the terminal is equipped with its own LED terminals. When there is activity in the channel connection, the leds in each channel light up. The terminal saves space and is a cost-effective industrial solution. It weighs about 1 pound and comes with an open housing. It is fully compatible with Versamax I/O modules. The IC200CHS121 terminal has two components, namely a base and an expansion base. The main base of the terminal is connected to terminal A on the Versamax module.
The IC200CHS121 terminal comes with a connector that is connected from the I/O carrier to the cable for power connection. The terminal can be easily installed using the bracket on the back. To resist vibration, use screws to install terminals. Connect the IC200CHS121 terminal to the A-side terminal on the Versamax module connector. There are connected wires in the module and no additional terminals are required. A separate fuse is required for each terminal and cable connector. Terminals must be properly grounded and disconnected from the power supply during installation. The ambient temperature should be set between 0 and 60 degrees Celsius. If the ambient temperature rises to more than 60 degrees Celsius, the terminal output derates. Keep the terminals away from EMC noise.
