IC200CHS006现场总线通信模块提供现场布线

【产品详情】

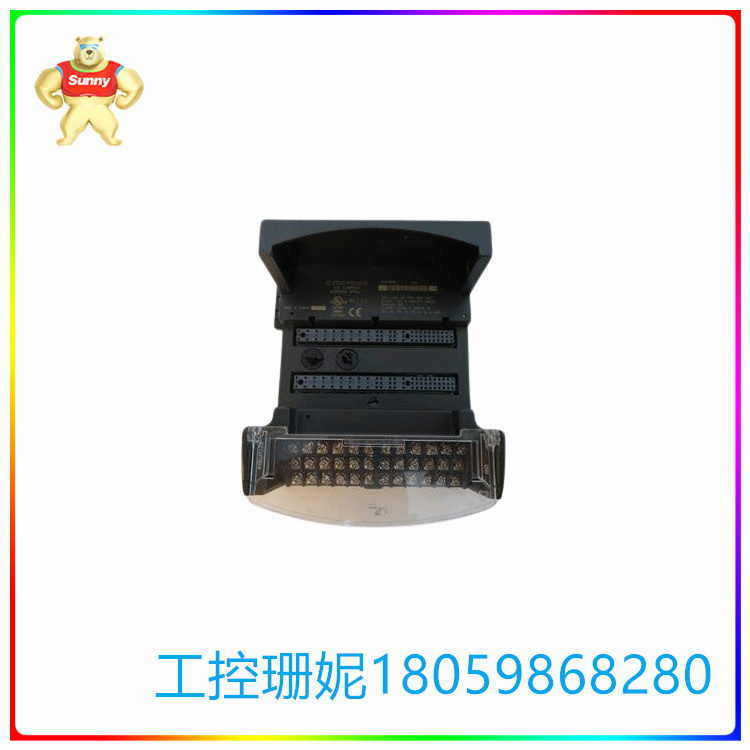

IC200CHS006运营商是通信运营商。IC200CHS006载波由 GE Fanuc 设计，用于为现场总线通信模块提供现场布线、安装和背板通信。IC200CHS006托架的尺寸为 66.8 x 133.4 毫米。IC200CHS006载波与所有GE Fanuc VersaMax系列现场总线通信模块兼容。IC200CHS006托架可轻松卡入尺寸为 7.5 x 35 毫米的 DIN 导轨上。为了获得EMC保护，DIN导轨必须接地。DIN导轨还必须具有导电、耐腐蚀的表面处理。托架可以位于任何插槽中。提供了一个闩锁孔，用于将兼容的通信模块牢固地固定到载体上。对于需要抗机械振动和冲击的工业应用，IC200CHS006载体应安装在面板上。

Versamax 通信模块可以安装在通信载波上，例如IC200CHS006载波。通信模块的电源来自主电源或升压电源。提供不同的通信模块，包括 IC200BEM002 Profibus-DP 网络从站模块、IC200BEM103 DeviceNet 网络控制模块和 IC200BEM104 AS 网络主站模块。Profibus-DP 模块允许在 Profibus 网络上交换 PLC 参考表数据。多个 Profibus-DP 模块可以安装在同一个 VersaMax PLC 中。DeviceNet模块可以配置为从模块、主模块或同时配置为两者。AS 接口模块可用于实现 Versamax PLC 或 I/O 站 NIU 与执行器-传感器网络之间的连接。IC200CHS006载体的工作温度范围为 0 至 60 摄氏度。储存温度范围为 -40 至 85 摄氏度。

IC200CHS006现场总线通信模块提供现场布线

【英文介绍】

The IC200CHS006 carrier is a communication carrier. The IC200CHS006 carrier was designed by GE Fanuc to provide field wiring, installation, and backplane communication for fieldbus communication modules. The IC200CHS006 bracket measures 66.8 x 133.4 mm. The IC200CHS006 carrier is compatible with all GE Fanuc VersaMax series fieldbus communication modules. The IC200CHS006 bracket can be easily clamped onto DIN rails measuring 7.5 x 35 mm. In order to obtain EMC protection, DIN guides must be grounded. DIN guides must also have a conductive, corrosion-resistant surface finish. The bracket can be located in any slot. A latchhole is provided for securely securing the compatible communication module to the carrier. For industrial applications that require resistance to mechanical vibration and shock, the IC200CHS006 carrier should be mounted on a panel.

The Versamax communication module can be installed on a communication carrier, such as the IC200CHS006 carrier. The power supply of the communication module can be an autonomous power supply or a booster power supply. Different communication modules are provided, including IC200BEM002 Profibus-DP network slave module, IC200BEM103 DeviceNet network control module and IC200BEM104 AS network master module. The PROFIBUS-DP module allows the exchange of PLC reference table data over the Profibus network. Multiple Profibus-DP modules can be installed in the same VersaMax PLC. The DeviceNet module can be configured as a slave module, a master module, or both. The AS interface module can be used to connect the Versamax PLC or I/O station NIU to the executive-sensor network. The IC200CHS006 carrier operates at a temperature range of 0 to 60 degrees Celsius. The storage temperature range is -40 to 85 degrees Celsius.

IC200CHS006现场总线通信模块提供现场布线
