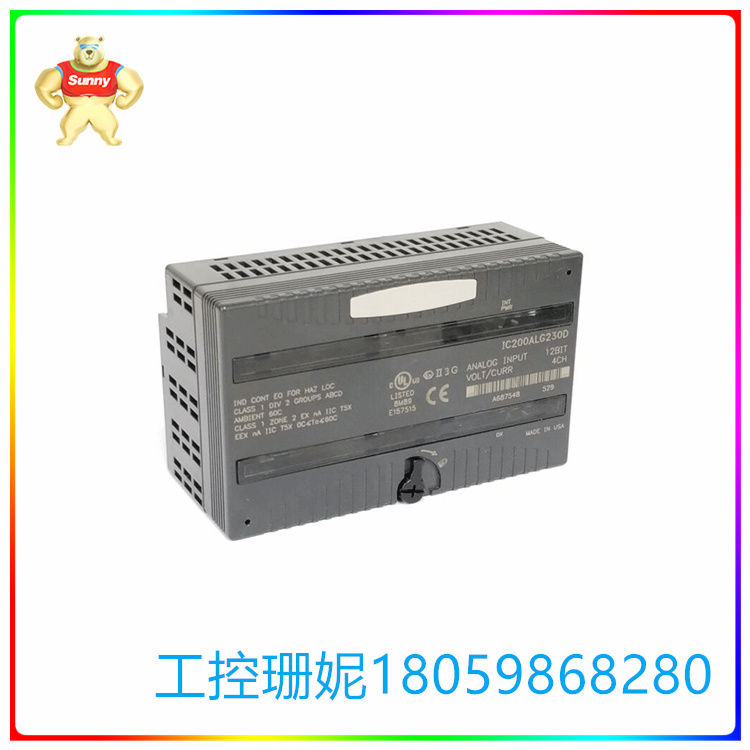

GE IC200ALG430 模数转换器  模拟模块

【产品详情】

技术规格

不。通道数： 4 个差分输入，一组和 2 个单端输出，一组

输入电流范围： 4 - 20 毫安

输出电流范围： 4 - 20 毫安

更新速率： 0.4 毫秒

输入滤波器响应： 5.0 毫秒

功耗： +50V 总线 5 mA

 IC200ALG430是 VersaMax 组合模拟模块。该模块配备四 （4） 个差分输入，排列成一组，接受 4-20 mA 信号，每个输入通道上带有分辨率为 12 位的模数转换器 （ADC）。同样，它还在一组中具有两 （2） 个单端输出，可产生 4-20 mA 输出信号，具有 12 位的相似分辨率。该模块非常适合用于面板空间有限或扩展通道最大化的应用。

IC200ALG430模拟输入电路在没有外部电源的情况下工作，但是，输出电路应提供外部 24 VDC 电源电压以产生输出电流信号。该模块配有 FLD PWR LED，用于报告现场电源的存在，并带有 OK LED 用于报告背板的有源电源。

输入通道特性包括 200 欧姆（最大值）的输入隐含、0.4 ms 的更新速率、5.0 ms 的滤波器响应和满量程 +/-0.3% （典型值）、0 摄氏度时满量程最大值 +/-5.25% 和 1-0 摄氏度时满量程最大值 +/-60% 的精度。相反，输出通道的更新速率为0.3 ms，精度与输入通道相似。输出通道具有可配置的保持状态或提供可选的常量值。对于输入保持状态功能，如果模块与 CPU 或 NIU 版本 2.x 或更高版本一起使用，则输入默认为 0 以响应 CPU 停止或模块错误，但是，对于更高的 CPU 或 NIU 版本（例如版本 1.5 或更高版本），输入默认值与跳线定义的输出默认值匹配。

IC200ALG430模块是由GE Fanuc制造的Versamax模拟混合模块。它为用户提供 4 个模拟电流输入和 2 个模拟电流输出。它是一种分辨率为 12 位的工业设备。该模块的输入和输出电流范围在 4 到 20 毫安之间，该模块消耗 50 伏总线的 5 毫安。模拟模块的更新速率为0.4毫秒，输入滤波器响应为5毫秒。IC200ALG430模块能够提供 4 个字的输入数据和 2 个字的模拟输出数据。该混合模块的输入电源电压为 250 伏交流电。 IC200ALG430模块易于设置和使用。

它与各种模块和通信设备完全兼容。该模块配备了处理处理功能的 CPU。模块前部配有LED指示灯。绿色 FLD PWR LED 显示电路的功率流。当模块通电时，另一个绿色 LED 即 OK LED 亮起。用户对逻辑隔离和框架接地的输入为 250 伏交流电，持续 1500 秒为 60 伏交流电。IC200ALG430模块中有一个诊断功能，用于检查断电情况。模块中的通道间串扰抑制最小值为 30 dB。

GE IC200ALG430 模数转换器  模拟模块

【英文介绍】

Technical specification

Nooooo. Number of channels: 4 differential inputs, one set and 2 single-ended outputs, one set

Input current range: 4-20 MA

Output current range: 4-20 MA

Update rate: 0.4 ms

Input filter response: 5.0 ms

Power consumption: +50V bus 5 mA

IC200ALG430 is the VersaMax composite simulation module. The module is equipped with four (4) differential inputs, arranged in a group, receiving 4-20 mA signals with a 12-bit resolution analog-to-digital converter (ADC) on each input channel. Similarly, it also has two (2) single-ended outputs in a set that produce a 4-20 mA output signal with a similar resolution of 12 bits. The module is ideal for applications where panel space is limited or expansion channels are maximized.

The IC200ALG430 analog input circuit operates without an external power supply, however, the output circuit should provide an external 24 VDC power supply voltage to generate an output current signal. The module is equipped with an FLD PWR LED for reporting the presence of field power and an OK LED for reporting the active power of the backplane.

Input channel characteristics include input implicity at 200 ohms (maximum), update rate at 0.4 ms, filter response at 5.0 ms and full scale +/-0.3% (typical), full scale maximum at 0 ° C +/-5.25%, and full scale maximum at 1-0 ° C +/-60% The precision of... In contrast, the output channel has an update rate of 0.3 ms, with similar accuracy to the input channel. The output channel has a configurable hold state or provides optional constant values. For the input hold status function, if the module is used with a CPU or NIU version 2.x or later, the input defaults to 0 in response to a CPU stop or module error, however, for a higher CPU or NIU version (such as version 1.5 or later), The input default matches the output default defined by the jumper.

The IC200ALG430 module is a Versamax analog hybrid module manufactured by GE Fanuc. It provides the user with 4 analog current inputs and 2 analog current outputs. It is an industrial device with a resolution of 12 bits. The module's input and output currents range from 4 to 20 mA, and the module consumes 5 mA of a 50 volt bus. The update rate of the analog module is 0.4 ms and the input filter response is 5 ms. The IC200ALG430 module can provide 4 words of input data and 2 words of analog output data. The input power supply voltage of the hybrid module is 250 volts AC. The IC200ALG430 module is easy to set up and use.

It is fully compatible with various modules and communication devices. The module is equipped with a CPU to handle processing functions. The front of the module is equipped with an LED indicator. Green FLD PWR LED displays the power flow of the circuit. When the module is powered on, another green LED, the OK LED, lights up. The user's input to logical isolation and frame grounding is 250 volts AC and 60 volts AC for 1500 seconds. There is a diagnostic function in the IC200ALG430 module to check for power failure. The minimum inter-channel crosstalk suppression in the module is 30 dB.
