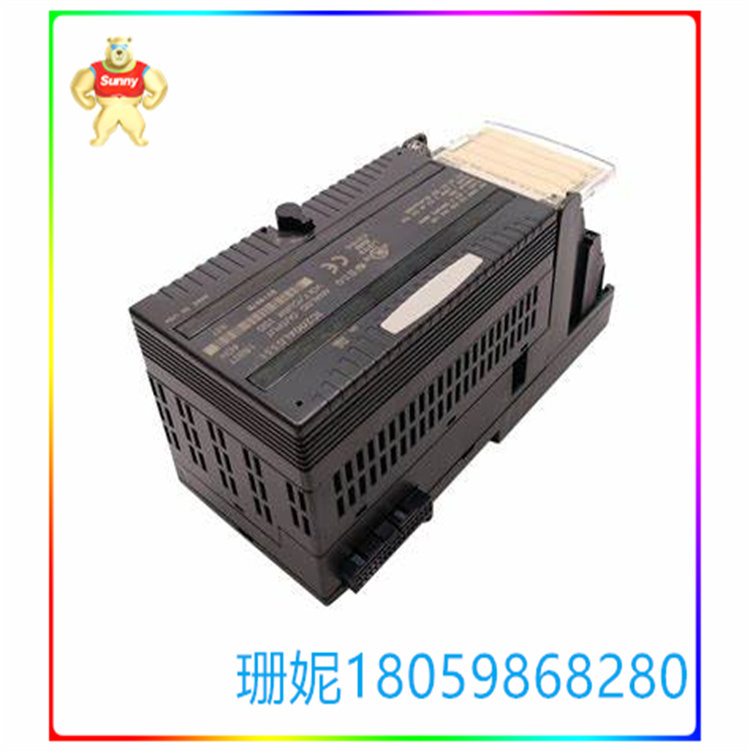

IC200ALG331  I/O 平台的模拟输出模块 电流可配置模块

【产品详情】

技术规格

不。输入数量： 4 隔离

电压范围： -10 至 +10 伏直流电

电流范围： 4 - 20 毫安

更新速率： 7 毫秒

LED指示灯： FLD 压水堆，OK

功耗： 15 mA（来自+5V总线）

IC200ALG331是 VersaMax I/O 平台的模拟输出模块，该平台是紧凑、多功能和可扩展的分布式 I/O 模块。该部件号代表一个 16 位电压和电流可配置模块，具有四 （4） 个独立隔离的输出通道。该模块用于驱动和调节最终控制元件 （FCE），例如用于流量控制的控制阀、用于电机速度和扭矩控制的变频驱动器 （VFD）、设施中的阻尼器和百叶窗以及 HVAC 应用以及配备定位器的其他设备。该模块还可用于中继模拟信号，该信号可能是可编程逻辑控制器 （PLC） 逻辑内连续计算的结果，由面板仪表显示并由数据记录器记录。它还可用于与信号隔离器或信号分配器连接，或将参考信号级联到另一个单环路控制器或 PLC，以实现更复杂的控制器架构，例如级联控制。

该IC200ALG331具有可通过软件配置的输出通道，以生成 +/- 10 VDC 或 4-20 mA 输出信号。每个通道的最大更新速率为 7 ms，满量程的最大精度为 +/- 0.1%。每个通道还能够配置和检测高/下限、过/欠量程、开路、现场电源丢失、非易失性存储器故障，以及单独分配输出行为以响应 PLC 停止或模块错误，例如保持最后状态或降频至零 （0），也可以修改。由于IC200ALG331是完全软件可配置的，因此无需将 Termina 跳线安装到此模块即可设置操作模式。

GE IC200ALG331模块是一个 16 位模拟输出模块。它配备了 4 个隔离通道。它是 GE Fanuc 的 Versamax 模块系列的一部分。该模块的主要功能是一次控制多个模拟设备。只需使用软件即可轻松配置该模块。此输出模块变体中没有跳线或开关。该模块的工作电压范围为 -10 至 10 伏直流电。该模块的额定电流为 4 至 20 毫安。模拟输出模块在 7 毫秒的时间内自我更新。它总共消耗 15 毫安的电流，来自 5 伏母线，

IC200ALG331输出模块的正面配有 LED 指示灯。它具有 FLD PWR 和 OK LED 指示灯。它具有 16 位转换器分辨率，并具有高精度的工厂校准。IC200ALG331输出模块为智能模块。它具有诊断功能，并支持每通道缩放。该模块一次能够从系统接收多达 4 个字的模拟输出数据。用户输入到逻辑的隔离为 250 伏连续，1500 伏交流输入对地 1 分钟。此输出模块型号不会发生热降额。IC200ALG331输出模块能够指出模块启动和运行过程中的断线情况、现场电源丢失、内存故障和其他不同事件。该模块带有可配置的警报，可以针对不同的事件进行设置。

IC200ALG331  I/O 平台的模拟输出模块 电流可配置模块

【英文介绍】

Technical specification

Nooooo. Number of inputs: 4 Isolation

Voltage range: -10 to +10 volts DC

Current range: 4-20 MA

Update rate: 7 ms

LED indicator: FLD PWR, OK

Power consumption: 15 mA (from +5V bus)

The IC200ALG331 is an analog output module for the VersaMax I/O platform, a compact, versatile and scalable distributed I/O module. The part number represents a 16-bit voltage and current configurable module with four (4) independently isolated output channels. The module is used to drive and regulate final control elements (FCE), such as control valves for flow control, variable frequency drivers (VFDS) for motor speed and torque control, dampers and shutters in facilities, as well as HVAC applications and other devices equipped with positioners. The module can also be used to relay analog signals that may be the result of continuous calculations within the logic of a programmable logic controller (PLC), displayed by a panel meter and recorded by a data logger. It can also be used to connect to a signal isolator or signal splitter, or to cascade a reference signal to another single-loop controller or PLC for more complex controller architectures, such as cascade control.

The IC200ALG331 has a software-configurable output channel to generate a +/ -10 VDC or 4-20 mA output signal. The maximum update rate per channel is 7 ms and the maximum accuracy at full scale is +/ -0.1%. Each channel is also capable of configuring and detecting high/low limit, over/under ranges, open circuit, field power loss, non-volatile memory failures, and individually assigning output behavior in response to PLC stops or module errors, such as holding the last state or downclocking to zero (0), which can also be modified. Since IC200ALG331 is fully software configurable, there is no need to install the Termina jumper to this module to set the operating mode.

The GE IC200ALG331 module is a 16-bit analog output module. It is equipped with 4 isolation channels. It is part of GE Fanuc's Versamax module family. The main function of this module is to control multiple analog devices at one time. The module can be easily configured using only software. There are no jumpers or switches in this output module variant. The module operates in a voltage range of -10 to 10 volts DC. The module is rated from 4 to 20 mA. The analog output module updates itself in 7 milliseconds. It consumes a total of 15 milliamps of current from the 5 volt bus,

The front of the IC200ALG331 output module is equipped with an LED indicator. It features FLD PWR and OK LED indicators. It has a 16-bit converter resolution and has high-precision factory calibration. The IC200ALG331 output module is an intelligent module. It has diagnostic capabilities and supports per-channel scaling. The module is capable of receiving up to 4 words of analog output data from the system at a time. User input to the logical isolation of 250 volts continuous, 1500 volts AC input to ground for 1 minute. This output module model does not suffer heat derating. The IC200ALG331 output module is able to indicate disconnections, field power loss, memory failures, and other different events during module startup and operation. The module comes with configurable alerts that can be set for different events.
