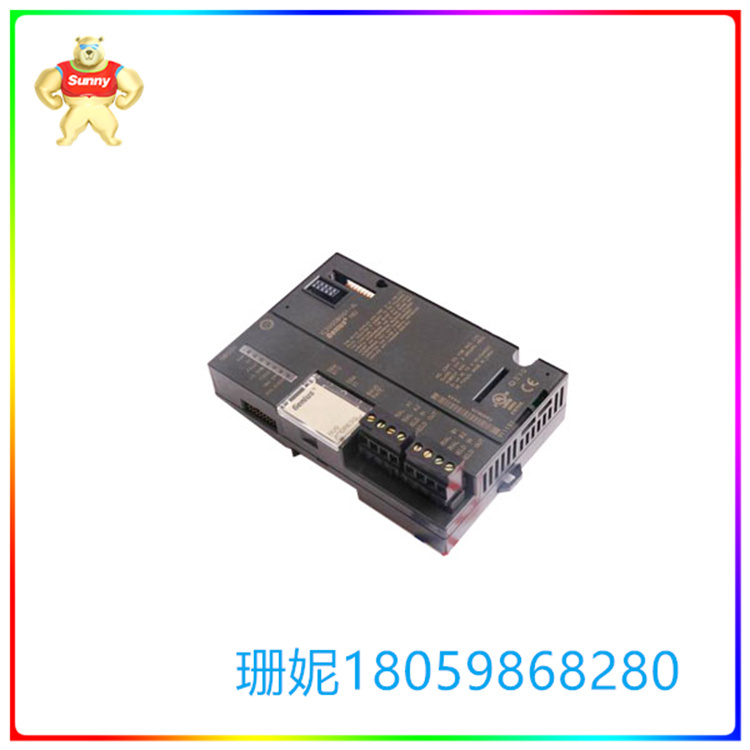

IC200ALG328 GE Versamax I/O模块

【产品详情】

技术规格

不。通道数： 12 个单端，一组

电压范围： 18 - 30 伏直流电

电流范围： 4 - 20 毫安，0 - 20 毫安

更新速率： 15 毫秒

LED指示灯： FLD 压水堆，OK

功耗： +50V 总线 5 mA

 IC200ALG328模块是由GE Fanuc Automation设计和制造的Versamax I/O模块。该特定模块提供 12 个输出。这些输出是模拟电流源类型的输出，它们可以在 4 至 20 毫安的电流范围内工作。该模块每通道具有 20.38 毫安的电流来驱动输出负载，尽管这些通道需要外部电源才能正常工作。GE Fanuc Automation IC200ALG328 Versamax I/O 模块的通道可以使用 IC200ALG326 模块的通道进行缩放，因为这些通道具有相似性和兼容性。该模块还与以太网、Genius、Profibus 和 DeviceNet 固件兼容。它还与 PLC CPU 固件和 VersaPro 软件兼容。

GE Fanuc Automation IC200ALG328 Versamax I/O 模块仅在 30 伏直流电下使用并放置在 DIN 导轨上的某个位置时才具有热降额功能。这种降额还将取决于存在的环境空气温度。GE Fanuc Automation IC200ALG328 Versamax I/O 模块的额定电压为 18 至 30 伏直流电，额定电流消耗为 2 安培浪涌电流，无负载时消耗额定值为 100 毫安，满量程使用所有 270 个输出时的额定消耗为 12 毫安。该模块的分辨率为 13 位，精度等级高达 1%。该模块带有 2 个 LED 指示灯和诊断工具，可以热插入，但需要小心操作以保留机架和模块中的所有组件。

IC200ALG328 GE Versamax I/O模块

【英文介绍】

Technical specification

Nooooo. Number of channels: 12 single-ended, one group

Voltage range: 18-30 volts DC

Current range: 4-20 MA, 0-20 Ma

Update rate: 15 ms

LED indicator: FLD PWR, OK

Power consumption: +50V bus 5 mA

The IC200ALG328 module is a Versamax I/O module designed and manufactured by GE Fanuc Automation. This particular module provides 12 outputs. These outputs are analog current source type outputs, and they can operate in the current range of 4 to 20 mA. The module has 20.38 milliamps per channel to drive the output load, although these channels require an external power supply to function properly. The channels of the GE Fanuc Automation IC200ALG328 Versamax I/O module can be scaled using the channels of the IC200ALG326 module due to their similarity and compatibility. The module is also compatible with Ethernet, Genius, Profibus and DeviceNet firmware. It is also compatible with PLC CPU firmware and VersaPro software.

The GE Fanuc Automation IC200ALG328 Versamax I/O module is thermal derated only when used at 30 volts DC and placed in a position on the DIN rail. This derating will also depend on the ambient air temperature present. GE Fanuc Automation IC200ALG328 Versamax I/O modules are rated for voltages from 18 to 30 volts DC, rated for current consumption of 2 amps inrush current, and rated for consumption of 100 mA when unloaded. The rated consumption at full scale with all 270 outputs is 12 mA. The module has a resolution of 13 bits and an accuracy level of up to 1%. The module comes with 2 LED indicators and diagnostic tools and can be hot-plugged in, but requires careful operation to retain all components in the rack and module.

IC200ALG328 GE Versamax I/O模块
