lC698PSD300 高容量电源单元  具有诊断功能

【产品详情】

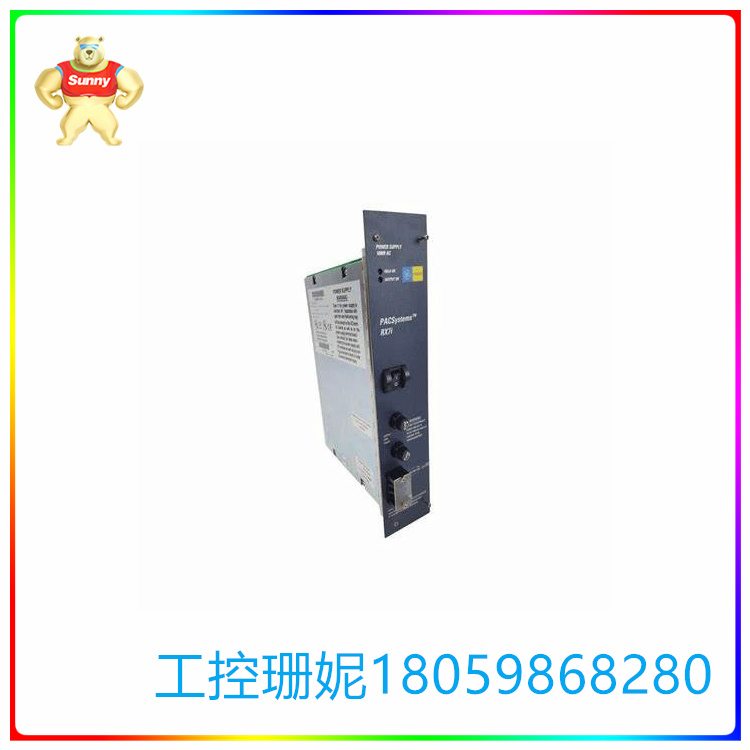

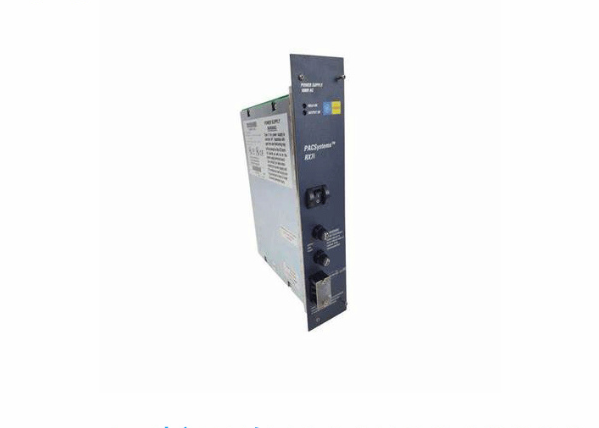

lC698PSD300GE IC698PSD300模块是GE Fanuc在Rx7i PACsystem系列中制造的电源模块。它的额定功率为 300 瓦，额定电压为 24 伏直流电。它是一种高容量电源单元，与 Rx7i PACsystem 系列 PLC 组件兼容。电源单元的浪涌电流最大为 100 安培。从输入到所有输出的隔离是 250 伏交流连续，1500 分钟为 1 伏交流。该电源具有大量功能。它是智能的，并具有多项安全功能。它具有诊断功能，可以在操作过程中跟踪问题和问题。它提供过热、过流和不同故障条件的保护。

IC698PSD300模块配备 3 个 LED，可显示不同的操作更新。这些 LED 与电源中的气流传感器一起工作。可以使用电源上的跳线启用或禁用气流传感器。电源模块可以很容易地安装在左侧机架的插槽 0 中。IC698PSD300模块的环境温度是通过使用安装在机架上的风扇的强制风冷方法来保持的。环境温度应设置在 0 到 60 摄氏度之间，以便以 70 CFM 的风冷额定值全面运行。为保护设备免受系统噪音的影响，应将其正确接地并固定安装螺钉。电源模块的正面有铜输入端子。

问题：什么是IC698PSD300？答：IC698PSD300 是 GE Fanuc RX24i 系列的多用途 300 VDC、7 瓦电源。

问：IC698PSD300在什么输入电压源范围内工作？答：此电源在 18 至 30 VDC 的输入电压源范围内工作。

问： 此电源有哪 3 个输出？ 答：

+5 VDC @ 50 安培

+12 VDC @ 10 安培

-12 VDC @ 4 安培

问题：IC698PSD300还提供哪些服务？ 答： 该模块为 RX7i 背板上的模块提供逻辑电平排序信号。

问：IC698PSD300提供什么类型的保护？ 答： 该电源为过流、过热和过压故障情况提供保护。

问：IC698PSD300有什么独特之处？ 答： 该模块提供高达 300W 的总输出功率，但需要强制风冷，由安装在机架底部的风扇托盘提供。

问：3 个 LED 表示什么？ 答：

FIELD OK（绿色）。当此 LED 亮起时，表示正在其规格范围内供电。

输出正常（绿色）。当此 LED 亮起时，表示所有 3 个 DC 通道都在其规格范围内运行。如果 3 个直流输出通道中的任何一个出现故障，则关闭。

OVER TEMP（红色）。当此 LED 亮起时，表示超过临界供气温度，或者气流传感器检测到气流停止。

问：如果我的IC698PSD300不能正常工作，我该怎么办？ 答： 您的IC698PSD300可能需要维修。

有关 GE Fanuc RX698i 系列的 IC300PSD24 多用途、300 VDC、7 瓦电源的更多信息，请参阅数据表用户手册。

lC698PSD300 高容量电源单元  具有诊断功能

【英文介绍】

lC698PSD300GE The IC698PSD300 module is a power module manufactured by GE Fanuc in the Rx7i PACsystem series. It has a power rating of 300 watts and a rated voltage of 24 volts DC. It is a high capacity power supply unit compatible with Rx7i PACsystem series PLC components. The inrush current of the power supply unit is up to 100 amps. The isolation from the input to all outputs is 250 volts AC continuously and 1 volt AC for 1500 minutes. The power supply has a large number of functions. It is smart and has several security features. It has diagnostic capabilities to track issues and problems during operation. It provides protection against overheat, overcurrent and different failure conditions.

The IC698PSD300 module is equipped with 3 leds to display different operational updates. These leds work with airflow sensors in the power supply. The air flow sensor can be enabled or disabled using the jumper on the power supply. The power module can be easily installed in slot 0 of the left rack. The ambient temperature of the IC698PSD300 module is maintained by a forced air cooling method using a fan mounted on the rack. The ambient temperature should be set between 0 and 60 degrees Celsius for full operation at an air-cooled rating of 70 CFM. To protect the device from system noise, it should be properly grounded and secured with mounting screws. The front side of the power module has copper input terminals.

Question: What is IC698PSD300? A: The IC698PSD300 is a multi-purpose 300 VDC, 7 watt power supply from the GE Fanuc RX24i series.

Q: What input voltage source range does the IC698PSD300 operate in? A: This power supply operates in the input voltage source range of 18 to 30 VDC.

Q: What are the 3 outputs of this power supply? A:

+5 VDC @ 50 amps

+12 VDC @ 10 amps

-12 VDC @ 4 amps

Q: What other services does the IC698PSD300 provide? A: This module provides a logic level ordering signal for the module on the RX7i backplane.

Q: What type of protection does the IC698PSD300 provide? A: The power supply provides protection against overcurrent, overheat and overvoltage failures.

Q: What is unique about the IC698PSD300? A: The module provides a total output power of up to 300W, but requires forced air cooling, provided by a fan tray mounted on the bottom of the rack.

Q: What do three leds mean? A:

FIELD OK (green). When this LED lights up, it means that power is being supplied within its specifications.

The output is normal (green). When this LED lights up, it means that all 3 DC channels are operating within their specifications. If any of the three DC output channels fails, they are closed.

OVER TEMP (red). When this LED lights up, it indicates that the critical gas supply temperature has been exceeded, or the gas flow sensor has detected a stop in the flow.

Q: What should I do if my IC698PSD300 is not working properly? A: Your IC698PSD300 may need repair.

For more information about the GE Fanuc RX698i series IC300PSD24 multi-purpose, 300 VDC, 7 Watt power supply, please refer to the Datasheet User manual.
