IC698ETM001 以太网接口模块 提供高性能以太网通信

【产品详情】

产品描述

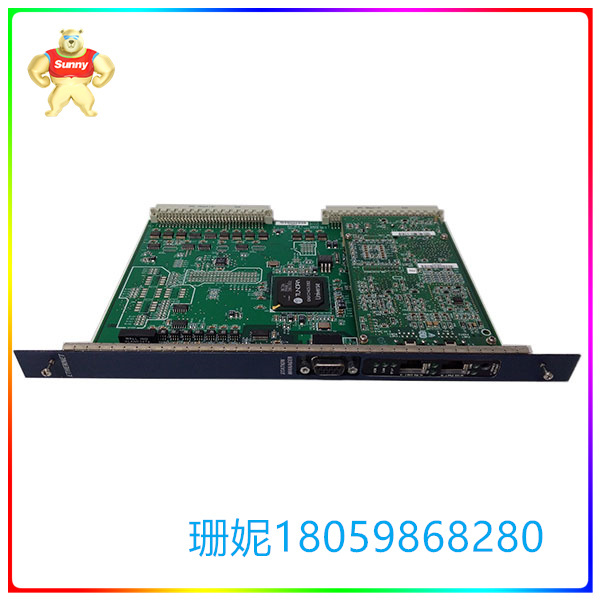

IC698ETM001是GE Fanuc制造的以太网接口模块，用于为RX7i控制系统提供高性能以太网通信。它的以太网处理速度为 200 MHz，电源的工作电压为 +5 VDC，最大电流消耗为 1.5 （+5 VDC）。该IC698ETM001还提供与其他GE智能平台控制系统和主机的TCP/IP通信，以及用于与GE智能平台控制器进行以太网通信的软件。

IC698ETM001的部分功能包括提供完整的配置和编程服务，以及通过以太网全球数据（EGD）进行间歇性数据交换。该模块提供 EGD Class 2 功能或命令以及可靠数据服务 （RDS），以确保正确传达命令消息。该模块配备了全面的站点管理以及诊断工具和扩展连接。由于内部网络交换机，全双工端口提供自动协商的网络速度和交叉检测。

IC698ETM001模块的冗余 IP 寻址允许将单个 IP 地址分配给两个不同控制器中的两个以太网模块。除了每个接口的原始 IP 地址之外，还会配置该地址。主用单元以太网接口是唯一可以使用冗余 IP 的接口。注意：用户必须确认已配置网关IP地址。

闪存将协议存储在以太网接口中，并使用 CPU 串行端口方便地升级。 可以通过路由器与远程控制器和其他节点进行通信。该模块配有状态 LED，以协助操作和故障排除。

IC698ETM001以太网接口模块属于GE Fanuc Versamax系列产品。它可用于为RX7i系列控制系统提供高效和高性能的以太网通信设施。该模块的一些重要功能包括 TCP/IP 通信服务、SRTP 客户端支持、与 IEEE 和以太网 LAN 端口的扩展连接、编程和配置服务、定期数据交换以及 EGD 2 类功能等级。IC698ETM001 以太网接口模块带有 5 个 LED 指示灯，用于指示模块的运行和通信状态。以太网接口模块的通信协议存储在闪存中，可通过CPU串口升级。

IC698ETM001以太网接口模块的以太网处理器速度为 200 兆赫兹。其额定工作电压为 5 伏直流电，电流消耗为 1.5 安培。该模块提供全面的站点管理和诊断工具，可提高性能并轻松排除故障。其双工模式、网络速度和交叉检测功能由 2 个全双工 RJ-45 连接器处理。模块的安装方式为机架安装。它允许以太网节点的菊花链。IC698ETM001模块的工作温度范围为 0 至 60 摄氏度。它有 2 个自动感应屏蔽以太网端口，带有一个 8 针母头 RJ-45 连接器。该模块可直接连接到Base T双绞线网络集线器，无需外部收发器。它通过路由器与节点和遥控器建立通信。该设备的大约重量为 0.34 千克。

IC698ETM001 以太网接口模块 提供高性能以太网通信

【英文介绍】

Product description

The IC698ETM001 is an Ethernet interface module manufactured by GE Fanuc to provide high-performance Ethernet communication for RX7i control systems. It has an Ethernet processing speed of 200 MHz, a power supply operating voltage of +5 VDC and a maximum current consumption of 1.5 (+5 VDC). The IC698ETM001 also provides TCP/IP communication with other GE Intelligent Platform control systems and hosts, as well as software for Ethernet communication with GE Intelligent Platform controllers.

Some of the capabilities of the IC698ETM001 include the provision of complete configuration and programming services, as well as intermittent data exchange over Ethernet Global Data (EGD). This module provides EGD Class 2 functions or commands and Reliable Data Services (RDS) to ensure that command messages are properly communicated. The module is equipped with comprehensive site management as well as diagnostic tools and extended connectivity. Thanks to the internal network switch, the full duplex port provides auto-negotiated network speeds and cross detection.

The redundant IP addressing of the IC698ETM001 module allows a single IP address to be assigned to two Ethernet modules in two different controllers. This address is configured in addition to the original IP address of each interface. The master unit Ethernet interface is the only interface that can use redundant IP. Note: The user must confirm that the gateway IP address has been configured.

Flash storage stores the protocol in the Ethernet interface and uses the CPU serial port for easy upgrades. You can communicate with remote controllers and other nodes through a router. The module is equipped with status leds to assist in operation and troubleshooting.

The IC698ETM001 Ethernet interface module belongs to the GE Fanuc Versamax series. It can be used to provide efficient and high-performance Ethernet communication facilities for RX7i series control systems. Some of the key features of this module include TCP/IP communication services, SRTP client support, extended connectivity to IEEE and Ethernet LAN ports, programming and configuration services, periodic data exchange, and EGD Class 2 functionality levels. The IC698ETM001 Ethernet interface module has 5 LED indicators to indicate the operation and communication status of the module. The communication protocol of the Ethernet interface module is stored in the flash memory and can be upgraded through the CPU serial port.

The IC698ETM001 Ethernet interface module has an Ethernet processor speed of 200 MHZ. Its rated operating voltage is 5 volts DC and current consumption is 1.5 amps. This module provides comprehensive site management and diagnostic tools for improved performance and easy troubleshooting. Its duplex mode, network speed, and cross-detection functions are handled by two full-duplex RJ-45 connectors. The module is mounted on a rack. It allows for daisy-chaining of Ethernet nodes. The IC698ETM001 module operates in a temperature range of 0 to 60 degrees Celsius. It has 2 auto-sensing shielded Ethernet ports with an 8-pin female RJ-45 connector. The module can be connected directly to the Base T twisted pair network hub without the need for an external transceiver. It establishes communication with the node and remote control through the router. The approximate weight of the device is 0.34 kg.
