IC698CRE030  具有内置以太网端口 具有自动感应开关

【产品详情】

技术规格

处理速度： 600兆赫

CPU内存： 64 兆字节

浮点： 是的

串口： 3

串行协议： Modbus RTU 从站、SNP、串行 I/O

嵌入式通信： RS-232、RS-486。以太网接口

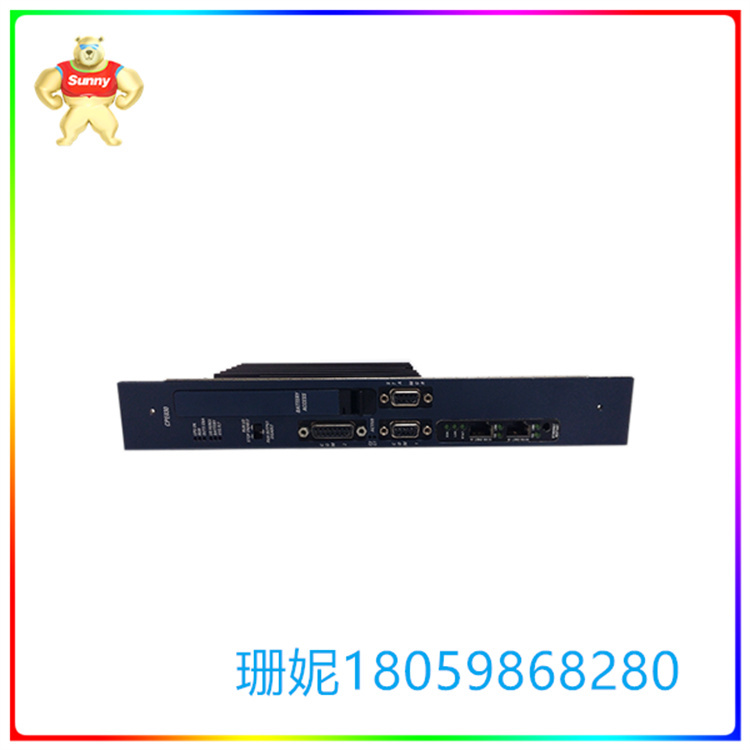

IC698CRE030 CPU 是额定频率为 600 兆赫兹的 Pentium-M 冗余 CPU。它由 GE Fanuc 在 GE RX7i PACSystem 系列可编程逻辑控制器组件中制造。IC698CRE030 CPU 可以安装在 RX64i PLC 的 VME7 背板中。该设备具有内置以太网端口，额定通信速度为 10 或 100 mb，由两个 RJ-45 端口的双端口组成。该以太网端口具有自动感应开关，可用于在线监控以及上传和下载数据。IC698CRE030 CPU 上的以太网接口允许用户从 Web 浏览器监控 PLC，并且不需要集线器或机架交换机即可正常运行。IC698CRE030冗余 CPU 具有 64 MB 的用户内存。

除了双RJ-45以太网端口外，GE Fanuc IC698CRE030 Pentium-M冗余CPU还具有另一个以太网端口，即用于站点管理的RS-232串行端口和2个用于RS-232通信和RS-485通信的串行端口。所有这 3 个串行端口都是隔离的。RS-232 通信端口具有指示端动状态的 LED，其连接器类型为母 9 针 D-sub 连接器。此端口也称为 DCE 或数据通信设备端口，只需要一根直通电缆即可进行连接。IC485CRE698 CPU 上的 RS-030 通信端口也是 DCE 端口，但它需要屏蔽电缆进行连接。站管理器端口使用直通电缆进行 RS-232 连接，就像普通的 RS-232 电缆一样。

IC698CRE030  具有内置以太网端口 具有自动感应开关

【英文介绍】

Technical specification

Processing speed: 600 MHZ

CPU memory: 64 megabytes

Floating point: Yes

Serial port: 3

Serial protocol: Modbus RTU slave station, SNP, serial I/O

Embedded communication: RS-232, RS-486. Ethernet interface

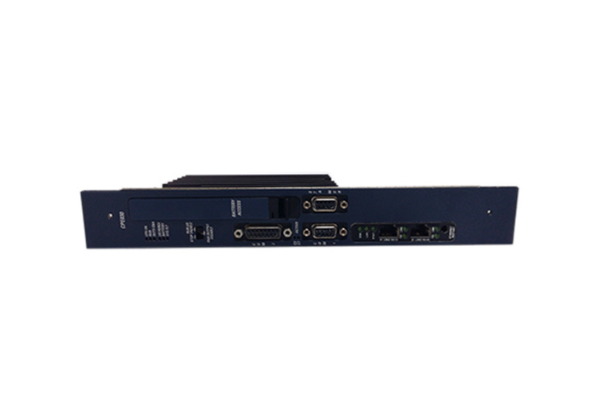

The IC698CRE030 CPU is a Pentium-M redundant CPU rated at 600 MHZ. It is manufactured by GE Fanuc in the GE RX7i PACSystem family of programmable logic controller components. The IC698CRE030 CPU can be installed in the VME7 backplane of the RX64i PLC. The device has a built-in Ethernet port with a rated communication speed of 10 or 100 mb and consists of a dual port of two RJ-45 ports. The Ethernet port has an automatic sensing switch that can be used for online monitoring as well as uploading and downloading data. The Ethernet interface on the IC698CRE030 CPU allows users to monitor the PLC from a Web browser and does not require a hub or rack switch to function properly. IC698CRE030 Redundant CPU with 64 MB of user memory.

In addition to the dual RJ-45 Ethernet ports, the GE Fanuc IC698CRE030 Pentium-M redundant CPU has another Ethernet port, namely the RS-232 serial port for site management and two serial ports for RS-232 communication and RS-485 communication. All three serial ports are isolated. The RS-232 communication port has an LED indicating the status of the end, and its connector type is a female 9-pin D-sub connector. This port is also known as a DCE or data communication device port and requires only a straight-through cable to connect. The RS-030 communication port on the IC485CRE698 CPU is also a DCE port, but it requires a shielded cable for connection. The station manager port uses a pass-through cable for RS-232 connections, just like a regular RS-232 cable.

IC698CRE030  具有内置以太网端口 具有自动感应开关
