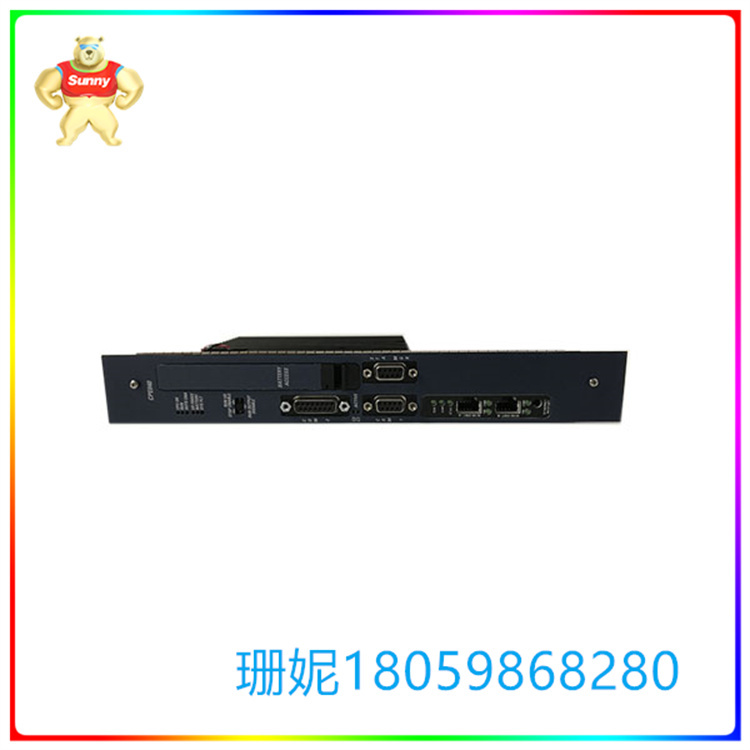

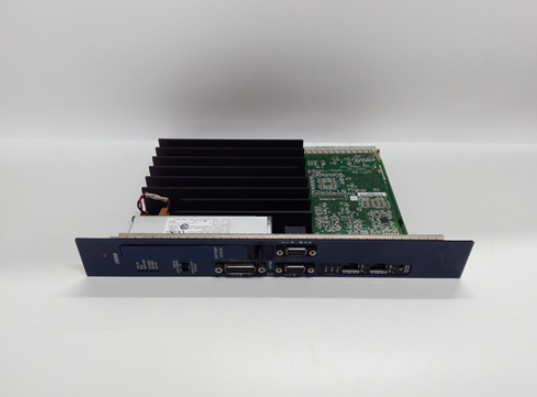

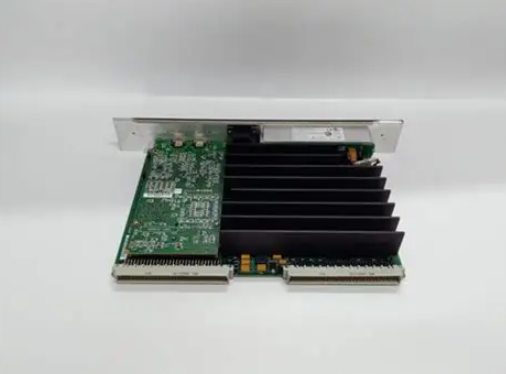

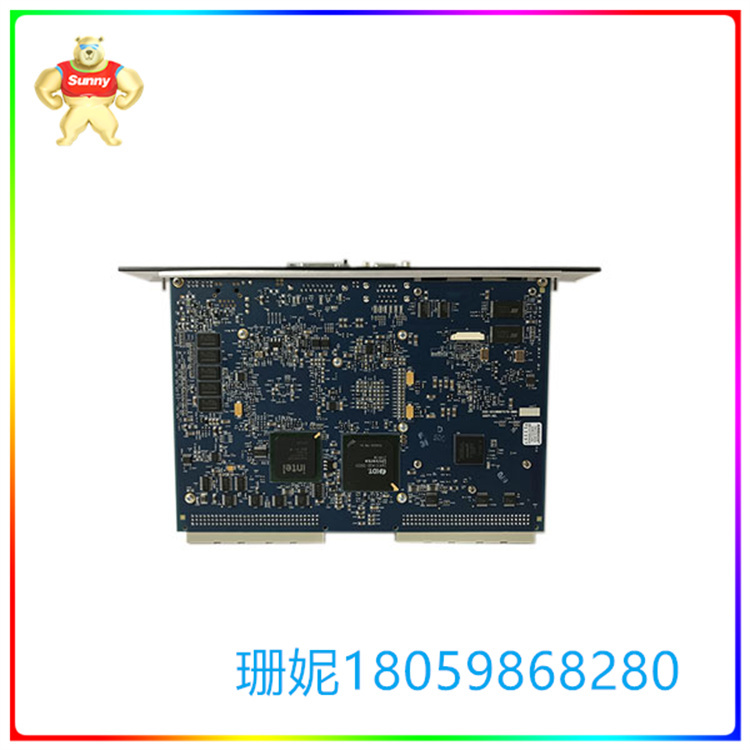

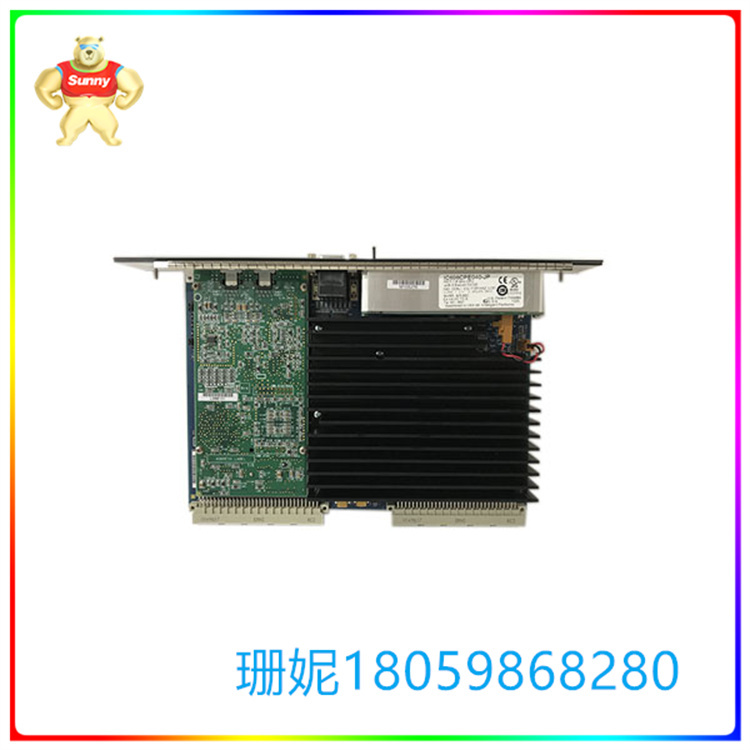

GE IC698CPE040 中央处理器 应用程序执行速度

【产品详情】

技术规格

处理速度： 1.8千兆赫

CPU内存： 64 兆字节

浮点： 是的

串口： 3

串行协议： Modbus RTU 从站、SNP、串行 I/O

嵌入式通信： RS-232、RS-486。以太网接口

IC698CPE040 CPU 或中央处理器由 GE Fanuc 在 GE RX7i PACSystem 产品线中设计和制造，并且功能尽可能强大。GE IC698CPE040 CPU 以其快速的程序和应用程序执行速度、相当大的内存容量以及易于升级的能力而著称。该 CPU 可以长期使用，因为它可以适应升级，使其能够跟上新技术和新的工业应用要求。IC698CPE040 CPU 设计用于 RX7i PACSystem PLC 或可编程逻辑控制器。IC698CPE040 CPU 的负载要求为 6.8 安培（5 伏直流电）和 0.003 安培（12 伏直流电和 -12 伏直流电）。

GE Fanuc RX7i PACSystem IC698CPE040 CPU 的规格包括 64 MB 的用户内存和 1800 兆赫的额定处理器速度。此 CPU 是 Pentium-M CPU。它包括 3 个串行端口，这些端口都是独立和隔离的，都可以从 CPU 前面的连接器访问。其中两个独立端口可用于对 CPU 进行固件升级或与外部设备创建串行接口。第三个端口是以太网接口的工作站管理端口。IC698CPE040 CPU 上的第一个固件端口是 RS-232 兼容端口，带有指示灯，用于指示该端口的活动。第二个固件端口与 RS-485 兼容，需要屏蔽电缆进行连接。第三个端口与第一个固件端口一样兼容 RS-232。

客户问答

问题：什么是IC698CPE040？答：IC698CPE040是GE Fanuc RX1i系列的8.7 GHz中央处理器，带有Intel Pentium-M微处理器。

问题：IC698CPE040做什么？ 答： 该 CPU 可用于对机器、流程和物料搬运系统进行实时控制。

问：IC698CPE040如何与程序员沟通？ 答： CPU 通过内部以太网端口或串行端口进行通信。

问：IC698CPE040如何与 I/O 和智能选件模块通信？ 答： CPU 使用 VME64 标准格式通过机架安装背板进行通信。

问：当我打开IC698CPE040电源时会发生什么？ 答： 它将进行全面的自我诊断检查。当 CPU 通电时，LED 会按特定顺序打开和关闭。请参阅安装手册。

问题：自我诊断检查的最终结果应该是什么？ 答： 在初始化过程中，EOK LED 灯闪烁，然后在初始化完成后亮起。

问：如何避免RAM内存丢失？ 答： 日常维护程序应包括定期更换 CPU 的IC698ACC701锂电池组。电池保持程序和数据存储器，并在断电时操作日历时钟。

问：如果我没有开灯或 CPU 无法正常工作 - 这意味着什么？ 答： 这意味着您的处理器有问题，需要维修甚至更换。

GE IC698CPE040 中央处理器 应用程序执行速度

【英文介绍】

Technical specification

Processing speed: 1.8 GHZ

CPU memory: 64 megabytes

Floating point: Yes

Serial port: 3

Serial protocol: Modbus RTU slave station, SNP, serial I/O

Embedded communication: RS-232, RS-486. Ethernet interface

The IC698CPE040 CPU or central processing unit is designed and manufactured by GE Fanuc in the GE RX7i PACSystem product line and is as powerful as possible. The GE IC698CPE040 CPU is known for its fast program and application execution speed, considerable memory capacity, and the ability to upgrade easily. The CPU can be used for a long time because it can accommodate upgrades, allowing it to keep up with new technologies and new industrial application requirements. The IC698CPE040 CPU is designed for use with an RX7i PACSystem PLC or programmable logic controller. The load requirements for the IC698CPE040 CPU are 6.8 amps (5 volts DC) and 0.003 amps (12 volts DC and -12 volts DC).

The specifications of the GE Fanuc RX7i PACSystem IC698CPE040 CPU include 64 MB of user memory and a rated processor speed of 1800 MHZ. This CPU is a Pentium-M CPU. It consists of 3 serial ports, all of which are independent and isolated and all accessible from the connector on the front of the CPU. Two of these separate ports can be used to perform firmware upgrades to the CPU or to create serial interfaces with external devices. The third port is the workstation management port of the Ethernet interface. The first firmware port on the IC698CPE040 CPU is an RS-232 compatible port with an indicator to indicate the activity of that port. The second firmware port is compatible with RS-485 and requires a shielded cable for connection. The third port is as compatible with RS-232 as the first firmware port.

Customer question and answer

Question: What is IC698CPE040? A: The IC698CPE040 is an 8.7GHz CPU from the GE Fanuc RX1i series with an Intel Pentium-M microprocessor.

Question: What does IC698CPE040 do? A: The CPU can be used for real-time control of machines, processes and material handling systems.

Q: How does IC698CPE040 communicate with programmers? A: cpus communicate via internal Ethernet ports or serial ports.

Q: How does the IC698CPE040 communicate with the I/O and Smart options modules? A: The CPU uses the VME64 standard format to communicate through the rack-mounted backplane.

Q: What happens when I power on the IC698CPE040? A: It will perform a full self-diagnostic test. When the CPU is powered on, the leds turn on and off in a specific order. Refer to the installation manual.

Question: What should be the final result of the self-diagnostic test? A: During initialization, the EOK LED light flashes and then lights up when initialization is complete.

Q: How can I avoid RAM memory loss? A: Routine maintenance procedures should include regular replacement of the CPU's IC698ACC701 lithium battery pack. The battery holds program and data memory and operates the calendar clock in case of power outages.

Q: If I don't turn on the lights or the CPU doesn't work properly - what does that mean? A: This means that your processor has a problem and needs to be repaired or even replaced.
