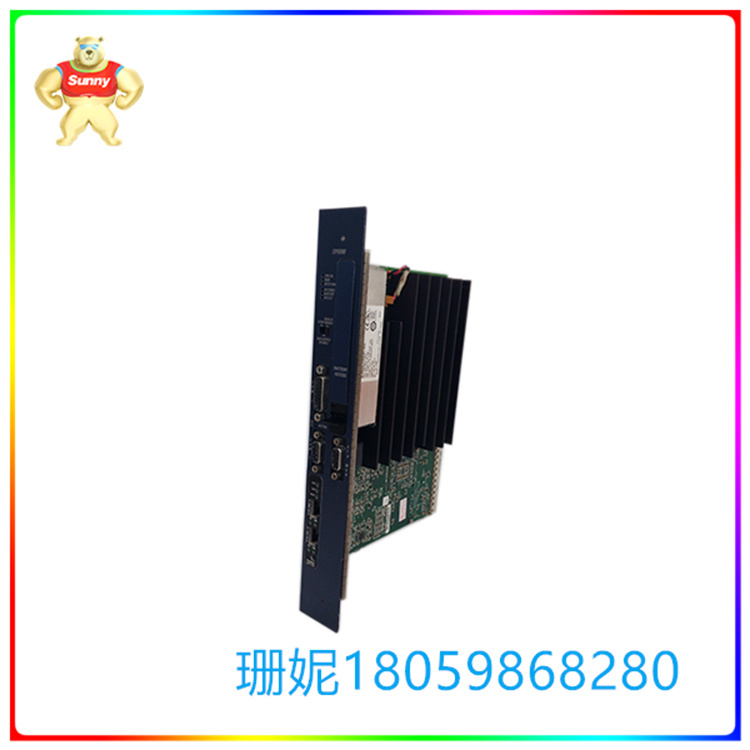

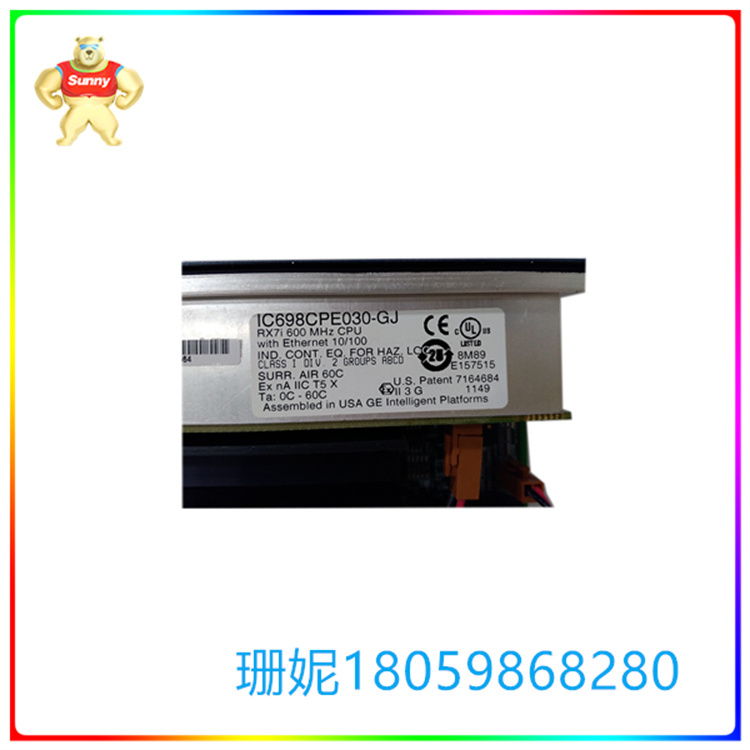

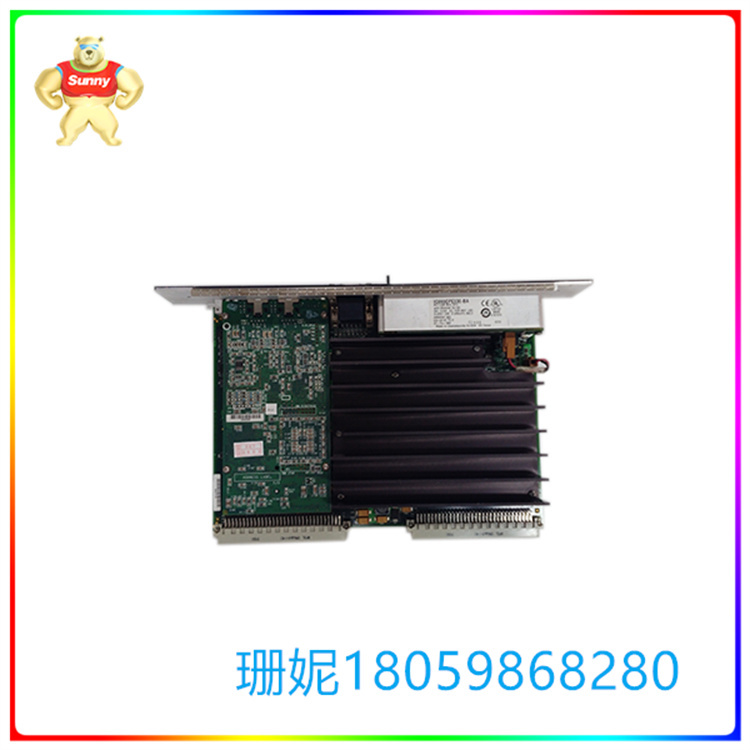

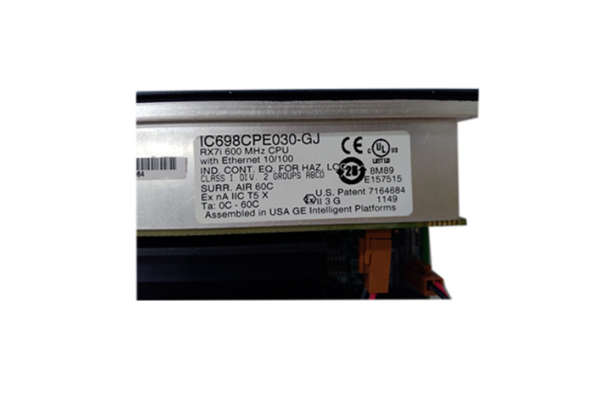

IC698CPE030 以太网接口 中央处理器 计算机级微处理器

【产品详情】

技术规格

处理速度： 600兆赫

CPU内存： 64 兆字节

浮点： 是的

串口： 3

串行协议： Modbus RTU 从站、SNP、串行 I/O

嵌入式通信： RS-232、RS-486。以太网接口

 该IC698CPE030是可编程自动化控制器 （PAC） 的 PACSystem RX7i 中最先进的中央处理器 （CPU） 之一。该 CPU 旨在满足行业的现代自动化、连接和集成要求。它以前由 GE 智能平台 （GE IP） 制造，但随着最近被艾默生自动化收购，PACSystem RX7i 现在是后者的一部分。

IC698CPE030 处理器安装有计算机级微处理器，即 600MHz Pentium-M 微处理器，具有 64 MB 用户内存和 64 MB 用户闪存。它的布尔执行速度为每 0 个布尔触点/线圈 069.1000ms。该 CPU 最多可容纳 32 K 位的离散 I/O 和 32 K 字的模拟 I/O，最多可将 512 个程序块下载到该 CPU，其中每个程序块最多可以有 128 KB 的内存。

该IC698CPE030还具有两 （2） 个以太网通信端口，能够自动感应网络传输速度，并可配置为半双工和全双工操作模式。内置的 Web 服务器和文件传输协议 （FTP） 功能可通过这些以太网端口访问，允许用户远程监控和配置处理器。除了内置以太网端口外，

该 CPU 还具有一 （1） 个 RS232 端口;一 （1） 个 RS485 端口和一 （1） 个站点管理器端口。这些通信接口支持SRTP、Modbus TCP服务器和客户端、用于基于以太网的通信的以太网全局数据（EGD）和用于串行通信的Modbus RTU从站、SNP、串行I/O。

GE Fanuc IC698CPE030 PACSystem Rx7i 中央处理器是用于 GE Rx7i 系统的奔腾处理器。与所有 Rx698i CPU 一样，IC030CPE7 CPU 安装在 Rx7i I/O 机架上，并采用 VME64 基本架构，该架构可适应新旧 VME 嵌入式技术，并具有快速的吞吐量等级。IC698CPE030 CPU 配备 600 兆赫兹奔腾 M 处理器和电池供电的 64 兆字节处理器内存，以及电池供电的 64 兆字节用户闪存，用于应用程序和数据存储。IC698CPE030处理器可以执行浮点数学和布尔逻辑功能，高级用户参数可以使用梯形图、结构化文本、功能块图和 C 编程语言进行编程。

GE Fanuc IC698CPE030 CPU 支持 90-70 系列分立和模拟 I/O 模块、通信模块、90-70 系列支持的 VME 模块以及各种编程器和 HMI 模块。IC698CPE030 CPU 的额定电压为 +5、+12 或 -12 V DC，背板电流额定值为 3.4 安培（5 V DC）。IC698CPE030 CPU 具有一个隔离的 RS-485 串行端口、一个 RS-232 串行端口和一个专用的 RS-232 以太网站管理器端口。IC698CPE030 CPU 还具有双嵌入式以太网 （10/100 MB） 端口，可提供以太网全局数据 （EGD） 数据交换、TCP/IP 高速数据传输，支持 Modbus/TCP 服务器、Modbus/TCP 客户端和 SRTP 通道协议，并且可以与编程器和 HMI 设备进行通信。IC698CPE030 CPU 配置了 Proficy Machine Edition （ME） Logic Developer 配置软件版本 4.5 或更高版本，该软件提供了高级应用程序编程环境，并支持通过 Web 服务器和 FTP 连接在 Web 上进行数据监控。

问题：什么是IC698CPE030？答：IC698CPE030是GE Fanuc RX600i系列的7 MHz中央处理器，带有Intel Pentium-M微处理器。

问题：IC698CPE030做什么？ 答： 该 CPU 可用于对机器、流程和物料搬运系统进行实时控制。

问：IC698CPE030如何与程序员沟通？ 答： CPU 通过内部以太网端口或串行端口进行通信。

问：IC698CPE030如何与 I/O 和智能选件模块通信？ 答： CPU 使用 VME64 标准格式通过机架安装背板进行通信。

问：当我打开IC698CPE030电源时会发生什么？ 答： 它将进行全面的自我诊断检查。当 CPU 通电时，LED 会按特定顺序打开和关闭。请参阅安装手册。

问题：自我诊断检查的最终结果应该是什么？ 答： 在初始化过程中，EOK LED 灯闪烁，然后在初始化完成后亮起。

问：如何避免RAM内存丢失？ 答： 日常维护程序应包括定期更换 CPU 的IC698ACC701锂电池组。电池保持程序和数据存储器，并在断电时操作日历时钟。

问：如果我没有开灯或 CPU 无法正常工作 - 这意味着什么？ 答： 这意味着您的处理器有问题，需要维修甚至更换。

IC698CPE030 以太网接口 中央处理器 计算机级微处理器

【英文介绍】

Technical specification

Processing speed: 600 MHZ

CPU memory: 64 megabytes

Floating point: Yes

Serial port: 3

Serial protocol: Modbus RTU slave station, SNP, serial I/O

Embedded communication: RS-232, RS-486. Ethernet interface

The IC698CPE030 is one of the most advanced central processing units (cpus) in the Programmable Automation Controller (PAC) PACSystem RX7i. The CPU is designed to meet the modern automation, connectivity and integration requirements of the industry. It was previously manufactured by GE Intelligent Platforms (GE IP), but with its recent acquisition by Emerson Automation, PACSystem RX7i is now part of the latter.

The IC698CPE030 processor is equipped with a computer-grade microprocessor, namely a 600MHz Pentium-M microprocessor, with 64 MB of user memory and 64 MB of user flash memory. It has a Boolean execution speed of 069.1000ms per 0 Boolean contacts/coils. The CPU can hold up to 32K bits of discrete I/O and 32K words of analog I/O, and up to 512 program blocks can be downloaded to the CPU, where each block can have up to 128 KB of memory.

The IC698CPE030 also features two (2) Ethernet communication ports that automatically sense network transmission speeds and can be configured for both half-duplex and full-duplex operating modes. The built-in Web server and File Transfer Protocol (FTP) capabilities are accessible through these Ethernet ports, allowing users to remotely monitor and configure the processor. In addition to a built-in Ethernet port,

The CPU also has one (1) RS232 port; One (1) RS485 port and one (1) site Manager port. These communication interfaces support SRTP, Modbus TCP servers and clients, Ethernet Global Data (EGD) for Ethernet-based communications, and Modbus RTU slave stations, SNPS, and serial I/O for serial communications.

The GE Fanuc IC698CPE030 PACSystem Rx7i CPU is a Pentium processor for GE Rx7i systems. Like all Rx698i cpus, the IC030CPE7 CPU is mounted on an Rx7i I/O rack and features a VME64 basic architecture that ADAPTS to both old and new VME embedded technologies with fast throughput levels. The IC698CPE030 CPU is equipped with a 600 MHZ Pentium M processor and a battery-powered 64 Megabyte processor memory, as well as a battery-powered 64 Megabyte user flash memory for applications and data storage. The IC698CPE030 processor can perform floating-point math and Boolean logic functions, and advanced user parameters can be programmed using ladder graphs, structured text, function block graphs, and the C programming language.

The GE Fanuc IC698CPE030 CPU supports 90-70 series discrete and analog I/O modules, communication modules, 90-70 series supported VME modules, and a variety of programmers and HMI modules. The IC698CPE030 CPU is rated at +5, +12, or -12 V DC, and the backplane current rating is 3.4 amps (5 V DC). The IC698CPE030 CPU has an isolated RS-485 serial port, an RS-232 serial port, and a dedicated RS-232 Ethernet website manager port. The IC698CPE030 CPU also features dual embedded Ethernet (10/100 MB) ports that provide Ethernet Global Data (EGD) data exchange, TCP/IP high-speed data transfer, and more. The Modbus/TCP server, Modbus/TCP client, and SRTP channel protocols are supported, and can communicate with programmers and HMI devices. The IC698CPE030 CPU is configured with Proficy Machine Edition (ME) Logic Developer configuration software version 4.5 or higher, which provides an advanced application programming environment, It also supports data monitoring on the Web through a Web server and FTP connection.

Question: What is IC698CPE030? A: The IC698CPE030 is a 7 MHz CPU from the GE Fanuc RX600i series with an Intel Pentium-M microprocessor.

Question: What does IC698CPE030 do? A: The CPU can be used for real-time control of machines, processes and material handling systems.

Q: How does IC698CPE030 communicate with programmers? A: cpus communicate via internal Ethernet ports or serial ports.

Q: How does the IC698CPE030 communicate with the I/O and Smart options modules? A: The CPU uses the VME64 standard format to communicate through the rack-mounted backplane.

Q: What happens when I power on IC698CPE030? A: It will perform a full self-diagnostic test. When the CPU is powered on, the leds turn on and off in a specific order. Refer to the installation manual.

Question: What should be the final result of the self-diagnostic test? A: During initialization, the EOK LED light flashes and then lights up when initialization is complete.

Q: How can I avoid RAM memory loss? A: Routine maintenance procedures should include regular replacement of the CPU's IC698ACC701 lithium battery pack. The battery holds program and data memory and operates the calendar clock in case of power outages.

Q: If I don't turn on the lights or the CPU doesn't work properly - what does that mean? A: This means that your processor has a problem and needs to be repaired or even replaced.
