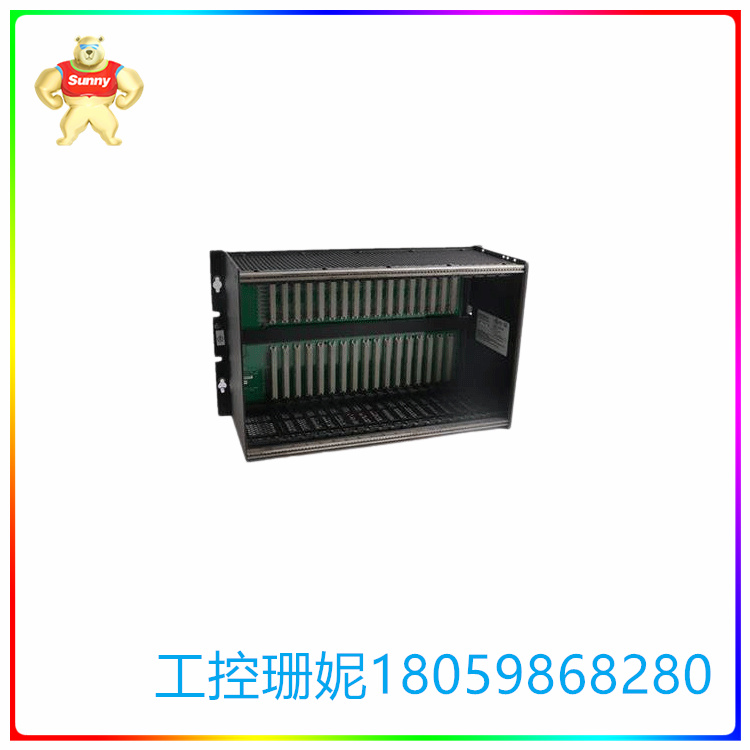

GE IC698CHS017 标准机架  7 插槽后置 I/O 机架

【产品详情】

技术规格

模块类型： 标准机架

安装位置： 后

插槽数量： 15 单宽，8 双宽

机架插槽尺寸： 0.8 英寸

尺寸： 11.15 x 19.0 x 7.5 英寸（高 x 宽 x 深）

电源： RX7i 电源位于插槽 0 中

 GE Fanuc IC698CHS017 Rx7i I/O 机架是用于 Rx17i PACsystem 系列的 7 插槽后置 I/O 机架。与每个 Rx698i PACsystem 机架一样，IC017CHS7 机架旨在支持高功率 Rx7i PACsystem 电源，它配备了 VME64 背板，比基于 VME 的标准系统快近 4 倍，它支持所有标准 VME 模块，包括 VMIC 和 90-70 系列 I/O 模块。IC698CHS017 Rack 具有内置的插槽感应功能，无需在 I/O 模块上使用额外的跳线或 DIP 开关即可实现 I/O 参考寻址。IC698CHS017 Rack 支持更高瓦数的电源，并且兼容 Rx7i 交流电源插件。IC698CHS017 Rack 采用开放式设计，因此需要具有 IP 54 或更高等级的标准外壳才能在工厂车间使用。

IC698CHS017 机架有 17 个编号为 1 到 17 的 I/O 插槽。插槽 1 到 17 的间距为 0.8 英寸，以容纳单插槽 I/O 模块。插槽 1 仅保留给 CPU 模块，而另一个称为“插槽 0”的插槽保留给电源。IC698CHS017机架支持 15 个单宽 I/O 模块、8 个双宽模块或双宽和单宽模块的组合。IC698CHS017 Rack 支持 350 瓦电源。它在 60 伏直流电下的总额定电流为 5 安培，在 -4 伏直流电下的总额定电流为 12 安培。与所有 Rx7i 机架一样，IC698CHS017 机架使用基于 Windows 的 CIMPLICITY Machine Edition Logic Developer-PLC 软件支持软件配置和 I/O 参考寻址。IC698CHS017架的标准尺寸为 11.2 x 19.0 x 7.5 英寸（高 x 宽 x 深），工作温度范围为 0 摄氏度至 60 摄氏度。

客户问答

问题：什么是IC698CHS017？答：IC698CHS017是GE Fanuc RX17i系列的标准PACSystems 7槽壁挂式（后置）安装机架。

问：IC698CHS017有多少个 I/O 插槽？ 答：15 个单宽或 8 个双宽（外加一个电源）

问：插槽 0 在IC698CHS017中必须占用什么？ 答：最左侧的插槽（插槽 0）必须被 RX7i 电源占用。

问：插槽 1 在IC698CHS017中必须占用什么？ 答：插槽 1 位置必须由 RX7i CPU 占据，但是，带有以太网子卡的 IC698CPE010/020 和 IC698CRE020 CPU 是双宽模块，使用插槽 1 和 2。

问：此机架有哪些附加功能？ 答：

为机架式 I/O 模块提供插槽感应

提供中断确认和总线授予信号的自动菊花链，因此无需空白插槽跳线

提供 J2 背板连接器，允许每个周期最多 64 个数据位的高速 VME 传输

接受插入式 RX7i 电源

支持更高功率的电源，适用于大电流配置

支持可选的冷却风扇组件（IC698CPE020/CRE020 需要）

GE IC698CHS017 标准机架  7 插槽后置 I/O 机架

【英文介绍】

Technical specification

Module type: Standard rack

Installation position: rear

Number of slots: 15 single width, 8 double width

Rack slot size: 0.8 inches

Dimensions: 11.15 x 19.0 x 7.5 inches (H x W x D)

Power Supply: The RX7i power supply is located in slot 0

The GE Fanuc IC698CHS017 Rx7i I/O rack is a 7-slot rear I/O rack for the Rx17i PACsystem series. Like every Rx698i PACsystem rack, the IC017CHS7 rack is designed to support a high power Rx7i PACsystem power supply, it is equipped with a VME64 backplane that is nearly 4 times faster than standard VME-based systems, it supports all standard VME modules, and it supports all standard VME modules. Includes VMIC and 90-70 series I/O modules. The IC698CHS017 Rack features built-in slot sensing, enabling I/O reference addressing without the use of additional jumpers or DIP switches on the I/O module. The IC698CHS017 Rack supports higher wattage power supplies and is compatible with the Rx7i AC power plug-in. The IC698CHS017 Rack has an open design and therefore requires a standard housing with IP 54 rating or higher to be used on the factory floor.

The IC698CHS017 rack has 17 I/O slots numbered 1 to 17. Slots 1 through 17 are spaced 0.8 inches to accommodate single-slot I/O modules. Slot 1 is reserved only for the CPU module, while the other slot called "slot 0" is reserved for the power supply. The IC698CHS017 rack supports 15 single-width I/O modules, eight dual-width modules, or a combination of dual-width and single-width modules. The IC698CHS017 Rack supports a 350 Watt power supply. It has a total fixed current of 5 amps at 60 volts DC and a total fixed current of 12 amps at -4 volts DC. Like all Rx7i racks, the IC698CHS017 racks support software configuration and I/O reference addressing using Windows-based CIMPLICITY Machine Edition Logic Developer-PLC software. The IC698CHS017 has a standard size of 11.2 x 19.0 x 7.5 inches (H x W x D) and an operating temperature range of 0 ° C to 60 ° C.

Customer question and answer

Question: What is IC698CHS017? A: The IC698CHS017 is the standard PACSystems 7-slot wall-mounted (rear) mount rack for the GE Fanuc RX17i series.

Q: How many I/O slots does the IC698CHS017 have? A: 15 single widths or 8 double widths (plus a power supply)

Q: What must slot 0 occupy in IC698CHS017? A: The leftmost slot (slot 0) must be occupied by the RX7i power supply.

Q: What must slot 1 occupy in the IC698CHS017? A: Slot 1 must be occupied by the RX7i CPU, but the IC698CPE010/020 and IC698CRE020 cpus with Ethernet subcards are double-width modules that use slots 1 and 2.

Q: What additional features does this rack have? A:

Slot sensing for rack-mounted I/O modules

Provides an automatic daisy-chain of interrupt acknowledgement and bus grant signals, so no blank slot jumpers are required

J2 backplane connector is available, allowing high-speed VME transmission of up to 64 data bits per cycle

Plug-in RX7i power supply accepted

Supports higher power supplies for high current configurations

Support for optional cooling fan assembly (required for IC698CPE020/CRE020)
