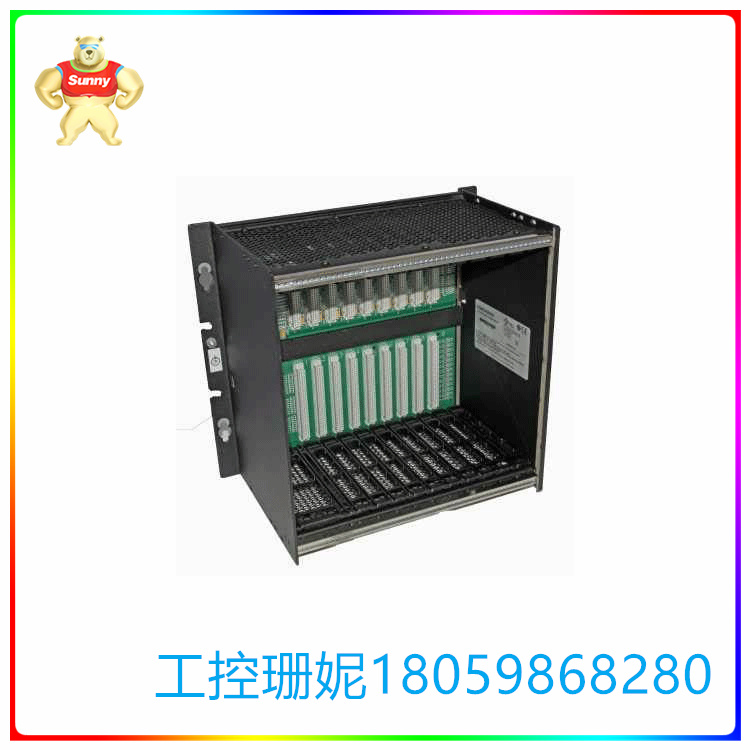

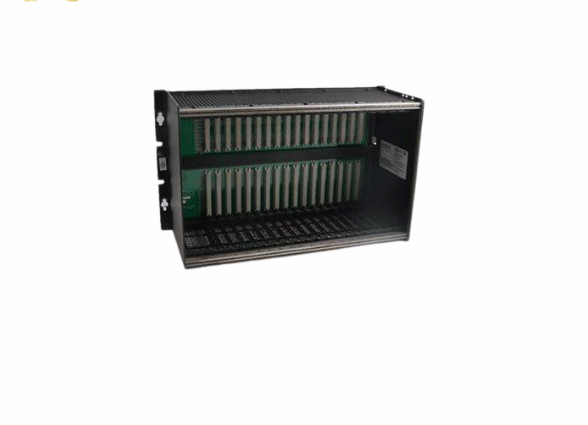

GE IC698CHS009  7 插槽 I/O 机架 具有插槽感应功能

【产品详情】

技术规格

模块类型： 标准机架

安装位置： 后

插槽数量： 9 单宽，5 双宽

机架插槽尺寸： 0.8 英寸

尺寸： 11.15 x 12.6 x 7.25 英寸（高 x 宽 x 深）

电源： RX7i 电源位于插槽 0 中

GE Fanuc IC698CHS009 Rx7i I/O 机架是用于 Rx9i PACsystem 系列的 7 插槽 I/O 机架。这款后置 I/O 机架与所有 Rx7i CPU 和 I/O 设备、90-70 系列 I/O 和 VME 模块兼容。IC698CHS009机架具有插槽感应功能，支持软件配置，无需 DIP 开关或跳线即可进行 I/O 寻址。IC698CHS009机架还提供中断确认和总线授予信号的自动菊花链连接，无需插槽跳线，并支持 Rx7i 电源插件。IC698CHS009机架有 9 个 I/O 插槽，用于安装 Rx7i CPU、I/O 模块和电源模块。编号为 1 到 8 的插槽宽度为 20 毫米，仅支持单插槽模块。插槽 9 宽 40.6 毫米，支持双宽模块。插槽 1 编号仅保留给 CPU，“插槽 0”宽 61 毫米，用于电源模块。

IC698CHS009 机架支持 100 瓦和 350 瓦额定电源。使用 100 瓦电源时，IC698CHS009 机架的最大额定电流为 20 安培（5 伏直流电）和 1 安培（-12 伏直流电）之一，使用 350 瓦电源时，它的最大额定电流为 60 安培（5 伏直流电）和 4 安培（-12 伏直流电）。IC698CHS009机架支持软件配置。I/O 插槽寻址是使用 Machine Edition Logic Developer-PLC 软件实现的。IC698CHS009机架支持使用可选的风扇组件，如 IC698CPE020/CRE020 组件，以增强冷却效果。IC698CHS009 Rack 是一种开放式设计设备，需要标准的 IP 54 外壳才能在任何工厂车间提供保护。它的工作温度范围为 0 至 60 摄氏度，总尺寸为 283 x 320 x 190 毫米。

客户问答

问题：什么是IC698CHS009？答：IC698CHS009是GE Fanuc RX9i系列的标准PACSystems 7槽壁挂式（后置）安装机架。

问：IC698CHS009有多少个 I/O 插槽？ 答：9 个单宽或 5 个双宽（外加一个电源）

问：插槽 0 在IC698CHS009中必须占用什么？ 答：最左侧的插槽（插槽 0）必须被 RX7i 电源占用。

问：插槽 1 在IC698CHS009中必须占用什么？ 答：插槽 1 位置必须由 RX7i CPU 占据，但是，带有以太网子卡的 IC698CPE010/020 和 IC698CRE020 CPU 是双宽模块，使用插槽 1 和 2。

问：此机架有哪些附加功能？ 答：

为机架式 I/O 模块提供插槽感应

提供中断确认和总线授予信号的自动菊花链，因此无需空白插槽跳线

提供 J2 背板连接器，允许每个周期最多 64 个数据位的高速 VME 传输

接受插入式 RX7i 电源

支持可选的冷却风扇组件（IC698CPE020/CRE020 需要）

GE IC698CHS009  7 插槽 I/O 机架 具有插槽感应功能

【英文介绍】

Technical specification

Module type: Standard rack

Installation position: rear

Number of slots: 9 single width, 5 double width

Rack slot size: 0.8 inches

Dimensions: 11.15 x 12.6 x 7.25 inches (H x W x D)

Power Supply: The RX7i power supply is located in slot 0

The GE Fanuc IC698CHS009 Rx7i I/O rack is a 7-slot I/O rack for the Rx9i PACsystem series. This rear I/O rack is compatible with all Rx7i CPU and I/O devices, as well as the 90-70 series I/O and VME modules. The IC698CHS009 rack features slot sensing and software configuration for I/O addressing without DIP switches or jumpers. The IC698CHS009 rack also provides automatic daisy-chain connections for interrupt acknowledgement and bus grant signals without the need for slot jumps, and supports Rx7i power plugins. The IC698CHS009 rack has nine I/O slots for installing the Rx7i CPU, I/O module, and power module. Slots numbered 1 to 8 are 20 mm wide and support only single-slot modules. Slot 9 is 40.6 mm wide and supports dual-width modules. Slot 1 is reserved for cpus only. Slot 0 is 61 mm wide and is used for power modules.

The IC698CHS009 rack supports 100 watt and 350 Watt power ratings. The IC698CHS009 frame has a maximum rated current of one of 20 amps (5 volts DC) and 1 amp (-12 volts DC) when using a 100 watt power supply, and it has a maximum rated current of 60 amps (5 volts DC) and 4 amps (-12 volts DC) when using a 350 Watt power supply. The IC698CHS009 rack supports software configuration. I/O slot addressing is implemented using Machine Edition Logic Developer-PLC software. The IC698CHS009 rack supports the use of optional fan components such as the IC698CPE020/CRE020 components for enhanced cooling. The IC698CHS009 Rack is an open design device that requires a standard IP 54 housing to provide protection on any factory floor. It operates in a temperature range of 0 to 60 degrees Celsius and has a total size of 283 x 320 x 190 mm.

Customer question and answer

Question: What is IC698CHS009? A: The IC698CHS009 is the standard PACSystems 7-slot wall-mounted (rear) mount rack for the GE Fanuc RX9i series.

Q: How many I/O slots does the IC698CHS009 have? A: 9 single widths or 5 double widths (plus a power supply)

Q: What must slot 0 occupy in IC698CHS009? A: The leftmost slot (slot 0) must be occupied by the RX7i power supply.

Q: What must slot 1 occupy in the IC698CHS009? A: Slot 1 must be occupied by the RX7i CPU, but the IC698CPE010/020 and IC698CRE020 cpus with Ethernet subcards are double-width modules that use slots 1 and 2.

Q: What additional features does this rack have? A:

Slot sensing for rack-mounted I/O modules

Provides an automatic daisy-chain of interrupt acknowledgement and bus grant signals, so no blank slot jumpers are required

J2 backplane connector is available, allowing high-speed VME transmission of up to 64 data bits per cycle

Plug-in RX7i power supply accepted

Support for optional cooling fan assembly (required for IC698CPE020/CRE020)
