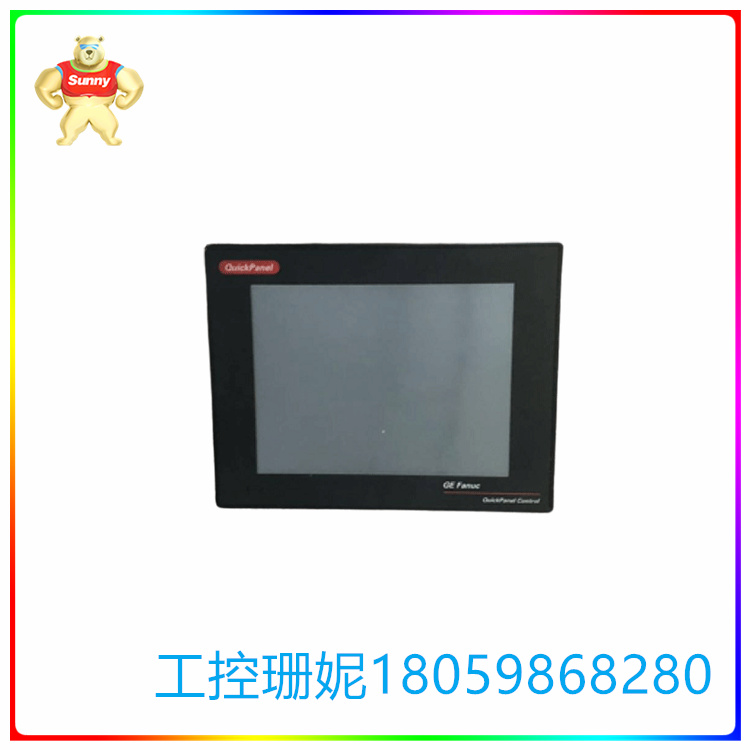

GE Fanuc  IC755CSS10CDA 操作界面终端

【产品详情】

IC755CSS10CDA端子由 GE Fanuc 制造，只需极小的面板空间即可安装到任何兼容的工业系统中。这款 Quickpanel+ 操作界面终端专为在 12/24 伏直流电下以及通风良好和湿度水平合适的位置运行而设计。IC755CSS10CDA操作界面终端可在 -10 至 60 摄氏度（14 至 140 华氏度）的温度下存储，其工作温度范围为 0 至 55 摄氏度（32 至 131 华氏度）。IC755CSS10CDA终端具有 10.4 英寸显示屏的多点触控触摸屏。TFT LCD 屏幕的亮度等级为每平方米 400 坎德拉，图形中有 65,536 种颜色。该组件具有状态 LED，并具有微型 USB 和线路输出输入等输入。此外，该装置还有一个用于 SD/SDHC 存储卡的插槽、一个 LAN 输入和多个 USB 2.0 端口。除了 USB 通信外，该装置还允许串行通信，并具有两个 10/100Base T RJ-45 以太网端口。

GE Fanuc Quickpanel+ IC755CSS10CDA 操作界面终端的最大额定功耗为 18 瓦，额定电流为 1.5/0.75 安培，并配有使用寿命长的锂金属电池。IC755CSS10CDA 操作界面终端具有 512 KB 的 SRAM，带备用电池，并具有高达 1 GB 的 RAM。RAM 模块是 DDR3 SDRAM 类型，该单元具有 512 MB 的可用 ROM。除电池外，IC755CSS10CDA操作界面端子的组件还包括串行端口连接器、电源连接器、4 个安装支架以及保护片和垫圈等其他部件。该装置允许面板安装或使用 VESA 安装底座进行安装。

GE Fanuc  IC755CSS10CDA 操作界面终端

【英文介绍】

The IC755CSS10CDA terminals are manufactured by GE Fanuc and can be installed into any compatible industrial system with minimal panel space. This Quickpanel+ operator interface terminal is designed to operate at 12/24 volts DC, with good ventilation and appropriate humidity levels. The IC755CSS10CDA operating interface terminal can be stored at temperatures from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit), and its operating temperature range is 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit). The IC755CSS10CDA terminal features a multi-touch touchscreen with a 10.4-inch display. The brightness level of the TFT LCD screen is 400 candela per square meter, and there are 65,536 colors in the graphics. The component has a status LED and has inputs such as micro-USB and line output inputs. In addition, the device has a slot for SD/SDHC memory cards, a LAN input, and multiple USB 2.0 ports. In addition to USB communication, the unit also allows serial communication and has two 10/100Base T RJ-45 Ethernet ports.

The GE Fanuc Quickpanel+ IC755CSS10CDA operating interface terminal has a maximum rated power consumption of 18 watts, rated current of 1.5/0.75 amps, and is equipped with a long life lithium metal battery. The IC755CSS10CDA operating interface terminal has 512 KB of SRAM with a backup battery and has up to 1 GB of RAM. The RAM module is the DDR3 SDRAM type, and the unit has 512 MB of available ROM. In addition to the battery, the components of the IC755CSS10CDA operating interface terminals also include serial port connectors, power connectors, four mounting brackets, and other components such as protection sheets and washers. The unit allows panel mounting or installation using the VESA mounting base.

GE Fanuc  IC755CSS10CDA 操作界面终端
