GE IC755CKW12CDM 操作界面终端 工业系统

【产品详情】

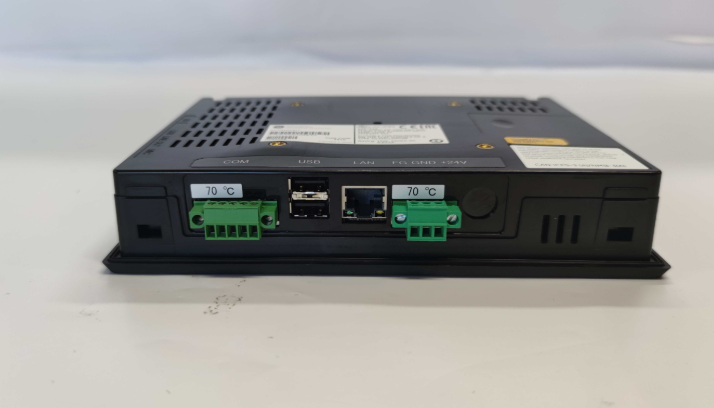

IC755CKW12CDM终端是一种操作界面终端，旨在用于通常由许多不同组件构成的工业系统。该接口模块由 GE Fanuc 制造，是 Quickpanel+ 系列的一部分。该装置提供了在工业环境中必不可少的灵活性、可靠性和多功能性。IC755CKW12CDM操作界面终端与其他设备兼容，并具有广泛的功能和通信选项。该装置配有 2 个 45/10BaseT 类型的 RJ-100 以太网端口，以及 2 个系列端口和用于主机和其他设备的 USB 2.0 端口。该装置的工作电压额定值为 24 伏直流电，额定功耗最大为 30 瓦。

IC755CKW12CDM终端具有 12.1 英寸显示屏，具有宽屏视图，可扩展系统功能。TFT LCD 屏幕配备 LED 背光，分辨率为 800 x 600 像素。该显示器具有 65,536 种颜色和每平方米 450 坎德拉的亮度。IC755CKW12CDM终端的显示屏具有多点触控功能，大大有助于更轻松、更快速地操作机器。该装置运行在1 GHz的飞思卡尔i.MX535处理器上，并具有Microsoft Windows Embedded Compact 7操作系统。除此之外，IC755CKW12CDM 终端还具有 1 GB 的 DDR3 RAM、512 MB 的 ROM 和 512 KB 的 SRAM。操作数据可以存储到可选的 SD/SDHC 存储卡中，该存储卡不包括在内。终端尺寸为 314 x 248 x 65 毫米（12.3 x 9.7 x 2.5 英寸）。该装置的重量为 3 公斤或 6.6 磅。

GE IC755CKW12CDM 操作界面终端 工业系统

【英文介绍】

The IC755CKW12CDM terminal is an operating interface terminal designed for use in industrial systems that are typically composed of many different components. The interface module is manufactured by GE Fanuc and is part of the Quickpanel+ family. The unit provides the flexibility, reliability and versatility essential in an industrial environment. The IC755CKW12CDM operator interface terminal is compatible with other devices and has a wide range of features and communication options. The unit comes with 2 RJ-100 Ethernet ports of type 45/10BaseT, as well as 2 series ports and USB 2.0 ports for the host and other devices. The unit has an operating voltage rating of 24 volts DC and a rated power consumption of up to 30 watts.

The IC755CKW12CDM terminal features a 12.1-inch display with widescreen view and scalable system capabilities. The TFT LCD screen is equipped with an LED backlight and has a resolution of 800 x 600 pixels. The display has 65,536 colors and a brightness of 450 candela per square meter. The display of the IC755CKW12CDM terminal has a multi-touch function, which greatly contributes to easier and faster operation of the machine. The device runs on a 1 GHz Freescale i.MX535 processor and has the Microsoft Windows Embedded Compact 7 operating system. In addition to this, the IC755CKW12CDM terminal has 1 GB of DDR3 RAM, 512 MB of ROM and 512 KB of SRAM. Operational data can be stored on an optional SD/SDHC memory card, which is not included. The terminal measures 314 x 248 x 65 mm (12.3 x 9.7 x 2.5 inches). The device weighs 3 kilograms or 6.6 pounds.
