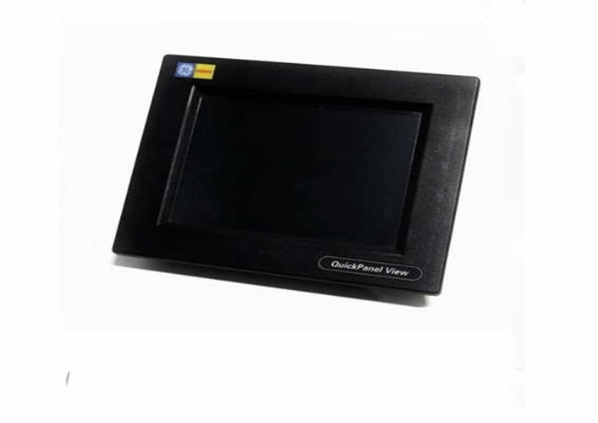

GE IC754VGI06MTD 操作员终端 人机界面

【产品详情】

 IC754VGI06MTD是一个 QuickPanel View 操作员终端。它是GE Fanuc制造的可视化产品目录的一部分。它用作人机界面 （HMI），具有 5.75 英寸彩色 TFT 显示屏，分辨率为 320 x 240 像素。它带有触摸屏操作界面;它有一个Intel XScale PXA255 300 MHz CPU，集成内存由32 MB闪存，512 KB SRAM，32 MB DRAM和512 KB ROM组成。对于通信，该设备具有以太网、RS232 / RS485 通信端口。该端子在 24 VDC 的输入电源电压下工作，实际功率为 12 瓦。

IC754VGI06MTD是由GE Fanuc制造的QuickPanel View操作终端。该操作终端用作人机界面 （HMI），主要用于从工厂车间或辅助控制位置的中心位置对工业机器和过程进行实时监控。该 HMI 由外部 24 VDC 电源供电，电压和 12 瓦的实际功率要求。

IC754VGI06MTD 是一款带有彩色图形的操作终端，能够支持 65536 种颜色。它具有 5.75 英寸屏幕，分辨率为 320 x 240 像素，并安装了冷阴极荧光 （CCFL） 背光，额定半衰期为 40,000 小时。此 HMI 安装的内置处理器是 Intel XScale PXA255 300 MHz 中央处理器 （CPU） 和集成内存，由 32 MB 闪存、512 KB SRAM、32 MB DRAM 和 512 KB ROM 组成。该终端还提供 100 针 DIMM 内存扩展插槽，设计用于安装最大内存大小为 64 MB 的 SDRAM。它还具有一个 2 型紧凑型闪存插槽和一个单插槽扩展总线插槽。

IC754VGI06MTD带有触摸输入界面。它是一款 12 位电阻式触摸屏，水平分布 320 个触摸单元，垂直安装 240 个像素。该触摸界面可以通过此 HMI 内置的配置菜单进行校准。为了与合作伙伴 PLC 设备进行通信，该操作终端配有一 （1） 个以太网 I/P 通信端口和一 （1） 个 RS232 通信接口。

IC754VGI06MTD接口端子是由GE Fanuc制造的Quickpanel。它用作微型计算机，设计为高度灵活，在单个设备中包含尽可能多的关键功能。IC754VGI06MTD Quickpanel接口终端使用的微处理器是ARM内核微处理器的高级类型。它配备了通信端口，使其能够连接到大多数其他标准工业设备和控制系统组件并与之通信。它由触摸屏控制，触摸屏是高分辨率触摸屏。IC754VGI06MTD Quickpanel 接口终端配备 512 MB RAM、256 MB ROM 和 512 KB SRAM，支持备用电池。

Quickpanel 和 Quickpanel+ 系列的 GE Fanuc IC754VGI06MTD 接口端子使用Microsoft Windows Embedded Compact 7 操作系统。它的触摸屏可以支持 2 点多点触控命令。它的显示屏是 7 英寸 TFT LCD 宽屏显示器，带有 LED 背光，分辨率为 800 x 480 像素。IC754VGI06MTD接口端子的最大额定功耗为 15 瓦，其最大额定电压为 30 伏直流电（标准额定电压为 24 伏直流电）。终端尺寸为 7.56 x 5.39 x 1.42 英寸，重量为 1.76 磅。IC754VGI06MTD接口端子的工作温度范围为 32 至 122 华氏度，存储温度范围为 -4 至 140 华氏度。该终端自带的端口是 1 个以太网端口、1 个串行端口、2 个 USB 主机端口和 1 个 USB 设备端口。

GE IC754VGI06MTD 操作员终端 人机界面

【英文介绍】

IC754VGI06MTD is a QuickPanel View operator terminal. It is part of the visual product catalog manufactured by GE Fanuc. It serves as a human-machine interface (HMI) with a 5.75-inch color TFT display with a resolution of 320 x 240 pixels. It has a touch screen interface; It has an Intel XScale PXA255 300 MHz CPU with integrated memory consisting of 32 MB flash memory, 512 KB SRAM, 32 MB DRAM, and 512 KB ROM. For communication, the device has Ethernet, RS232 / RS485 communication ports. The terminal operates at an input supply voltage of 24 VDC and the actual power is 12 watts.

The IC754VGI06MTD is a QuickPanel View operating terminal manufactured by GE Fanuc. This operating terminal is used as a human-machine interface (HMI), primarily for real-time monitoring of industrial machines and processes from a central location on the factory floor or in a secondary control location. The HMI is powered by an external 24 VDC supply, voltage and actual power requirements of 12 watts.

The IC754VGI06MTD is an operating terminal with color graphics, capable of supporting 65536 colors. It features a 5.75-inch screen with a resolution of 320 x 240 pixels and is fitted with a cold cathode fluorescence (CCFL) backlight with a rated half-life of 40,000 hours. The built-in processor for this HMI installation is the Intel XScale PXA255 300 MHz central processing unit (CPU) and integrated memory, consisting of 32 MB flash memory, 512 KB SRAM, 32 MB DRAM, and 512 KB ROM. The terminal also offers a 100-pin DIMM memory expansion slot designed to install SDRAM with a maximum memory size of 64 MB. It also features a Type 2 compact flash memory slot and a single-slot expansion bus slot.

IC754VGI06MTD with touch input interface. It is a 12-bit resistive touch screen with 320 touch units distributed horizontally and 240 pixels mounted vertically. The touch interface can be calibrated through the configuration menu built into this HMI. For communication with partner PLC equipment, the operating terminal is equipped with one (1) Ethernet I/P communication port and one (1) RS232 communication interface.

The IC754VGI06MTD interface terminal is a Quickpanel manufactured by GE Fanuc. It functions as a microcomputer and is designed to be highly flexible, containing as many critical functions as possible in a single device. The microprocessor used by the IC754VGI06MTD Quickpanel interface terminal is an advanced type of ARM core microprocessor. It is equipped with communication ports that enable it to connect to and communicate with most other standard industrial equipment and control system components. It is controlled by a touch screen, which is a high resolution touch screen. The IC754VGI06MTD Quickpanel interface terminal is equipped with 512 MB RAM, 256 MB ROM and 512 KB SRAM, and supports backup battery.

The GE Fanuc IC754VGI06MTD interface terminals of the Quickpanel and Quickpanel+ series use the Microsoft Windows Embedded Compact 7 operating system. Its touch screen can support 2-point multi-touch commands. Its display is a 7-inch TFT LCD widescreen display with LED backlight and a resolution of 800 x 480 pixels. The IC754VGI06MTD interface terminal has a maximum rated power consumption of 15 watts, and its maximum rated voltage is 30 volts DC (standard rated voltage is 24 volts DC). The terminal measures 7.56 x 5.39 x 1.42 inches and weighs 1.76 pounds. The IC754VGI06MTD interface terminals have an operating temperature range of 32 to 122 degrees Fahrenheit and a storage temperature range of -4 to 140 degrees Fahrenheit. The ports that come with the terminal are one Ethernet port, one serial port, two USB host ports, and one USB device port.

GE IC754VGI06MTD 操作员终端 人机界面
