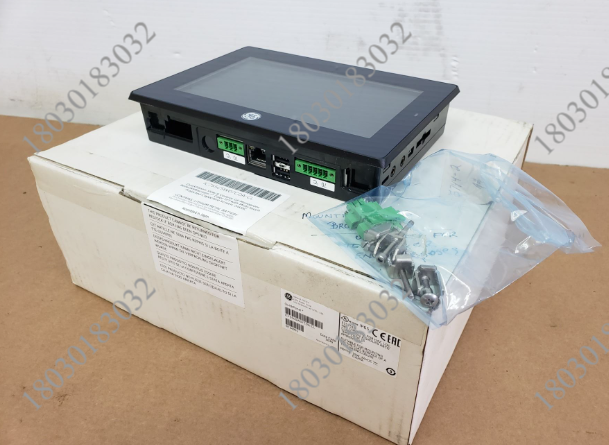

GE IC754CSF06CTD 快速面板 人机界面

【产品详情】

GE Fanuc 是 QuickPanel 产品系列中一款IC754CSF06CTD人机界面 （HMI） 设备。这款人机界面具有 6 英寸彩色 TFT 屏幕、Touchsceen 输入接口、64 MB 闪存、512KB SRAM、32 MB DRAM、512KB 引导加载程序。它具有一 （1） 个以太网接口、一 （1） 个串行 EIA232C/EIA485、DP25S 组合端口、一 （1） 个 RS232 端口和两 （2） 个 USB 接口。它具有 Windows CE 操作系统。

IC754CSF06CTD装置是通用电气 （GE） QuickPanel 系列的操作终端。该操作终端使用户能够顺利地与机器进行交互;凭借其 64 MB 内部存储器，该终端能够很好地处理许多正在进行的操作。IC754CSF06CTD使用 12 至 30 伏直流电源供电。这些GE QuickPanel产品的数据输入和解释过程是相对容易完成的过程。该IC754CSF06CTD允许用户通过触摸屏进行交互，以输入日期信息。该设备具有 6 英寸薄膜晶体管和彩色显示屏，以增强设备与用户之间的交互过程。HMI-CAB-CS3 电缆用作通信电缆，用于维护或启动连接程序。QuickPanel View 可帮助用户使用 Proficy View-Machine Edition 软件进行连接。RS-232 和 RS-485 通信端口也用于此目的。

IC754CSF06CTD的运输重量为 5 磅，而运输尺寸为 14 X 12 X 10 英寸。它旨在实现最大的灵活性和高分辨率的触摸屏操作界面。根据用户的要求，可以选择大量的内存类型。IC754CSF06CTD的触摸屏是投射电容式触摸屏和两点式，该设备可用的通信选项是以太网端口、串行端口、USB 主机和 USB 设备。还有许多标准端口和扩展总线可以连接到工业设备。

该IC754CSF06CTD具有 6 英寸彩色 TFT 显示屏，允许图形和运行时对象提供彩色编码动画和显示。触摸屏输入界面通过直接触摸运行时对象提供了一种方便的操作系统方式。它具有多种内部存储器，可实现无缝操作，因为它具有内部 64 MB 闪存、512KB 静态随机存取存储器 （SRAM）、32 MB 动态随机存取存储器 （DRAM）、512KB 引导加载程序分区。它运行 Windows Compact Embedded （CE） 它具有 Windows CE 操作系统，提供熟悉的 Windows 配置环境。此Windows CE操作系统支持标准和常见的Windows操作系统命令以及用于远程浏览和FTP连接的Pocket Internet Explorer，Microsoft文件查看器，PDF查看器和其他功能。

该IC754CSF06CTD与工业控制器通信，如可编程逻辑控制器 （PLC）、独立控制器和其他电子设备。该 QuickPanel 操作终端通过内置的一 （1） 个以太网接口进行通信，该接口支持 10/100 Mbps 并具有自动协商功能，一 （1） 个串行 EIA232C/EIA485、DP25S 组合端口，用于点对点或多点通信，一 （1） 个用于点对点数据交换的 RS232 端口和两 （2） 个用于外部外围连接（如键盘、鼠标和外部闪存驱动器）的 USB 接口，提供输入接口和内存存储选项。

IC754CSF06CTD常见问题

IC754CSF06CTD的屏幕尺寸是多少？

IC754CSF06CTD具有 6 英寸彩色 TFT 触摸屏。

IC754CSF06CTD的屏幕分辨率是多少？

IC754CSF06CTD屏幕的分辨率为 320 x 240 像素。

IC754CSF06CTD的可用内部存储器是什么？

该IC754CSF06CTD具有 64 MB 闪存、512KB 静态随机存取存储器 （SRAM）、32 MB 动态随机存取存储器 （DRAM） 和 512KB 引导加载程序。

GE IC754CSF06CTD 快速面板 人机界面

【英文介绍】

The GE Fanuc is an IC754CSF06CTD Human Machine interface (HMI) device in the QuickPanel product family. The HMI features a 6-inch color TFT screen, Touchsceen input interface, 64 MB flash memory, 512KB SRAM, 32 MB DRAM, and 512KB boot loader. It has one (1) Ethernet interface, one (1) serial EIA232C/EIA485, DP25S combined port, one (1) RS232 port, and two (2) USB interfaces. It has the Windows CE operating system.

The IC754CSF06CTD unit is an operating terminal for the General Electric (GE) QuickPanel series. The operating terminal enables the user to interact with the machine smoothly; With its 64 MB internal memory, the terminal is well equipped to handle many ongoing operations. The IC754CSF06CTD uses 12 to 30 volts DC power supply. The data entry and interpretation process for these GE QuickPanel products is a relatively easy process to complete. The IC754CSF06CTD allows the user to interact with a touch screen to enter date information. The device features a 6-inch thin film transistor and a color display to enhance the interaction process between the device and the user. The HMI-CAB-CS3 cable is used as a communication cable to maintain or initiate connection procedures. QuickPanel View helps users connect using Proficy View-Machine Edition software. RS-232 and RS-485 communication ports are also used for this purpose.

The IC754CSF06CTD has a shipping weight of 5 pounds and a shipping size of 14 X 12 X 10 inches. It is designed to achieve maximum flexibility and a high resolution touch screen operating interface. Depending on the user's requirements, a large number of memory types can be selected. The touch screen of the IC754CSF06CTD is projected capacitive touch screen and two-point, and the communication options available for the device are Ethernet port, serial port, USB host and USB device. There are also many standard ports and expansion buses that can be connected to industrial equipment.

The IC754CSF06CTD features a 6-inch color TFT display that allows graphics and runtime objects to be color-coded animated and displayed. The touch screen input interface provides a convenient way to operate the operating system by directly touching runtime objects. It has a variety of internal memory for seamless operation, as it has internal 64 MB flash memory, 512KB static random access memory (SRAM), 32 MB dynamic random access memory (DRAM), 512KB boot loader partition. It runs Windows Compact Embedded (CE) It has the Windows CE operating system and provides the familiar Windows configuration environment. This Windows CE operating system supports standard and common Windows operating system commands as well as Pocket Internet Explorer for remote browsing and FTP connections, Microsoft File Viewer, PDF viewer and other features.

The IC754CSF06CTD communicates with industrial controllers such as programmable logic controllers (PLCS), stand-alone controllers, and other electronic devices. The QuickPanel operating terminal communicates via one (1) built-in Ethernet interface that supports 10/100 Mbps with auto-negotiation, one (1) serial EIA232C/EIA485, DP25S combination port for point-to-point or multipoint communication, One (1) RS232 port for point-to-point data exchange and two (2) USB ports for external peripheral connections such as keyboards, mice, and external flash drives, providing input interfaces and memory storage options.

IC754CSF06CTD Frequently Asked Questions

What is the screen size of IC754CSF06CTD?

The IC754CSF06CTD features a 6-inch color TFT touch screen.

What is the screen resolution of IC754CSF06CTD?

The IC754CSF06CTD screen has a resolution of 320 x 240 pixels.

What is the available internal memory for IC754CSF06CTD?

The IC754CSF06CTD has 64 MB flash memory, 512KB static random access memory (SRAM), 32 MB dynamic random access memory (DRAM), and 512KB boot loader.
