GE IC697VAL134 模数转换器 用作信号转换器设备

【产品详情】

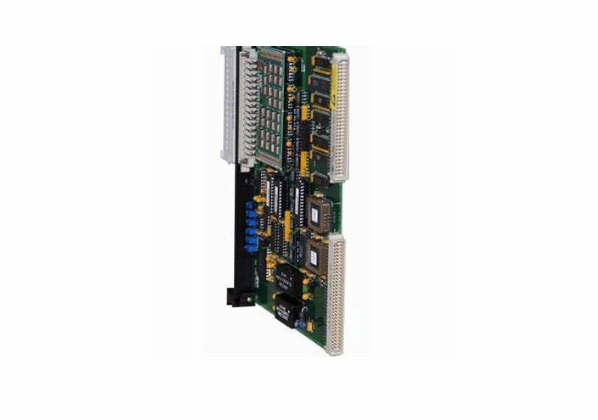

IC697VAL134板是由GE Fanuc Automation设计和制造的转换器板。该板的具体用途是用作信号转换器设备。它可以扫描模拟输入通道并将信号从模拟转换为数字。板内嵌的特定转换器是分辨率为 12 位的 ADC 转换器。该板在通电后不需要使用任何软件，并开始扫描每个输入通道。GE Fanuc Automation IC697VAL134 转换器板的输入范围为 +/- 50 微伏至 +/- 10 伏直流，并具有输入过压保护功能。该板还具有 1000 伏直流电的隔离电压。

GE Fanuc Automation IC697VAL134 转换器板包括一个前面板 LED，用于指示输入的状态。该板占用 128 字节的 I/O VMEbus 空间，并配有跳线，可为任何 128 字节边界上的板提供空间。在安装GE Fanuc自动化IC697VAL134转换板之前，需要对设备断电，以确保设备和技术人员在安装过程中的安全。该板带有 40 赫兹输入滤波器，这些滤波器已在工厂配置。该板分为不同的功能类别，如板ID寄存器、BIT基准电压源和模拟输入多路复用类别。对于某些应用，电路板需要校准才能正常运行。还建议经常维护以检查电路板及其连接的物理状态。

GE Fanuc IC697VAL134模数转换器板是一种基于微处理器的电子设备，它以 40 kHz 的频率扫描连接到其中的输入，以便以预设的 12 位分辨率对接收到的信号进行自动数字化。该模数转换器能够同时监控多达 31 个单端或 16 个差分模拟输入通道，输入电压范围为 +/-50 mV 或 +/-10V DC。GE Fanuc IC697VAL134模数转换器在启动前不需要任何类型的软件预配置，因为它是一种即插即用的设备，开箱即用即可开始工作。用户唯一需要调整的是ADC增益的设置，可以使用额定值为x1、x10和x100的跳线进行选择。

GE Fanuc IC697VAL134模数转换器板采用开放式结构，具有 IP 20 环保等级。这意味着强烈建议用户将此电子板安装在保护外壳内，远离污垢、湿气或任何其他可能污染设备内部电路的污染源。GE Fanuc IC697VAL134模数转换器板的工作温度应保持在 -25 至 +70 摄氏度（-13 至 158 华氏度）之间。对于在较热或较冷环境中的应用，可能需要正确额定的气候控制系统或强制通风系统。任何必要的维修操作只能由经过认证的技术人员执行。

GE IC697VAL134 模数转换器 用作信号转换器设备

【英文介绍】

The IC697VAL134 board is a converter board designed and manufactured by GE Fanuc Automation. The specific purpose of the board is as a signal converter device. It can scan analog input channels and convert signals from analog to digital. The specific converter embedded in the board is an ADC converter with a resolution of 12 bits. The board does not need to use any software after it is powered on and starts scanning each input channel. The GE Fanuc Automation IC697VAL134 converter board has an input range of +/ -50 microvolts to +/ -10 volts DC with input overvoltage protection. The board also has an isolation voltage of 1000 volts DC.

The GE Fanuc Automation IC697VAL134 converter board includes a front panel LED to indicate the status of the input. The board occupies 128 bytes of I/O VMEbus space and is equipped with jumpers to provide space for any board on a 128 byte boundary. Before installing the GE Fanuc Automation IC697VAL134 converter board, the equipment needs to be powered off to ensure the safety of the equipment and technicians during the installation process. The board comes with 40 Hz input filters that have been configured in the factory. The board is divided into different functional classes, such as the board ID register, BIT reference voltage source, and analog input multiplexing class. For some applications, the board needs to be calibrated to function properly. Frequent maintenance is also recommended to check the physical state of the board and its connections.

The GE Fanuc IC697VAL134 analog-to-digital converter board is a microprocessors based electronic device that scans the inputs connected to it at a frequency of 40 kHz in order to automatically digitize the received signal at a preset 12-bit resolution. The analog-to-digital converter is capable of simultaneously monitoring up to 31 single-ended or 16 differential analog input channels in an input voltage range of +/-50 mV or +/-10V DC. The GE Fanuc IC697VAL134 analog-to-digital converter does not require any type of software pre-configuration before startup because it is a plug-and-play device that starts working right out of the box. The only thing the user needs to adjust is the setting of the ADC gain, which can be selected using jumpers rated x1, x10 and x100.

The GE Fanuc IC697VAL134 ADC board is an open structure with IP 20 environmental protection rating. This means that users are strongly advised to install this electronic board inside a protective housing, away from dirt, moisture, or any other source of contamination that could contaminate the device's internal circuitry. The operating temperature of the GE Fanuc IC697VAL134 ADC board should be maintained between -25 and +70 degrees Celsius (-13 and 158 degrees Fahrenheit). For applications in hotter or colder environments, properly rated climate control systems or forced ventilation systems may be required. Any necessary repair operations should only be performed by certified technicians.
