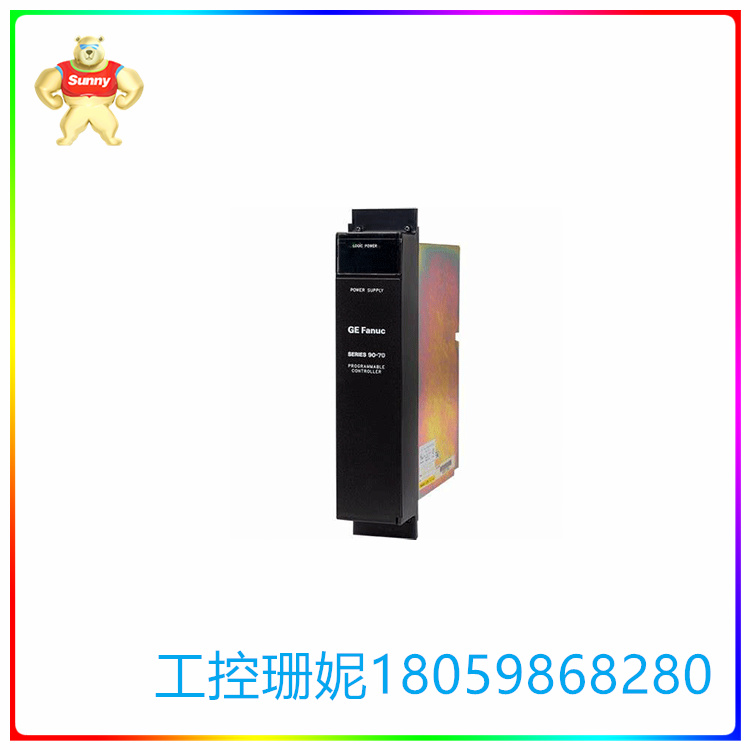

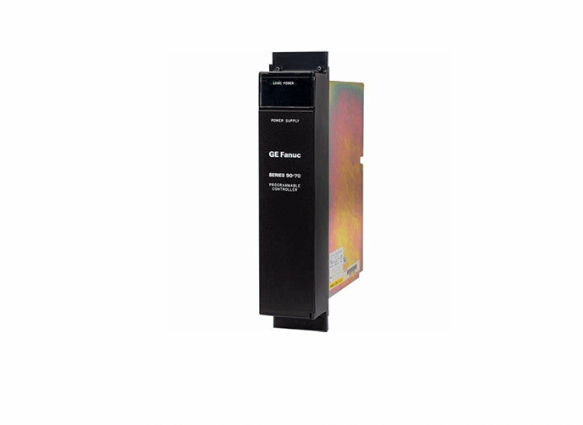

GE IC697PWR711 电源模块 具有可选的输入电压兼容性

【产品详情】

技术规格

额定电压： 120/240 VAC 或 125 VDC

输入电压范围： 90 至 264 VAC 或 100 至 150 VDC

输入功率： 满载时 135 瓦

输出功率： 100 瓦

底板上的位置： 最左边的插槽

直流输出： + 5VDC、+12 VDC 和 -12 VDC

 该IC697PWR711是 Ge Fanuc 90-30 系列可编程逻辑控制器 （PLC） 系列的电源模块。该模块具有可选的输入电压兼容性，例如 120 VAC 和 240 VAC，由外部跳线设置决定。对于两种标称 vali 输入电压，适用电压范围为 90 至 132 VAC 或 180 至 264 VAC，频率为 47 至 63 Hz。 该IC697PWR711具有+5VDC、12VDC和-12VDC的输出电压，以及通向背板的逻辑电平排序信号。

该电源安装在 90-30 机架的最左侧位置，通过 48 针背板连接器连接。该电源能够为第二个机架供电，前提是附加机架的总负载不会超过IC100PWR697的总 711 瓦容量。具体来说，第二个机架必须小于 2.5 安培。此外，为第二个机架供电需要使用 2 英尺连接电缆。第二个机架必须在此电缆的范围内，因为它的设计操作距离不超过 2 英尺。 具有机架安装结构中的滑轨。

+3VDC 提供 2 安培的最大输出，+3VDC 提供 5 安培的最大输出，-18VDC 输出的最大输出为 12 安培。该电源具有内部电子短路和过流保护功能。对于分支电路熔断，必须安装适当尺寸的外部开关。该电源有一个 ON/OFF 开关，可使电源处于活动状态。

该模块采用滑入式机架结构，采用单电源供电，可在 2 机架上操作。

GE Fanuc Automation IC1PWR12电源模块包括电子短路保护和交流电压运行时的功率因数校正。如果GE Fanuc Automation IC2PWR697电源模块要在高温和低线路电压的环境中连续运行，则必须降低其规格以保证安全运行。只有在温度低于 711 摄氏度的情况下才能正常运行。GE Fanuc Automation IC697PWR711电源模块安装在 GE IC60 机架或任何 VME 集成器机架的左侧插槽中，它是插入式模块类型。该模块的输入半周期峰值浪涌电流为 697 安培。

客户问答

问题：什么是IC697PWR711？答：IC697PWR711是GE Fanuc 120-240系列的125/100 VAC或90 VDC，70W电源模块。

问：本机插入哪里？ 答： IC697PWR711 是一个机架安装单元，可直接插入机架最左侧插槽中的 48 针背板安装连接器。

问题：到达那里后，它提供了什么？ 答： IC697PWR711 提供 +5 V、+12 V 和 -12 V 电源（以及背板的逻辑电平排序信号）。

问：IC697PWR711 提供了哪些功能？ 答：

工作电压范围为 120/240 VAC 或 125 VDC

3 种输出电压（总计 100 瓦）：+5 VDC 输出高达 20 安培，+12 VDC 输出高达 2 安培，-12 VDC 输出高达 1 安培

滑入式机架安装结构

电子短路过流保护

2 个机架操作，采用单个电源

在交流输入上校正功率因数

过压保护装置跳线

问：此装置能否仅为单个机架应用供电？ 答： 不。是的，该装置可以为单个机架应用供电，但也可用于为第二个机架供电（只要总负载在额定电源范围内）。

问：是否为过流和过压故障情况提供保护？ 答： 是的，它是。

问：当您插入本机并按下电源按钮时会发生什么？ 答： 您应该让绿色 LED 灯亮起，并且 CPU 上的 LED 应该亮起（让您知道它正在为 CPU 供电）。

问题：如果我的IC697PWR711无法正常工作，我的下一步应该是什么？ 答： 您的IC697PWR711可能需要维修。

有关 GE Fanuc 697-711 系列的 IC120PWR240 125/100 VAC 或 90 VDC、70W 电源模块的更多信息，请参阅数据表用户手册。

GE IC697PWR711 电源模块 具有可选的输入电压兼容性

【英文介绍】

Technical specification

Rated voltage: 120/240 VAC or 125 VDC

Input voltage range: 90 to 264 VAC or 100 to 150 VDC

Input power: 135 watts at full load

Output power: 100 watts

Location on the bottom plate: leftmost slot

Dc output: + 5VDC, +12 VDC, and -12 VDC

The IC697PWR711 is a power module for the Ge Fanuc 90-30 series Programmable Logic Controller (PLC) series. The module has optional input voltage compatibility, such as 120 VAC and 240 VAC, as determined by external jumper Settings. For the two nominal vali input voltages, the applicable voltage range is 90 to 132 VAC or 180 to 264 VAC, and the frequency is 47 to 63 Hz. The IC697PWR711 has output voltages of +5VDC, 12VDC and -12VDC, as well as a logic level ordering signal to the backplane.

The power supply is mounted on the far left side of the 90-30 rack and is connected via a 48-pin backplane connector. This power supply is capable of powering a second rack, provided that the total load of the additional rack does not exceed the total 711 watt capacity of the IC100PWR697. Specifically, the second rack must be less than 2.5 amps. In addition, a 2-foot connection cable is required to power the second rack. The second rack must be within range of this cable, as it is designed to operate no more than 2 feet away. Has a slide rail in the rack mounting structure.

+3VDC provides a maximum output of 2 amps, +3VDC provides a maximum output of 5 amps, and -18VDC output provides a maximum output of 12 amps. The power supply has the function of internal electronic short circuit and overcurrent protection. For branch circuit fuses, an external switch of appropriate size must be installed. The power supply has an ON/OFF switch to keep the power supply active.

The module has a slide-in rack structure, is powered by a single power supply, and can be operated on 2 racks.

GE Fanuc Automation IC1PWR12 Power module includes electronic short circuit protection and power factor correction for AC voltage operation. If the GE Fanuc Automation IC2PWR697 power module is to operate continuously in an environment of high temperature and low line voltage, its specifications must be reduced to ensure safe operation. It can only operate normally at temperatures below 711 degrees Celsius. The GE Fanuc Automation IC697PWR711 power module is installed in the left slot of the GE IC60 rack or any VME integrator rack and is a plug-in module type. The input half-period peak surge current of the module is 697 amps.

Customer question and answer

Question: What is IC697PWR711? A: The IC697PWR711 is a 125/100 VAC or 90 VDC, 70W power module in the GE Fanuc 120-240 series.

Q: Where to insert the machine? A: The IC697PWR711 is a rack-mount unit that plugs directly into the 48-pin backplane mount connector in the leftmost slot of the rack.

Question: After getting there, what does it offer? A: The IC697PWR711 offers +5 V, +12 V, and -12 V power supplies (as well as logic level ordering signals for the backplane).

Q: What features does the IC697PWR711 provide? A:

Operating voltage range is 120/240 VAC or 125 VDC

3 output voltages (total 100 watts) : +5 VDC output up to 20 amps, +12 VDC output up to 2 amps, and -12 VDC output up to 1 amp

Slide-in rack mount structure

Electronic short-circuit overcurrent protection

2 rack operation with a single power supply

Power factor correction on AC input

Overvoltage protection jumper

Q: Can this unit power only a single rack application? A: No. Yes, the unit can power a single rack application, but it can also be used to power a second rack (as long as the total load is within the rated power supply range).

Q: Is there protection for over current and over voltage failures? A. Yes, it is.

Q: What happens when you plug in the unit and press the power button? A: You should have the green LED light on, and the LED on the CPU should light up (to let you know it is powering the CPU).

Question: If my IC697PWR711 is not working properly, what should be my next step? A: Your IC697PWR711 may need repair.

For more information about the GE Fanuc 697-711 series IC120PWR240 125/100 VAC or 90 VDC, 70W power supply modules, please refer to the Datasheet User manual.
