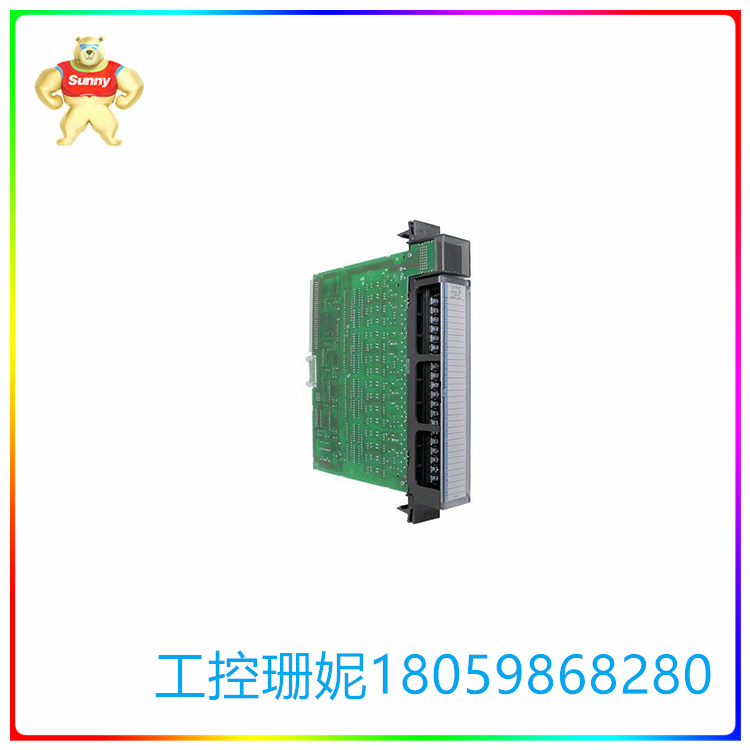

IC697MDL740  分立式输出模块 具有较高的浪涌容量

【产品详情】

GE Fanuc 分立式输出模块称为 IC697MDL740 分立式输出模块，经常与 GE 90-70 系列产品线中的可编程逻辑控制器或 PLC 一起使用。IC697MDL740离散输出模块与许多GE PLC设备配合使用，具有广泛的功能，有助于增强PLC系统和提高机器性能。IC697MDL740输出模块提供 16 个输出，需要 20 至 60 伏直流电压范围才能运行。输出的指定电流为每点 2 安培或每个输出组 4 安培。该特定模块的响应时间仅为 2 毫秒，其电压降不到 1 伏。

技术规格

额定电压： 24 或 48 伏直流电

输出数量： 16 个输出（4 组，每组 4 个）

输出电流： 每点 2 安培，每组 4 安培

所需电流： 0.15 安培

输出电压范围： 20 至 60 伏

直流电源： 是的

IC697MDL740分立式输出模块具有较高的浪涌容量，约为其额定电流值的10倍。指定的浪涌电流允许模块支持各种负载。该输出模块包括用于保险丝状态和设备开关状态更新的 LED 指示灯。所有 LED 指示灯都位于模块顶部。该模块还包括一种特定的键控技术，不允许安装不兼容的模块。这种安全功能可能很有价值，因为系统中的每个组件都必须满足应用模块的应用需求。IC697MDL740模块的配置过程很简单，可以通过多种方式完成。所有调整均在运行 Windows 操作系统的 PC 上执行。为了提供额外的保护，该模块可以购买带有保形涂层的保形涂层，这是一项可选功能。其他可选功能也可在工厂提供。

IC697MDL740  分立式输出模块 具有较高的浪涌容量

【英文介绍】

The GE Fanuc discrete output module is called the IC697MDL740 discrete output module and is often used with programmable logic controllers or PLCS in the GE 90-70 series product line. The IC697MDL740 discrete output module works with many GE PLC devices and has a wide range of features to help enhance PLC systems and improve machine performance. The IC697MDL740 output module offers 16 outputs and requires a DC voltage range of 20 to 60 volts to operate. The specified current for the output is 2 amps per point or 4 amps per output group. The response time of this particular module is only 2 milliseconds, and its voltage drop is less than 1 volt.

Technical specification

Rated voltage: 24 or 48 volts DC

Number of outputs: 16 outputs (4 sets of 4 each)

Output current: 2 amps per point, 4 amps per group

Required current: 0.15 amps

Output voltage range: 20 to 60 volts

Dc power supply: Yes

The IC697MDL740 split output module has a high surge capacity of about 10 times its rated current value. The specified surge current allows the module to support a variety of loads. The output module includes LED indicators for fuse status and device switch status updates. All LED indicators are located at the top of the module. The module also includes a specific keying technology that does not allow the installation of incompatible modules. This security feature can be valuable because each component in the system must meet the application requirements of the application module. The configuration process for the IC697MDL740 module is simple and can be done in a variety of ways. All adjustments are made on a PC running Windows. For additional protection, the module can be purchased with a conformal coating, which is an optional feature. Other optional features are also available at the factory.

IC697MDL740  分立式输出模块 具有较高的浪涌容量
