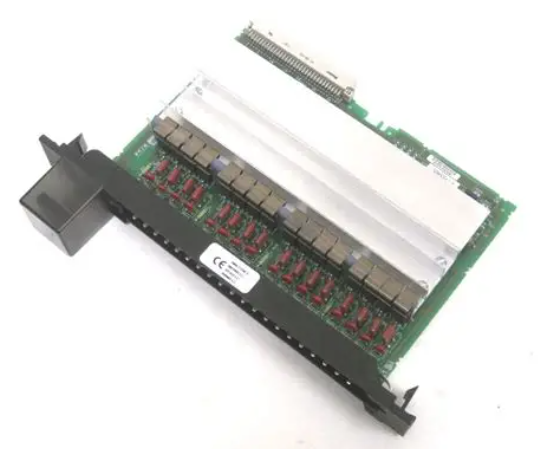

IC697MDL340 输出模块适用于大多数 4 号接触器

【产品详情】

技术规格

额定电压： 120 伏交流电

输出数量： 16 个输出（4 个隔离组，每组 4 个）

输出电流： 每点 2 安培，每组 4 安培

所需电流： 0.25 安培

频率： 47 至 63 赫兹

直流电源： 不

IC697MDL340输出模块是 GE Intelligent Platforms/GE Fanuc 的产品，作为 90-70 系列的成员制造。该模块具有 120 伏交流额定电压，共有 16 个点隔离在 4 个不同的组中。每个隔离组的容量为每组 4 安培，每点 2 安培，浪涌电流为 10 倍。这款 GE Fanuc 分立式输出模块旨在使输出点组能够作为交流电源的单独相位运行。它具有 4 组输出，分别使用额定电流为 10 安培的保险丝熔断。IC697MDL340输出模块提供高电平浪涌电流，使输出适用于多个白炽灯和电感负载。

这款 GE Fanuc IC697MDL340 输出模块适用于大多数 4 号接触器。它在设备顶部带有 LED 指示灯，用于显示电路 PLC 侧每个点的开/关状态。它还有一个 LED，显示分组在模块顶部的保险丝的状态。GE Fanuc IC697MDL340输出模块采用机械键控，从而保证了在现场可以使用相同类型的模块进行正确的更换。操作员可以执行I/O基准的配置，而无需跳线和DIP开关。GE Fanuc IC697MDL340输出模块兼容，可以与不同的负载设备配合使用，如电机启动器、螺线管和指示器。每个输出点的额定电流为 2 安培，这与每个点的长期容量有关。由于模块从内部散热，因此每组的电流容量限制为 4 安培。

IC697MDL340 输出模块适用于大多数 4 号接触器

【英文介绍】

Technical specification

Rated voltage: 120 volts AC

Number of outputs: 16 outputs (4 isolation groups, 4 per group)

Output current: 2 amps per point, 4 amps per group

Required current: 0.25 amps

Frequency: 47 to 63 Hz

Dc power supply: No

The IC697MDL340 output module is a product of GE Intelligent Platforms/GE Fanuc and is manufactured as a member of the 90-70 series. The module has a 120 volt AC rating and a total of 16 points isolated in 4 different groups. The capacity of each isolation group is 4 amps per group, 2 amps per point, and the surge current is 10 times. The GE Fanuc discrete output module is designed to enable groups of output points to operate as separate phases of an AC power supply. It has 4 sets of outputs, each using a fuse with a rated current of 10 amps. The IC697MDL340 output module provides high level inrush current, making the output suitable for multiple incandescent lamps and inductive loads.

The GE Fanuc IC697MDL340 output module is suitable for most number 4 contactors. It has an LED indicator on the top of the device to show the on/off status of each point on the PLC side of the circuit. It also has an LED that shows the status of fuses grouped at the top of the module. The GE Fanuc IC697MDL340 output module is mechanically keyed, thus ensuring that the same type of module can be correctly replaced in the field. Operators can perform configuration of I/O benchmarks without the need for jumpers and DIP switches. The GE Fanuc IC697MDL340 output module is compatible and can be used with different load devices, such as motor starters, solenids and indicators. Each output point has a rated current of 2 amps, which is related to the long-term capacity of each point. Because the modules dissipate heat from the inside, the current capacity of each set is limited to 4 amps.

IC697MDL340 输出模块适用于大多数 4 号接触器
