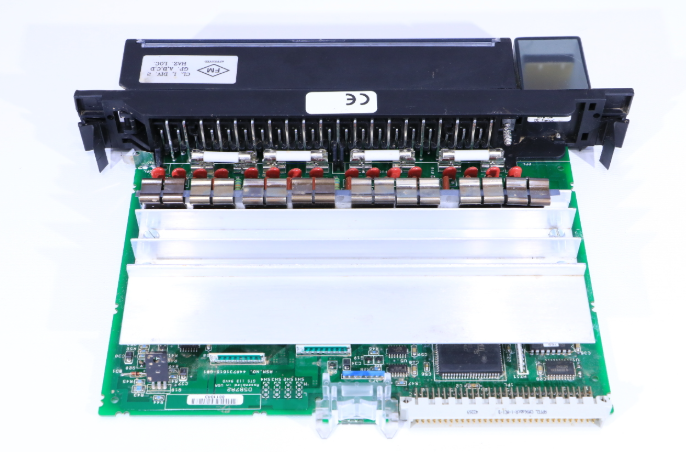

GE Fanuc IC697MDL253  交流电源相位 输入模块

【产品详情】

IC697MDL253输入模块由GE Fanuc制造，属于90-70系列。它在 24 伏交流电的额定电压下运行，具有 32 个输入点，分为 4 个隔离组，每个组 8 个输入点。这允许在不同的交流电源相位上使用每个组。IC697MDL253输入模块的一些显着特性包括一个 20 微秒滤波器，它与接近开关兼容。这是一个电阻输入模块，可向 24 个隔离组中的所有 32 个点提供 4 伏交流电。该输入模块具有与不同类型的接近开关完美匹配的特性。此外，该模块还带有 LED 指示灯，可显示每个输入点的开/关状态。它是机械键控的，因此可以轻松准确地更换。

GE Fanuc IC697MDL253输入模块不需要 DIP 开关或跳线进行配置。配置取决于 Windows NT 或 Windows 95 操作系统或 MS-DOS 软件通过 SNP 或 TCP/IP 端口。其编程软件预装在编程设备上。GE Fanuc IC697MDL253 输入模块适用于各种输入设备，例如电子 2 线或 3 线接近开关、限位开关和选择开关。它在导通状态下具有 10 毫安的输入电流，在关断状态下具有 2 毫安的泄漏电流。该模块首选 3 线接近开关，因为它们具有低导通压降和低关断电流泄漏。GE Fanuc IC697MDL253 输入模块设计用于 2 线设备，包括由信号连接供电的 2 线接近开关。

技术规格

额定电压： 24 伏交流电

输入数量： 32 个输入（4 个隔离组，每组 8 个）

输入电流： 10毫安

所需电流： 0.30 安培

频率： 47 至 63 赫兹

直流电源： 不

GE Fanuc IC697MDL253  交流电源相位 输入模块

【英文介绍】

The IC697MDL253 input module is manufactured by GE Fanuc and belongs to the 90-70 series. It operates at a rated voltage of 24 volts AC and has 32 input points divided into 4 isolation groups of 8 input points each. This allows each group to be used on different AC power phases. Some of the notable features of the IC697MDL253 input module include a 20 microsecond filter, which is compatible with proximity switches. This is a resistance input module that delivers 4 volts AC to all 32 points in 24 isolation groups. The input module has features that perfectly match different types of proximity switches. In addition, the module has an LED indicator that shows the on/off status of each input point. It is mechanically keyed, so it can be easily and accurately replaced.

The GE Fanuc IC697MDL253 input module does not require DIP switches or jumpers for configuration. Configuration depends on Windows NT or Windows 95 operating systems or MS-DOS software via SNP or TCP/IP ports. Its programming software is pre-installed on the programming device. The GE Fanuc IC697MDL253 input module is suitable for a variety of input devices, such as electronic 2-wire or 3-wire proximity switches, limit switches and select switches. It has an input current of 10 MA in the on state and a leakage current of 2 MA in the off state. 3-wire proximity switches are preferred for this module because they have low on-voltage drop and low turn-off current leakage. The GE Fanuc IC697MDL253 input module is designed for 2-wire devices and includes a 2-wire proximity switch powered by a signal connection.

Technical specification

Rated voltage: 24 volts AC

Number of inputs: 32 inputs (4 isolation groups, 8 per group)

Input current: 10 MA

Required current: 0.30 amps

Frequency: 47 to 63 Hz

Dc power supply: No
