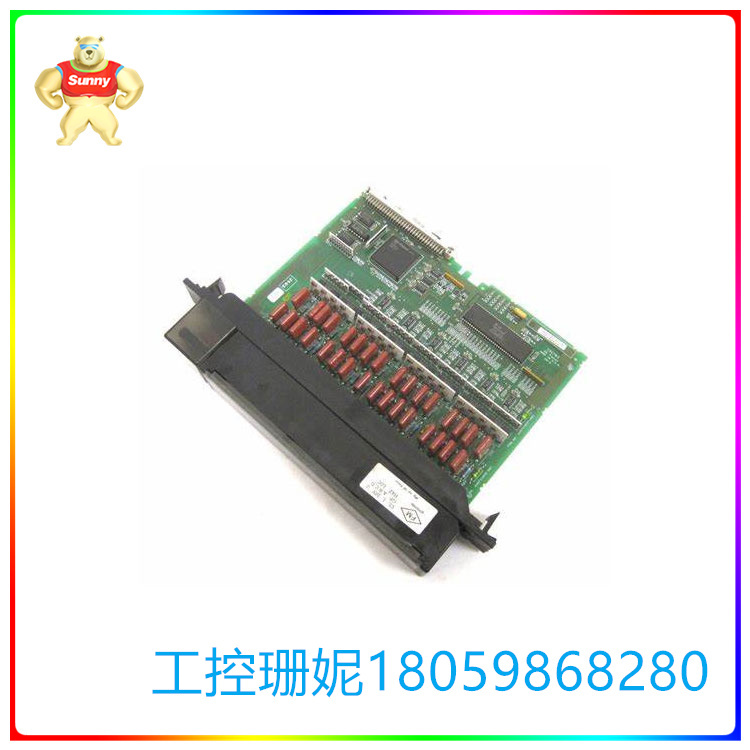

IC697MDL250 分立逻辑输入模块 由四个隔离组组成

【产品详情】

概述

特征：

各种内存大小

各种性能能力

高级功能

凭借其卓越的性能、功率和灵活性，GE Fanuc 的 90-70 系列 PLC 提供了全面的解决方案，可满足最苛刻的应用需求。凭借我们的 CPU 系列 CPU，90-70 系列为您的自动化提供了更多功能——更高的计算能力、更多的应用内存以及更多的通信和冗余功能。90-70 系列具有各种隔离式和高密度 VME 模拟 I/O 模块，可为各种应用提供更大的灵活性。

GE Fanuc 的 IC697MDL250 分立式输入模块有 32 个点，由四个隔离组组成，确保每组 120 个点可用于不同的交流电源相位。 该 20 VAC 模块配备 <> ms 输入滤波器，兼容接近开关。

IC697MDL250模块的无功输入符合 IEC 标准类型 2。此外，输入特性可与大量可用的接近开关配合使用。LED 指示电路逻辑/PLC 侧每个点的 ON-OFF 状态，并且很容易位于模块顶部。IC697MDL250模块采用机械键控，以保证使用类似的现场类型进行适当更换。I/O 基准电压源可由用户配置，无需跳线或 DIP 开关。通过MS-DOS或Windows编程软件完成配置，并且设备上已经安装了配置功能。

IC697MDL250模块可用于各种输入设备，包括按钮、限位开关或选择开关和电子接近开关（2 线或 3 线类型）。该模块的输入电路可实现低散热，从而有助于实现极高的可靠性和使用寿命。

该模块配有机械钥匙，有助于防止意外替换给定插槽中的类型。该键适合连接器下方电路板上特定形状的点。最初安装模块时，钥匙固定在背板中心导轨上。卸下模块后，钥匙会留在中心轨中，要求插槽只能采用相同的模块类型。如果用户在将钥匙连接到机架后需要更改机架中的模块位置，可以通过向上推并松开闩锁来卸下钥匙。然后可以根据需要重新插入密钥和模块。

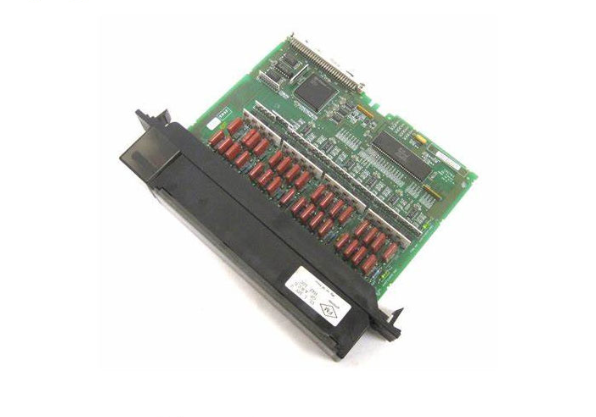

IC697MDL250 分立逻辑输入模块 由四个隔离组组成

【英文介绍】

summarize

Features:

Various memory sizes

Various performance capabilities

Advanced function

With their superior performance, power and flexibility, GE Fanuc's 90-70 series PLCS provide a comprehensive solution to meet the most demanding application needs. With our CPU family of cpus, the 90-70 series gives you more for your automation - more computing power, more application memory, and more communication and redundancy. The 90-70 series features a variety of isolated and high-density VME analog I/O modules that provide greater flexibility for a variety of applications.

GE Fanuc's IC697MDL250-part vertical input module has 32 points and consists of four isolation groups, ensuring that each group of 120 points can be used for different AC power phases. The 20 VAC module is equipped with a <> ms input filter and is compatible with proximity switches.

The reactive power input of the IC697MDL250 module complies with IEC standard Type 2. In addition, the input characteristics can be used with a large number of available proximity switches. The LED indicates the on-off status of each point ON the logic /PLC side of the circuit and is easily located on top of the module. The IC697MDL250 module is mechanically keyed to ensure proper replacement with similar field types. The I/O reference voltage source can be configured by the user without the need for jumpers or DIP switches. The configuration is done via MS-DOS or Windows programming software, and the configuration function is already installed on the device.

The IC697MDL250 module can be used with a variety of input devices, including buttons, limit switches or select switches and electronic proximity switches (2 - or 3-wire types). The input circuit of the module enables low heat dissipation, which contributes to extremely high reliability and service life.

The module comes with a mechanical key that helps prevent accidental replacement of types in a given slot. The key fits a specific shaped point on the circuit board below the connector. When the module is initially installed, the key is secured to the center guide rail of the backplane. When the module is removed, the key is left in the center rail, requiring the slot to be of the same module type only. If the user needs to change the module position in the rack after connecting the key to the rack, the key can be removed by pushing up and releasing the latch. The keys and modules can then be reinserted as needed.

IC697MDL250 分立逻辑输入模块 由四个隔离组组成
