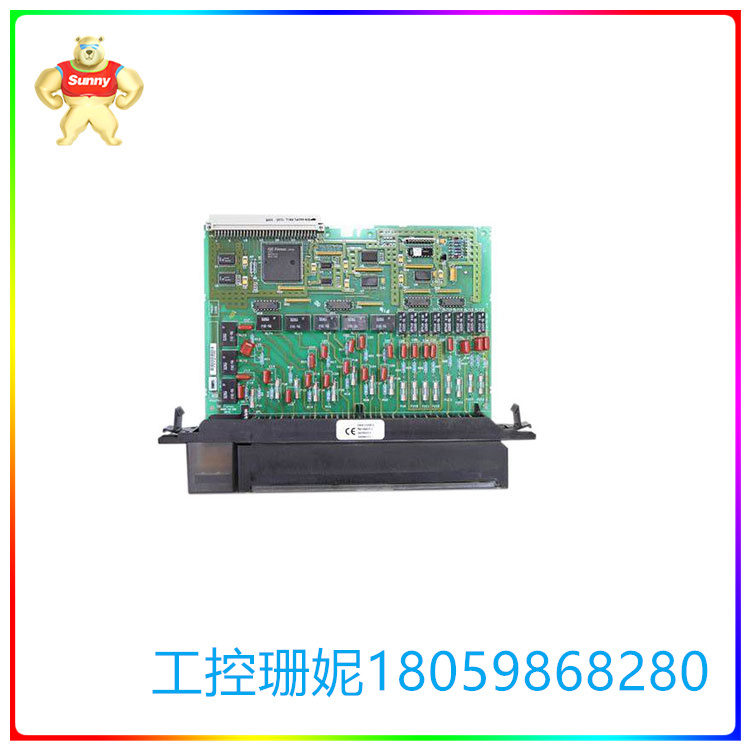

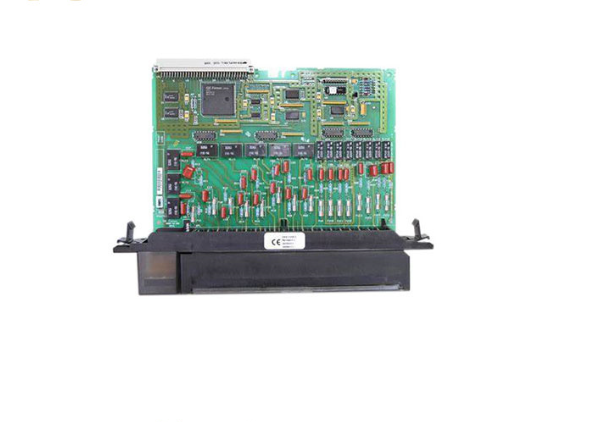

IC697MDL241 GE Fanuc 制造的分立式输入模块

【产品详情】

IC697MDL241 输入模块是 GE Fanuc 制造的分立式输入模块，是 90-70 系列的一部分。它工作在 240 伏交流额定电压下，具有 16 个独立的隔离点，输入滤波时间为 20 毫秒，并兼容接近开关。该模块设计用于可编程逻辑控制器 （PLC），每个隔离输入可用作单个交流电源相位。它还具有与IEC标准电流-电压特性相抗的输入，这些特性与不同的接近开关兼容。GE Fanuc IC697MDL241模块具有 LED，用于指示电路逻辑侧每个点的开/关状态。LED 位于模块顶部。

GE Fanuc IC697MDL241 分立式输入模块采用机械键控，可在现场轻松更换相应的模块类型。用户可以配置 I/O 参考，不需要 DIP 跳线或开关。这些配置可以通过 Windows NT 或 Windows 95 操作系统上运行的 Windows 或 MS-DOS 编程软件的配置功能通过 SNP 端口或以太网 TCP/IP 端口完成。预装编程软件配置功能。IC697MDL241模块与一系列输入设备相匹配，例如限位开关、选择开关、按钮以及 2 线和 3 线电子接近开关。IC697MDL241模块具有电容式输入电路，可确保低散热，这有助于模块的可靠性和长寿命。它在导通状态下的典型输入电流为 10 毫安，在关断状态下还可以吸收高达 5 毫安的漏电流。

IC697MDL241 GE Fanuc 制造的分立式输入模块

【英文介绍】

The IC697MDL241 input module is a separate input module manufactured by GE Fanuc as part of the 90-70 series. It operates at a 240 volt AC rating, has 16 separate isolation points, an input filtering time of 20 ms, and is compatible with proximity switches. The module is designed for programmable logic controllers (PLCS) where each isolated input can be used as a single AC power phase. It also has inputs that are resistant to IEC standard current-voltage characteristics, which are compatible with different proximity switches. The GE Fanuc IC697MDL241 module has an LED that indicates the on/off status of each point on the logic side of the circuit. The LED is located on top of the module.

The GE Fanuc IC697MDL241 discrete input module is mechanically keyed, allowing for easy replacement of the corresponding module type in the field. Users can configure the I/O reference without the need for DIP jumpers or switches. These configurations can be done via the configuration functions of Windows or MS-DOS programming software running on Windows NT or Windows 95 operating systems via SNP ports or Ethernet TCP/IP ports. Pre-installed programming software configuration function. The IC697MDL241 module is matched to a range of input devices, such as limit switches, select switches, buttons, and 2 - and 3-wire electronic proximity switches. The IC697MDL241 module has a capacitive input circuit that ensures low heat dissipation, which contributes to the reliability and long life of the module. It has a typical input current of 10 milliamps in the on-state and can also absorb up to 5 milliamps in the off state.

IC697MDL241 GE Fanuc 制造的分立式输入模块
