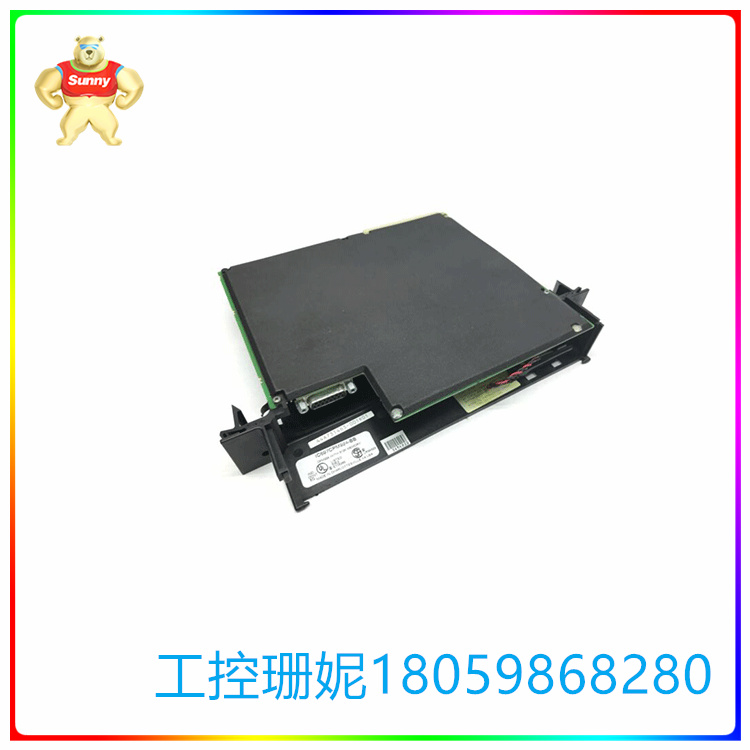

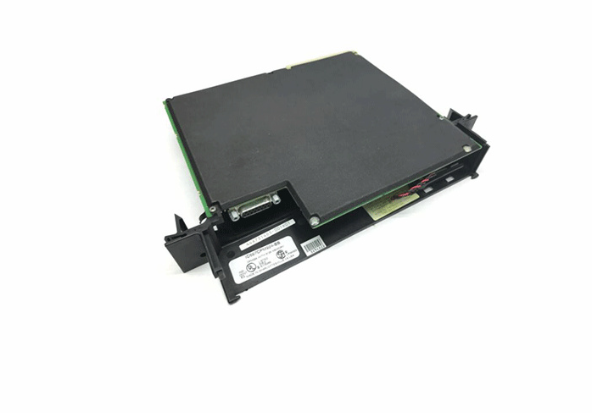

GE Fanuc  IC697MDL240 分立式输入模块 16 个隔离输入点

【产品详情】

技术规格

额定电压： 120 伏交流电

输入数量： 16 个输入（隔离）

输入电流： 10毫安

所需电流： 0.25 安培

频率： 60赫兹

直流电源： 不

GE Fanuc IC697MDL240 分立式输入模块是 GE Fanuc 的产品，作为 GE 90-70 系列 PLC 产品线的一部分制造。该输入模块具有 16 个隔离输入点，额定电压为 120 伏交流电，输入滤波器延迟时间为 20 毫秒，隔离设计用于实现各种交流电源相位和输入之间的连接。它还带有具有电流-电压特性的无功输入，支持各种 2 线或 3 线接近开关。它的顶部有 LED，指示 PLC 上点的开/关状态。IC697MDL240 分立式输入模块具有机械键控功能，无需使用 DIP 跳线或开关即可进行 I/O 配置。

IC697MDL240模块的配置是通过 Windows NT 或 Windows 95 操作系统上运行的 Windows 或 MS-DOS 编程软件通过 SNP 端口或以太网 TCP/IP 端口完成的。编程软件的配置功能安装在用于编程的设备上。IC697MDL240模块从背板上的 0 伏总线中消耗 25.5 安培。它还配备了一个特殊的机械钥匙，该钥匙具有安装区域，以增强模块类型的正确替换。在第一次安装时，此机械钥匙用螺栓固定在背板中心导轨上。在进行更换时，以前的 fit 键允许安装类似的模块。电容式输入电路提供了散热空间，并提供了高水平的可靠性和长寿命。在导通状态下，典型电流为 10 毫安，在关断状态下，该模块还可以向输入设备吸收高达 4 毫安的漏电流。

GE Fanuc  IC697MDL240 分立式输入模块 16 个隔离输入点

【英文介绍】

Technical specification

Rated voltage: 120 volts AC

Number of inputs: 16 inputs (isolated)

Input current: 10 MA

Required current: 0.25 amps

Frequency: 60 Hz

Dc power supply: No

The GE Fanuc IC697MDL240 split input module is a product of GE Fanuc and is manufactured as part of the GE 90-70 series PLC product line. The input module has 16 isolated input points with a rated voltage of 120 V AC and an input filter delay time of 20 ms. The isolation is designed to enable connections between various AC power supply phases and inputs. It also comes with a reactive power input with current-voltage characteristics and supports a variety of 2-wire or 3-wire proximity switches. It has an LED on top that indicates the on/off status of the points on the PLC. The IC697MDL240 split input module features mechanical keysing for I/O configuration without the use of DIP jumpers or switches.

Configuration of the IC697MDL240 module is done via a SNP port or Ethernet TCP/IP port via Windows or MS-DOS programming software running on Windows NT or Windows 95 operating systems. The configuration function of programming software is installed on the device used for programming. The IC697MDL240 module consumes 25.5 amps from the 0 volt bus on the backplane. It also comes with a special mechanical key that has a mounting area to enhance the correct replacement of module types. During the first installation, this mechanical key is bolted to the center guide rail of the backplane. The previous fit key allowed a similar module to be installed when a replacement was made. Capacitive input circuits provide space for heat dissipation and provide a high level of reliability and long life. In the on state, the typical current is 10 ma, and in the off state, the module can also absorb up to 4 mA of leakage current to the input device.
