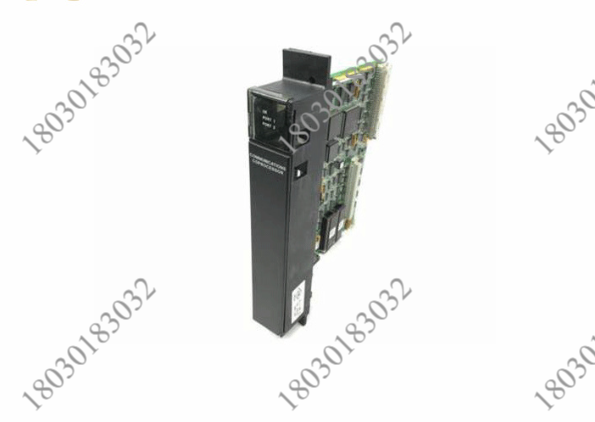

GE IC697CPU771 单插槽 CPU 可扩展的中央处理器

【产品详情】

技术规格

模块类型： 可扩展的中央处理器

插槽数量： 1 （单插槽）

所需电流： 1.1 安培

点数： 2K 输入和输出（任意混音）

串口： 一

支持： IC660/IC661 I/O 和 IC697 I/O

 IC697CPU771是用于可编程逻辑控制器 （PLC） 90-70 系列平台的中央处理器 （CPU） 模块。该 CPU 模块以前由 GE Fanuc Automation 生产，但最近被 Emerson Automation 收购。IC697CPU771等 CPU 模块是 PLC 组件的重要组成部分，因为 CPU 负责处理用户逻辑以实现所需的自动化。该IC697CPU771配备了 80C186 微处理器，处理速度为 12 MHz，每条布尔指令的布尔执行速度为 0.4 微秒。该处理器设计为能够容纳高达 2KB 的离散输入和输出，类似地，它支持高达 8 K 的模拟输入和输出。该IC697CPU771与使用 Logicmaster 90-70 编程软件、VersaPro 专业版和 Proficy Machine Edition Logic Developer PLC 专业版开发的用户程序一起下载。这些软件包提供直观的用户界面，提供用户友好的编程环境。IC697CPU771支持安装额外的 512 KB 扩展内存。它还支持密码控制访问，以限制用户程序内容的可访问性。它配备了三 （3） 个状态 LED 指示灯，指示模块正常、运行和当前启用的输出。该 CPU 模块支持通过 VME C.697 标准格式在机架安装背板（IC750CHS782、783、790、791、1）上使用 I/O 和智能选件模块进行操作。它还兼容所有 IC697 LAN 接口模块、协处理器模块、总线控制器和通信模块。IC697CPU697处理器支持所有 IC771 系列的分立和模拟 I/O 模块。

IC697CPU771模块是用于GE Fanuc 90-70系列PLC的可扩展CPU模块，通过连接扩展存储器板，可以支持高达512 KB CMOS RAM的程序和数据存储器。CMOS扩展存储器板提供64、128、256或512 KB的RAM容量选项。锂电池（目录号 IC697ACC701）位于主 CPU 板上。在IC697CPU771模块上安装CMOS RAM板需要使用编程器初始化模块。安装人员必须参考相关的安装手册以确保正确安装。

GE IC697CPU771  单插槽 CPU 可扩展的中央处理器

【英文介绍】

Technical specification

Module type: scalable central processing unit

Number of slots: 1 (single slot)

Required current: 1.1 amps

Points: 2K input and output (any mix)

Serial port: one

Support: IC660/IC661 I/O and IC697 I/O

The IC697CPU771 is a central processing unit (CPU) module for Programmable Logic Controller (PLC) 90-70 series platforms. The CPU module was previously manufactured by GE Fanuc Automation, but was recently acquired by Emerson Automation. CPU modules such as the IC697CPU771 are an important part of the PLC component because the CPU is responsible for processing the user logic to achieve the desired automation. The IC697CPU771 is equipped with an 80C186 microprocessor with a processing speed of 12 MHz and a Boolean execution speed of 0.4 microseconds per Boolean instruction. The processor is designed to accommodate discrete inputs and outputs of up to 2KB, and similarly, it supports analog inputs and outputs of up to 8K. The IC697CPU771 is downloaded with user programs developed using Logicmaster 90-70 programming software, VersaPro Professional Edition and Proficy Machine Edition Logic Developer PLC Professional Edition. These packages provide an intuitive user interface and provide a user-friendly programming environment. The IC697CPU771 supports the installation of an additional 512 KB of extended memory. It also supports password-controlled access to limit the accessibility of the user's program content. It is equipped with three (3) status LED indicators indicating that the module is normal, operating, and currently enabled output. The CPU module supports the use of I/O and smart option modules on the rack-mount backplanes (IC750CHS782, 783, 790, 791, 1) in the VME C.697 standard format. It is also compatible with all IC697 LAN interface modules, coprocessor modules, bus controllers and communication modules. The IC697CPU697 processor supports all discrete and analog I/O modules of the IC771 family.

The IC697CPU771 module is an expandable CPU module for GE Fanuc 90-70 series PLCS that can support program and data memory up to 512 KB of CMOS RAM by connecting an expansion memory board. CMOS extended memory boards are available in 64, 128, 256, or 512 KB RAM capacity options. The lithium battery (catalog number IC697ACC701) is located on the main CPU board. Installing a CMOS RAM board on the IC697CPU771 module requires the module to be initialized using a programmer. Installation personnel must refer to the installation manual to ensure correct installation.
