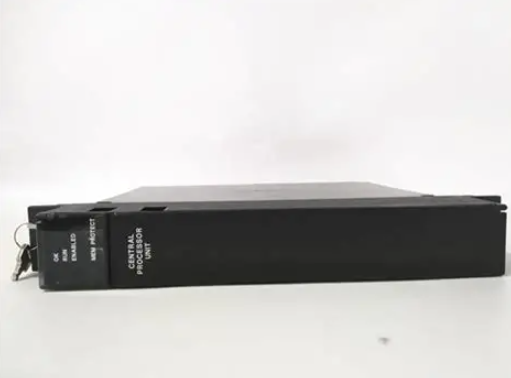

GE Fanuc CPU模块 IC697CPM924 可编程逻辑控制器系统兼容

【产品详情】

技术规格

模块类型： 浮点 CPU

插槽数量： 1 （单插槽）

记忆： 512K 内存

点数： 12K 独立 I/O

串口： 一

支持： IC660/IC661 I/O 和 IC697 I/O

IC697CPM924模块是GE Fanuc CPU模块，与GE系列90-70可编程逻辑控制器系统兼容。IC697CPM924模块是一个 32 位 CPU，其微处理器的时钟频率为 64 兆赫兹。除了定点运算外，CPU还支持浮点运算。CPU 模块上总共有 1 兆字节的 RAM 可用。可更换的锂电池在主电源故障的情况下为 RAM 提供备用电源。锂电池在 10 华氏度环境温度下的额定保质期为 68 年。如果 PLC 机架电源被移除，电池可以为 RAM 提供备用电源，以便存储的应用程序数据在标称期限内保留 6 个月。在安装新电池之前，需要取出旧电池。

IC697CPM924 CPU 模块的工作温度范围为 0 至 60 摄氏度。如果环境温度超过此范围，则性能可能会下降，极端高温甚至会导致模块故障。IC697CPM924模块上时间时钟的精度最大为每天 3.5 秒。经过的时间时钟精度最大为 0.1%。IC697CPM924模块支持软件配置，包括集成串行端口、总线变送器 PLC 模块上的并行端口以及可选的以太网模块，该模块可用于连接到运行配置软件的计算机。IC697CPM924模块的操作由 3 位 RUN/STOP 开关控制，或从编程计算机远程控制。在安装模块之前，应从 PLC 机架上拔下电源。

GE Fanuc CPU模块 IC697CPM924 可编程逻辑控制器系统兼容

【英文介绍】

Technical specification

Module type: floating point CPU

Number of slots: 1 (single slot)

Memory: 512K memory

Count: 12K independent I/O

Serial port: one

Support: IC660/IC661 I/O and IC697 I/O

The IC697CPM924 module is a GE Fanuc CPU module that is compatible with GE series 90-70 programmable logic controller systems. The IC697CPM924 module is a 32-bit CPU with a microprocessor clock rate of 64 MHZ. In addition to fixed-point operations, the CPU also supports floating-point operations. A total of 1 Megabyte of RAM is available on the CPU module. The replaceable lithium battery provides backup power to the RAM in the event of a primary power failure. Lithium batteries have a rated shelf life of 68 years at ambient temperatures of 10 degrees Fahrenheit. If the PLC rack power supply is removed, the battery can provide backup power to the RAM so that the stored application data is retained for a nominal period of 6 months. Before installing the new battery, you need to remove the old battery.

The IC697CPM924 CPU module operates from 0 to 60 degrees Celsius. If the ambient temperature exceeds this range, performance may deteriorate, and extreme high temperatures may even cause module failure. The accuracy of the time clock on the IC697CPM924 module is up to 3.5 seconds per day. The elapsed time clock has a maximum accuracy of 0.1%. The IC697CPM924 module supports software configurations, including an integrated serial port, a parallel port on the bus transmitter PLC module, and an optional Ethernet module that can be used to connect to the computer running the configuration software. The operation of the IC697CPM924 module is controlled by a 3-bit RUN/STOP switch or remotely from the programming computer. The power supply should be unplugged from the PLC rack before installing the module.
