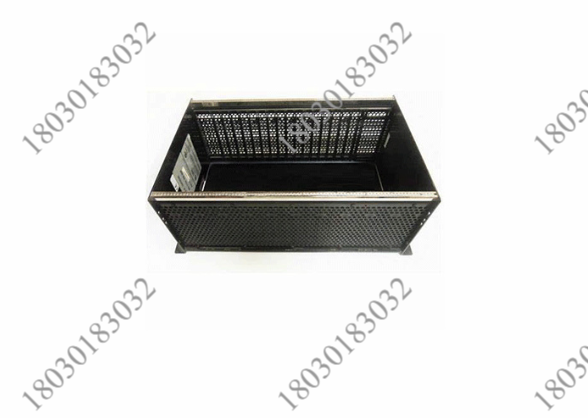

IC697CHS790  可编程控制器机架  9 插槽后置安装机架

【产品详情】

技术规格

模块类型： 标准机架

安装位置： 后部（面板）

插槽数量： 9（加电源）

类型： 双倍宽度

尺寸： 11.15 x 19.00 x 7.5 英寸（高 x 宽 x 深）

使用的内部功率： 20 安培 @ 5 VDC

IC697CHS790 是一款 9 插槽后置安装机架，是 90-70 系列可编程逻辑控制器 （PLC） 系列的一部分，该系列以前由 GE Fanuc Automation 提供，现在隶属于 Emerson Automation。该硬件通过可用的电子安装槽为任何 IC697 模块提供安装位置。它允许任何已安装的模块连接到背板以接收背板电源并与通信适配器或中央处理器 （CPU） 通信。

IC697CHS790安装插槽适用于任何 IC697 模块。还提供了另一个安装槽，用于安装机架电源。该机架尺寸为 11.15 高 x 19 宽 x 7.5 深（283 毫米 x 483 毫米 x 190 毫米），支持扩展 I/O，其中可以扩展额外的两 （2） 个机架并共享相同的电源模块。

IC697CHS790机架是GE Fanuc的可编程控制器机架。它的额定电流为 20 安培，额定电压为 5 伏直流电。它是 90-70 系列控制器机架，具有 9 个安装插槽。它用于工业自动化它可以配置 CPU 和输入/输出模块。它被安置在一个深度为 10 英寸的外壳内。它体积小巧，尺寸为深 7.5 英寸、宽 19 英寸和高 11.15 英寸。IC697CHS790机架不需要带有输入/输出模块的插槽或跳线。IC697CHS790机架通过使用单个电源单元来满足扩展的 I/O 要求，从而为 2 机架操作提供条件。该模块支持插槽寻址。它允许用户配置开关和跳线的 I/O 点参考。

IC697CHS790机架具有机械联锁功能，可防止意外或未经授权的将一个模块互换为另一个模块。线束从端子板底部运输，以保护端子板外壳。IC697CHS790机架支持将电源延长线作为附件。在通电之前，必须固定延长电缆。为了降低机架中的系统抗噪性，必须固定电源安装，GND 端子应连接到机架的任一侧，并接地。IC697CHS790机架还带有一个带有机架底部导轨的接地防护罩。机架的设计符合 VME 标准。

IC697CHS790  可编程控制器机架  9 插槽后置安装机架

【英文介绍】

Technical specification

Module type: Standard rack

Installation position: Rear (panel)

Number of slots: 9 (plus power)

Type: Double width

Dimensions: 11.15 x 19.00 x 7.5 inches (H x W x D)

Internal power used: 20 amps @ 5 VDC

The IC697CHS790 is a 9-slot rear-mount rack that is part of the 90-70 series Programmable Logic controller (PLC) family, previously offered by GE Fanuc Automation and now part of Emerson Automation. The hardware provides a mounting location for any IC697 module through an available electronic mounting slot. It allows any installed module to be connected to the backplane to receive backplane power and communicate with a communications adapter or central processing unit (CPU).

The IC697CHS790 installation slot is suitable for any IC697 module. Another mounting slot is also provided for mounting the rack power supply. The rack measures 11.15 H x 19 W x 7.5 D (283 mm x 483 mm x 190 mm) and supports extended I/O, where an additional two (2) racks can be extended and share the same power module.

The IC697CHS790 rack is a GE Fanuc programmable controller rack. It has a rated current of 20 amps and a rated voltage of 5 volts DC. It is a 90-70 series controller rack with 9 mounting slots. It is used in industrial automation and it can be configured with CPU and input/output modules. It is housed in a shell with a depth of 10 inches. It is small in size, measuring 7.5 inches deep, 19 inches wide and 11.15 inches high. The IC697CHS790 rack does not require slots or jumpers with input/output modules. The IC697CHS790 rack meets extended I/O requirements by using a single power supply unit, enabling 2-rack operation. This module supports slot addressing. It allows users to configure switches and jumpers for I/O point reference.

The IC697CHS790 rack has a mechanical interlocking function that prevents accidental or unauthorized swapping of one module for another. The harness is transported from the bottom of the terminal board to protect the terminal board housing. The IC697CHS790 rack supports a power extension cable as an accessory. The extension cable must be fixed before power is applied. To reduce the noise resistance of the system in the rack, the power supply must be fixed, and the GND terminal should be connected to either side of the rack and grounded. The IC697CHS790 frame also comes with a ground shield with rack bottom rail. The frame is designed to meet VME standards.
