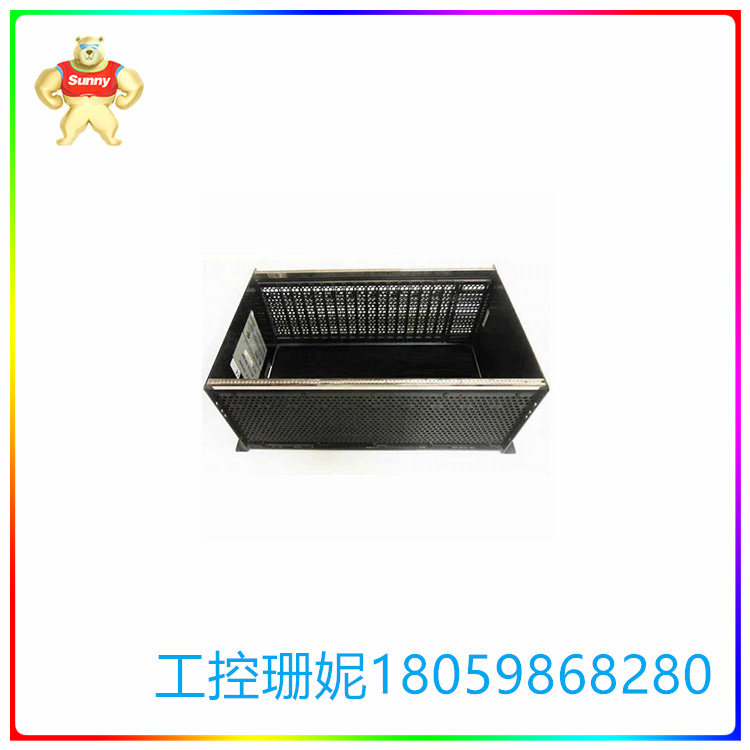

IC697CHS782 VME 集成机架 具有 17 个插槽

【产品详情】

技术规格

模块类型： VME 集成商机架

安装位置： 后部（面板）

插槽数量： 17 个单人或 8 个双人（加电源）

类型： 单宽或双宽

尺寸： 11.15 x 19.00 x 7.5 英寸（高 x 宽 x 深）

使用的内部功率： 20 安培 @ 5 VDC

IC697CHS782机架是由GE Fanuc设计的集成机架。此 GE 系列 90-70 机架在后置配置中具有 17 个插槽。机架可以连接到间距为 0.8 英寸的模块。该机架可以与不同的GE IC697 PLC模块集成。该机架与第三方 VME 模块兼容，并且可以与 CPU、不同的 I/O 配置以及其他设备和应用程序集成。积分器使用放置在 0.8 英寸中心的背板连接器运行。机架只需一个电源单元即可实现多个机架操作。它能够轻松运行高电流配置。IC697CHS782机架支持可选的风扇组件，可用于大功率模块。

IC697CHS782积分器机架的安装必须留出足够的气流空间，以便进行设备冷却。机架和最近的通风源之间的气流不应受阻。这种冷却方法称为对流冷却。安装要求由应用和所使用的订购机架决定。操作人员需要正确使用安装法兰，这些法兰在机架的安装和更换中起着重要作用。要配置IC697CHS782机架，机架的背板上需要一对跳线。这些跳线增加了模块安装的灵活性。VME 集成器机架可以接受 AC/DC 插头，并使用外部电源轻松操作。它提供插槽寻址，允许操作员在不使用任何额外附件的情况下配置 I/O 点。IC697CHS782机架使用底部导轨进行屏蔽接地。环境工作温度范围应与指定的器件温度范围相匹配。

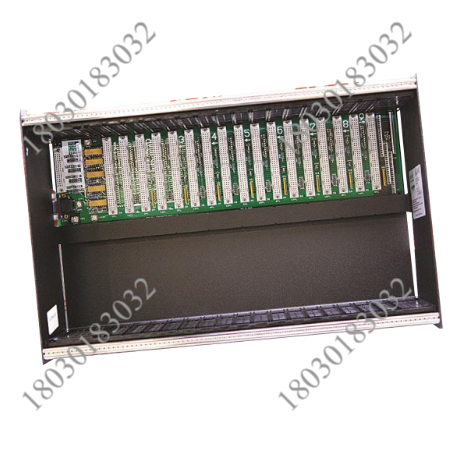

IC697CHS782 VME 集成机架 具有 17 个插槽

【英文介绍】

Technical specification

Module type: VME integrator rack

Installation position: Rear (panel)

Number of slots: 17 single or 8 double (plus power)

Type: Single width or double width

Dimensions: 11.15 x 19.00 x 7.5 inches (H x W x D)

Internal power used: 20 amps @ 5 VDC

The IC697CHS782 rack is an integrated rack designed by GE Fanuc. This GE series 90-70 rack has 17 slots in a rear configuration. The rack can be connected to modules with a spacing of 0.8 inches. The rack can be integrated with different GE IC697 PLC modules. The rack is compatible with third-party VME modules and can be integrated with cpus, different I/O configurations, and other devices and applications. The integrator operates using a backplane connector placed in the 0.8 "center. Rack A single power supply unit enables multiple rack operations. It can easily run in high current configurations. The IC697CHS782 rack supports optional fan components for high-power modules.

The IC697CHS782 integrator rack must be installed with sufficient airflow space for equipment cooling. The airflow between the frame and the nearest ventilation source should not be obstructed. This cooling method is called convection cooling. Installation requirements are determined by the application and the ordered rack used. The operator needs to properly use the mounting flanges, which play an important role in the installation and replacement of the frame. To configure the IC697CHS782 rack, a pair of jumpers are required on the backplane of the rack. These jumpers increase the flexibility of module installation. The VME integrator rack can accept AC/DC plugs and is easily operated using an external power supply. It provides slot addressing, allowing operators to configure I/O points without using any additional accessories. The IC697CHS782 rack is shielded and grounded using the bottom guide rails. The ambient operating temperature range should match the specified device temperature range.

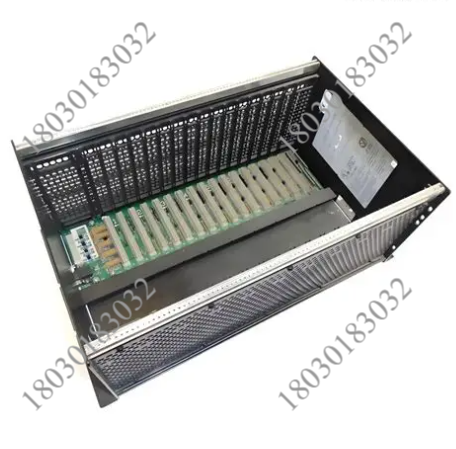

IC697CHS782 VME 集成机架 具有 17 个插槽
