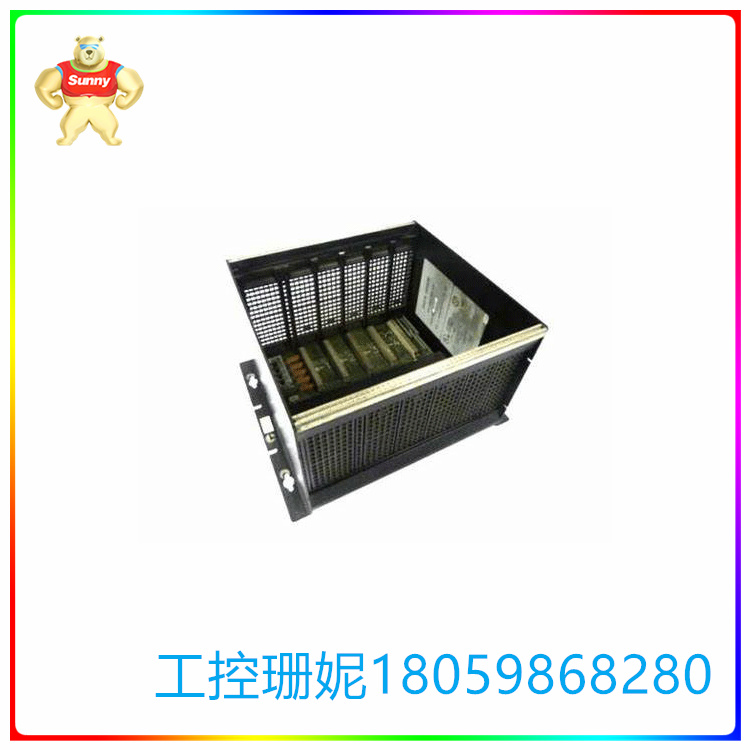

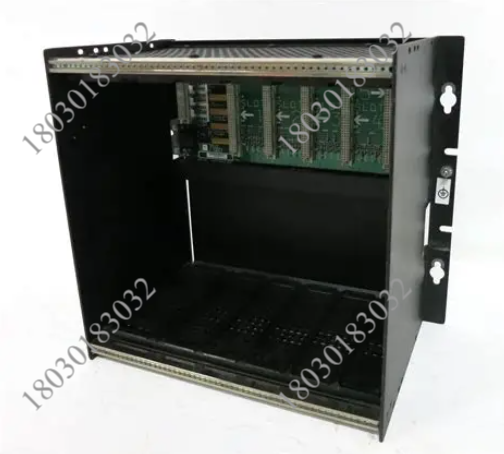

GE Fanuc IC697CHS750 标准机架 配备了 5 个插槽

【产品详情】

技术规格

模块类型： 标准机架

安装位置： 后部（面板）

插槽数量： 5 （加电源）

类型： 双倍宽度

尺寸： 11.15 x 12.60 x 7.5 英寸（高 x 宽 x 深）

使用的内部功率： 20 安培 @ 5 VDC

 GE Fanuc 系列 90-70 IC697CHS750 I/O 机架的额定电流为 20 安培。它采用 5 伏直流电源供电。机架支持其他附件，包括背板 J2 跳线套件，这在安装过程中很有用。机架配有可拆卸接线端子，可通过铰链门进入。连接到机架的电缆穿过铰链门的底部。机架侧面有一个 I/O 端子约束带，可将端子牢固地固定到位。电源连接器与垫片一起位于机架内侧。通过使用接地措施可以消除系统噪声。

IC697CHS750机架是GE Fanuc制造的I/O机架。它将GE系列90-70 PLC产品线中的不同组件和模块连接在一起。它配备了 5 个插槽，并具有后部安装机构。机架有一个开放式外壳，仅适合室内使用。它可以很容易地安装在工厂车间。在 5 个插槽中连接的组件可以在模块位置的左侧有自己的独立电源。机架尺寸紧凑，重约 2 公斤。它的尺寸为高 11.15 英寸、宽 12.60 英寸和深 7.5 英寸。机架的外壳深 254 毫米。IC697CHS750架使用气流来防止过热。对于对流冷却，I/O 机架和最近的出风口之间的空气流动不应受到阻碍。

 GE Fanuc IC697CHS750 标准机架 配备了 5 个插槽

【英文介绍】

Technical specification

Module type: Standard rack

Installation position: Rear (panel)

Number of slots: 5 (plus power)

Type: Double width

Dimensions: 11.15 x 12.60 x 7.5 inches (H x W x D)

Internal power used: 20 amps @ 5 VDC

GE Fanuc Series 90-70 IC697CHS750 I/O racks are rated for 20 amps. It is powered by a 5 volt DC supply. The rack supports other accessories, including the backplane J2 jumper kit, which is useful during the installation process. The rack is equipped with detachable terminals and can be accessed through hinged doors. Cables connected to the rack run through the bottom of the hinged door. There is an I/O terminal restraint band on the side of the rack that holds the terminals firmly in place. The power connector is located inside the frame along with the gasket. System noise can be eliminated by using grounding measures.

The IC697CHS750 rack is an I/O rack manufactured by GE Fanuc. It connects the different components and modules in the GE series 90-70 PLC product line together. It is equipped with 5 slots and has a rear mounting mechanism. The rack has an open housing and is suitable for indoor use only. It can be easily installed on the factory floor. Components connected in the 5 slots can have their own independent power supply on the left side of the module location. The frame is compact and weighs about 2 kg. Its dimensions are 11.15 inches high, 12.60 inches wide and 7.5 inches deep. The housing of the frame is 254 mm deep. The IC697CHS750 uses airflow to prevent overheating. For convective cooling, the flow of air between the I/O frame and the nearest outlet should not be impeded.

 GE Fanuc IC697CHS750 标准机架 配备了 5 个插槽
