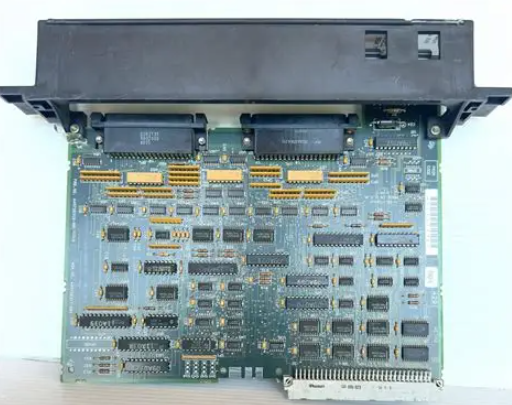

IC697BEM764 通信模块 具有多个主站具有高速数据传输速率

【产品详情】

IC697BEM764模块是GE Fanuc制造的通信模块。它是GE系列90-70 PLC通信模块。该通信接口模块使用 VME 或 VERSA 模块 Eurocard 总线，有助于将模块与微型计算机连接和连接。VME 具有 16、24 和 32 位地址选项，并支持 8、16 或 32 位数据总线选项。它具有多个主站，并具有高速数据传输速率。IC697BEM764模块带有插槽和机架，可以使用PLC程序轻松控制DC300驱动器、AC2000驱动器和其他驱动器。在安装过程中，请务必遵守所有环境法规。工作温度应在 0 至 60 摄氏度之间，储存温度应在 -40 至 85 摄氏度之间。湿度应在 5% 到 95% 之间，无冷凝。它可以轻松承受 1 G 的振动和 40 至 150 赫兹频率的振动，以及 15 G 的冲击 11 毫秒。

GE Fanuc IC697BEM764 PLC 通信模块以 5 伏和 12 伏的总线电压运行。模块的电源经过 1 个周期损耗，没有任何中断。如果发生中断，模块中的 ACFAIL 信号会亮起并启动关闭程序。该模块配有 2 个背板跳线，标记为 J1 和 J2。IC697BEM764通信模块安装有 80C186 微处理器，用于处理逻辑操作。此外，该模块的前面板有一个 LED 状态指示灯，可显示操作状态、数据传输状态以及其他功能和应用数据。模块中还存在一个重启按钮，用于重置设备操作。

IC697BEM764 通信模块 具有多个主站具有高速数据传输速率

【英文介绍】

The IC697BEM764 module is a communication module manufactured by GE Fanuc. It is GE series 90-70 PLC communication module. This communication interface module uses the VME or VERSA module Eurocard bus, which helps to connect and connect the module to the microcomputer. VME has 16, 24, and 32-bit address options, and supports 8, 16, or 32-bit data bus options. It has multiple master stations and a high data transfer rate. The IC697BEM764 module comes with slots and racks to easily control DC300 drives, AC2000 drives, and other drives using PLC programs. Be sure to comply with all environmental regulations during installation. The operating temperature should be between 0 and 60 degrees Celsius, and the storage temperature should be between -40 and 85 degrees Celsius. Humidity should be between 5% and 95%, without condensation. It can easily withstand 1 G of vibration and vibration at 40 to 150 Hz frequencies, as well as 15 G of shock for 11 milliseconds.

The GE Fanuc IC697BEM764 PLC communication module operates at 5 and 12 volt bus voltages. The power supply of the module is lost after 1 cycle without any interruption. If an interruption occurs, the ACFAIL signal in the module lights up and initiates the shutdown procedure. The module is equipped with 2 backplane jumpers, labeled J1 and J2. The IC697BEM764 communication module is equipped with an 80C186 microprocessor for handling logic operations. In addition, the front panel of the module has an LED status indicator that shows the operating status, data transmission status, and other functional and application data. There is also a restart button in the module for resetting device operations.

IC697BEM764 通信模块 具有多个主站具有高速数据传输速率
