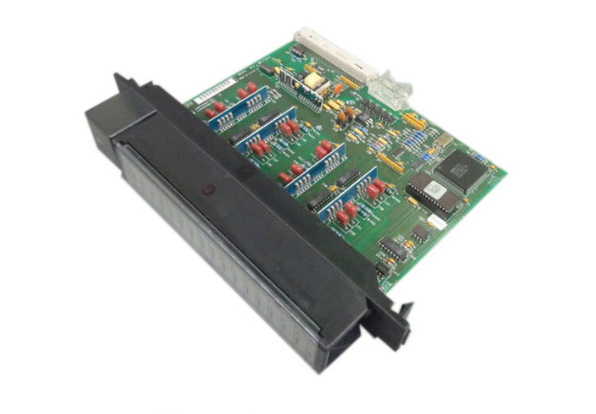

GE  IC697BEM713 总线发送器模块 具有两个连接器

【产品详情】

产品描述

IC697BEM713是GE Fanuc制造的90-70系列总线发送器模块（BTM）。 当系统需要额外的模块（最多七个添加的IC697 PLC机架）时，IC713BEM697模块允许从主CPU机架进行扩展。高性能并行编程功能是一个重要功能。此外，此 BTM 易于配置，不需要使用 DIP 开关。

IC697BEM713模块位于单个插槽中，并具有两个连接器，一个用于连接到编程设备的顶部连接器和一个底部连接器，用于通过 BRM 将菊花链排列到扩展机架。总线发送器模块应使用 MS-DOS 或 Windows 编程软件配置功能进行配置。

状态 LED （3） 提醒用户端口和/或模块存在问题。当 CPU 软件完成 BTM 配置并轮询每个系统扩展机架时，顶部的模块 OK LED 将显示亮起。当不满足这些条件时，它将发出 OFF。中间的编程器端口启用指示灯可能闪烁或显示为ON，以指示编程器和PLC正在通信。当他们不通信时，它会发出 OFF。底部启用扩展端口 LED 指示扩展总线的状态。当 BTM 与总线接收器模块通信时，此 LED 可能会闪烁亮起，如果不是，则闪烁 OFF。

安装IC697BEM713时，用户应有相应的编程器控制器手册以供参考。在开始之前，电源必须关闭。一旦模块安装在主CPU机架中，就可以断电了。但是，请务必注意，模块不能安装在插槽 1 中。它必须安装在任何IC697中断源模块的右侧。

技术规格

模块类型： 总线变送器

有效数据速率： 500 KB/秒

电缆允许距离： 50英尺

可用的离散点： 不适用

串口： 2

当前需要： 1.4 安培

GE  IC697BEM713 总线发送器模块 具有两个连接器

【英文介绍】

Product description

The IC697BEM713 is a 90-70 series bus transmitter module (BTM) manufactured by GE Fanuc. When the system requires additional modules (up to seven added IC697 PLC racks), the IC713BEM697 module allows scaling from the main CPU rack. High performance parallel programming is an important function. In addition, this BTM is easy to configure and does not require the use of DIP switches.

The IC697BEM713 module is located in a single slot and has two connectors, a top connector for connection to the programming device and a bottom connector for daisy-chain arrangement to the expansion rack via BRM. The bus sender module should be configured using the MS-DOS or Windows programming software configuration feature.

Status LED (3) alerts the user that there is a problem with the port and/or module. When the CPU software completes the BTM configuration and polls each system extension rack, the module OK LED at the top will light up. When these conditions are not met, it will issue an OFF. The programmer port enable indicator in the middle may flash or appear ON to indicate that the programmer and PLC are communicating. When they don't communicate, it sends OFF. The enabled Expansion port LED at the bottom indicates the status of the expansion bus. This LED may blink on when the BTM is communicating with the bus receiver module, or blink OFF if it is not.

When installing the IC697BEM713, the user should have the corresponding programmer controller manual for reference. Before starting, the power must be turned off. Once the module is installed in the main CPU rack, it can be powered off. However, it is important to note that modules cannot be installed in slot 1. It must be installed to the right of any IC697 interrupt source module.

Technical specification

Module type: Bus transmitter

Effective data rate: 500 KB/ s

Cable allowable distance: 50 feet

Available discrete points: Not applicable

Serial port: 2

Current requirement: 1.4 amps
