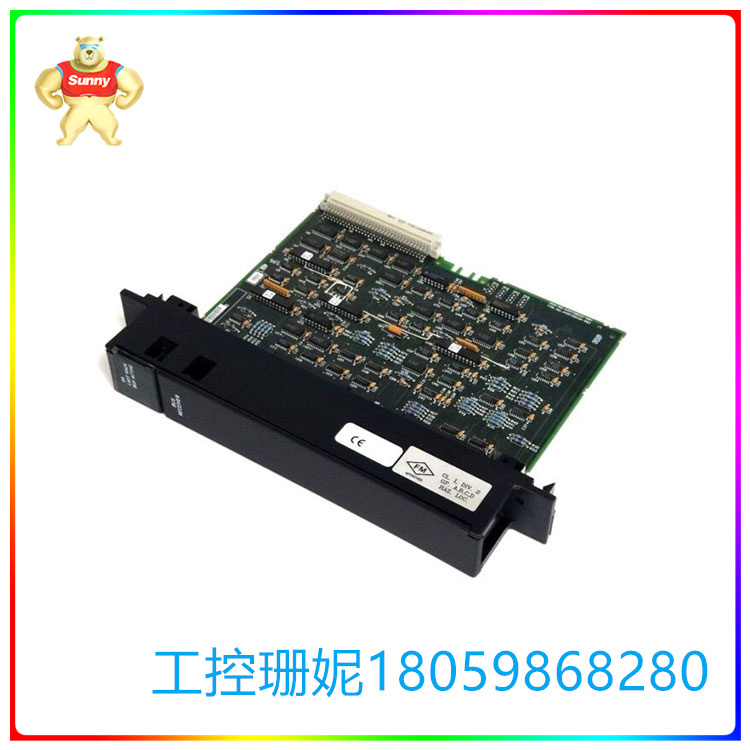

GE   IC697BEM711 总线接口模块 七个扩展机架

【产品详情】

IC697BEM711是用于实现机架扩展的总线接口模块 （BEM）。具体来说，此模块是总线接收器模块。使用此模块允许安装额外的 I/O 和专用模块，并允许安装多达七 （7） 个扩展机架。该模块具有两 （2） 个通信接口，端口 1 用作扩展端口，用于建立与 CPU 或其他 BEM 711 和 BEM 713 的连接。另一个通信接口用作扩展端口输出，用于连接到扩展机架或其他 BEM 711 模块。每个 BEM 711 或 BEM 713 之间的允许距离为 50 英尺或 15 米。IC697BEM711不仅限于机架扩展。由于与通信电缆之间传输的数据是代表扩展机架可用数据的低电平信号，因此也可以实现系统故障隔离。故障排除和维护也得到了简化，因为可以隔离扩展机架以进行故障排除。此外，还可以实现输出保持，使故障或机架维护中的输出模块能够保留单个最后状态。该模块还提供三 （3） 个统计 LED 指示灯，用于指示机架正常、最后一个机架和总线活动。该模块完全使用 MS-DOS 或 Windows 编程软件包进行配置。最后一个扩展机架必须安装目录号为 IC697ACC702 的终端电阻器。此组件对于发出网络结束信号并识别扩展配置的最后一个节点是必需的。该模块支持 500 KB/秒的传输速率和 800 mA 的背板电流消耗。

IC697BEM711模块是总线接收器模块。IC697BEM711模块的特点包括高速并行总线扩展接口、支持 7 个扩展机架、系统故障隔离、简单的软件配置以及支持保持机器的最后状态。模块上的三个 LED 指示灯提供模块的状态以及总线扩展端口状态和扩展状态。通过使用IC697BEM711模块，通过使用总共7米的电缆，可以实现最多697个附加IC15 PLC机架的扩展。IC697BEM711模块占用 PLC 机箱中的一个插槽。模块前面板上提供了两个连接器：一个连接器用于连接上游或 CPU 机架，另一个连接器用于通过菊花链布置连接到其他扩展机架。

IC697BEM711总线接收器模块需要使用Windows或MS-DOS编程软件功能进行配置。模块的电流要求为 0.8 安培，模块还需要 5 伏直流输入电压。扩展接口可以以高达每秒 500 KB 的速度传输数据。可扩展接口可使用长达 15 米的电缆。该模块旨在支持 VME 标准 C.1。订购模块时，也可以订购目录号为 IC697ACC702 的终结器插头。此外，还可以订购以下 I/O 电缆：目录号 IC5WD600A 的 005 英尺电缆、目录号 IC10WD600A 的 010 英尺电缆、目录号 IC25WD600A 的 025 英尺电缆和目录号 IC50WD600A 的 050 英尺电缆。在将IC697BEM711模块插入为其指定的插槽之前，必须关闭系统电源。

GE   IC697BEM711 总线接口模块 七个扩展机架

【英文介绍】

The IC697BEM711 is a Bus interface module (BEM) for rack extension. Specifically, this module is the bus receiver module. The use of this module allows the installation of additional I/O and dedicated modules and allows the installation of up to seven (7) extension racks. The module has two (2) communication interfaces, with port 1 used as an expansion port for establishing connections to the CPU or other BEM 711 and BEM 713. The other communication interface is used as an expansion port output for connecting to the expansion rack or other BEM 711 modules. The permissible distance between each BEM 711 or BEM 713 is 50 feet or 15 meters. The IC697BEM711 is not limited to rack expansion. Since the data transmitted to and from the communication cable is a low-level signal representing the data available to the extension rack, system fault isolation can also be achieved. Troubleshooting and maintenance is also simplified because extension racks can be isolated for troubleshooting. In addition, output hold can be implemented so that the output module in failure or rack maintenance can retain a single final state. The module also provides three (3) statistical LED indicators to indicate rack normal, last rack, and bus activity. The module is configured entirely using MS-DOS or Windows programming packages. The last extension rack must be equipped with a terminal resistor with directory number IC697ACC702. This component is necessary to signal the end of the network and identify the last node of the extended configuration. The module supports a transfer rate of 500 KB/ s and a backplane current consumption of 800 mA.

The IC697BEM711 module is a bus receiver module. The IC697BEM711 module features a high-speed parallel bus expansion interface, support for seven expansion racks, system fault isolation, simple software configuration, and support for maintaining the last state of the machine. Three LED indicators on the module provide the status of the module as well as the status of the bus expansion port and expansion status. With the IC697BEM711 module, up to 697 additional IC15 PLC racks can be extended by using a total of 7 meters of cable. The IC697BEM711 module occupies a slot in the PLC chassis. Two connectors are provided on the front panel of the module: one connector for connecting upstream or CPU racks, and the other connector for connecting to other expansion racks via a Daisy chain arrangement.

The IC697BEM711 bus receiver module needs to be configured using Windows or MS-DOS programming software features. The current requirement for the module is 0.8 amps, and the module also requires 5 volts DC input voltage. The expansion interface can transfer data at speeds of up to 500 kilobits per second. The expandable interface can use up to 15 meters of cable. This module is designed to support the VME standard C.1. Finalizer plugs with catalog number IC697ACC702 can also be ordered when ordering modules. In addition, the following I/O cables can be ordered: 005 ft cable of catalog number IC5WD600A, 010 ft cable of catalog number IC10WD600A, 025 ft cable of catalog number IC25WD600A, and 050 ft cable of catalog number IC50WD600A. Before inserting the IC697BEM711 module into its designated slot, the system power must be turned off.
