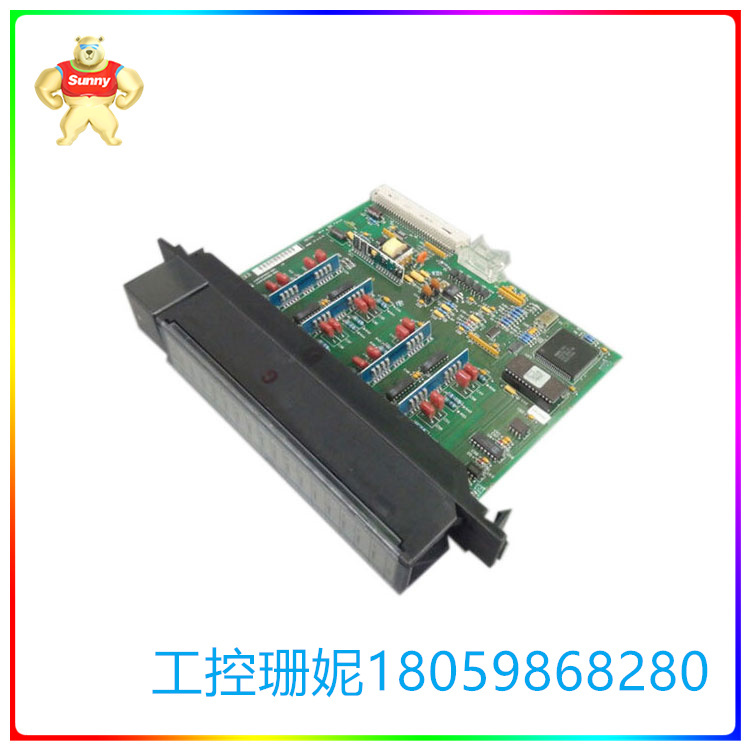

IC697ALG440 电流扩展器模块 输入转换为数字形式

【产品详情】

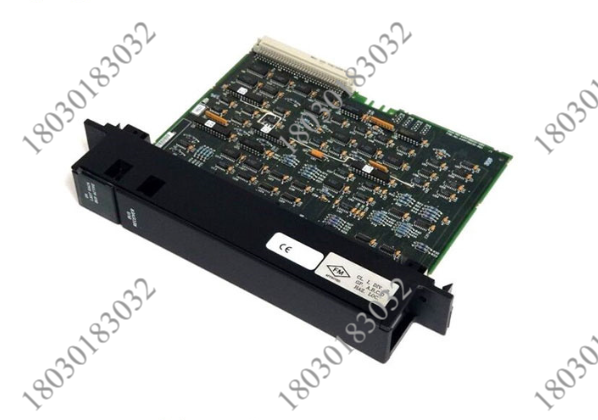

产品描述

IC697ALG440是电流扩展器模块，可与GE系列90-30基转换器模块配对。 完整的模拟子系统包括基本转换器和扩展器模块。IC697ALG440具有 16 个可单独配置的电流或电压差分输入。基极转换器接受满量程上高达 10 V 的双极性或单极性模拟输入。此外，基极转换器将接受 4 至 20 毫安电流环路信号。IC697ALG440为模块的每个输入通道提供单独的用户缩放。整个子系统最多接受 120 个输入。不需要跳线和DIP开关，对于基本转换器来说，快速更新速率是正常的。配置与Windows或MS-DOS软件功能兼容。

输入转换为数字形式，供CPU使用或通过VME背板访问模拟输入的控制器使用。输入具有瞬态和稳态过压保护。通过模拟输入的AI百分比参考用于可编程控制器;但是，目前最多有 8k 字的内存可用。每个输入通道设置为在 16 位时使用 %AI 内存的一个字。通过使用MS-DOS或Windows软件执行配置。现场接线可用于使用可拆卸端子板，并且模块采用机械键控以正确更换。I/O基准由用户配置，如前所述，无需跳线和/或DIP开关。

技术规格

电压输入范围： -10 至 +10 伏

电流输入范围： 4 至 20 mA

校准： 出厂设置为 10 伏 +/- 2mV

输入数量： 16 个电流输入

模块类型： 模拟量输入扩展器模块

权力： + 5 伏

IC697ALG440电流输入扩展器模块属于GE Fanuc生产的90-70系列可编程逻辑控制器产品线。它具有 16 个电流输入，输入电流范围为 4 至 20 毫安。IC697ALG440电流输入扩展器模块必须与基极转换器模块和电压扩展器模块一起使用，以便为可编程逻辑控制器创建模拟输入子系统。用户可以将这些扩展器模块与基本转换器任意组合使用，以获得最多具有 120 个输入通道的系统。它将信号的数字形式转换为模拟形式，并以2的补码格式表示转换后的数据。扩展器模块的一些功能包括状态指示灯 LED、错误检测工具、扩展器通道响应检测和模块运行状况诊断功能。

IC697ALG440电流输入扩展器模块具有模拟多路复用器，用于将输入连接到模数转换器。整个连接过程是一个开关电路，它一次连接一个输入。基座转换器模块的端子36和38可用于连接模拟扩展信号。对于差分数据总线，用户可以选择充当串行通信端口的终端37和39。确保在连接电缆之前考虑极性。如果屏蔽，则必须将屏蔽接地连接到端子 35。但是，屏蔽不是强制性的，它是可选的。IC697ALG440电流输入扩展器模块必须与与其连接的扩展器模块位于同一机架中，以便模块彼此相邻。

IC697ALG440 电流扩展器模块 输入转换为数字形式

【英文介绍】

Product description

The IC697ALG440 is a current extender module that can be paired with GE series 90-30 base converter modules. The complete analog subsystem includes basic converter and extender modules. The IC697ALG440 has 16 individually configurable current or voltage differential inputs. The base converter accepts bipolar or unipolar analog inputs up to 10 V at full scale. In addition, the base converter will accept 4 to 20 mA current loop signals. The IC697ALG440 provides individual user scaling for each input channel of the module. The entire subsystem accepts up to 120 inputs. Jumpers and DIP switches are not required, and fast update rates are normal for basic converters. The configuration is compatible with Windows or MS-DOS software features.

The input is converted to digital form for use by the CPU or a controller that accesses the analog input through the VME backplane. The input has transient and steady-state overvoltage protection. The percentage of AI referenced by the analog input is used for programmable controllers; However, up to 8k words of memory are currently available. Each input channel is set to use one word of %AI memory at 16 bits. Configuration is performed using MS-DOS or Windows software. Field wiring can be used with detachable terminal boards, and modules are mechanically keyed for proper replacement. The I/O baseline is configured by the user, as mentioned earlier, without the need for jumpers and/or DIP switches.

Technical specification

Voltage input range: -10 to +10 volts

Current input range: 4 to 20 mA

Calibration: Factory setting is 10 volts +/ -2mV

Number of inputs: 16 current inputs

Module type: Analog input expander module

Power: + 5 volts

The IC697ALG440 current input expander module belongs to the 90-70 series of programmable logic controllers produced by GE Fanuc. It has 16 current inputs with input currents ranging from 4 to 20 mA. The IC697ALG440 current input expander module must be used in conjunction with the base converter module and the voltage expander module to create an analog input subsystem for the programmable logic controller. Users can use these extender modules in any combination with basic converters to obtain a system with up to 120 input channels. It converts the digital form of the signal to the analog form and represents the converted data in the complement format of 2. Some of the extender module's features include status indicator leds, error detection tools, extender channel response detection, and module health diagnostics.

The IC697ALG440 current input expander module has an analog multiplexer for connecting the input to the analog-to-digital converter. The entire connection process is a switching circuit that connects one input at a time. Terminals 36 and 38 of the base converter module can be used to connect analog expansion signals. For the differential data bus, the user can select terminals 37 and 39 that act as serial communication ports. Be sure to consider polarity before connecting cables. If shielded, the shielding ground must be connected to terminal 35. However, masking is not mandatory, it is optional. The IC697ALG440 current input expander module must be located in the same rack as the expander module to which it is connected so that the modules are adjacent to each other.
