IC697ACC724 机架风扇组件 配有滚珠轴承

【产品详情】

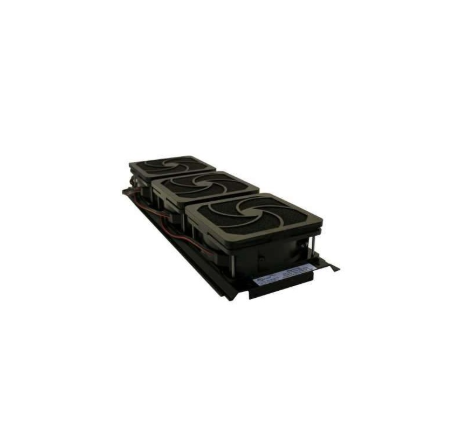

IC697ACC724是为 GE 90-30 系列模块制造的机架风扇组件。此特定组件的安装是可选的，以便在底部机架中进行额外的冷却。当/如果由于过热而需要强制风冷时，它会很有帮助。IC697ACC724可选风扇组件由三个配有滚珠轴承的并联有线风扇组成，噪音更小。这也延长了风扇的使用寿命。位于组件正面的是一根三英尺长的电缆，可以连接到交流电源。然后，其余风扇通过电缆或连接器组件连接到第一个风扇。制造商建议将风扇连接到与 PLC （IC697） 相同的电源，以确保电源，无论 PLC 是否通电和/或使用中。

风扇组件位于已安装机架的底部，气流从底部向上移动到机架本身。IC697ACC724设置为 240 VAC。虽然此组件是可选的，但可能经历高热量输出的单元将受益。可以订购用于高振动环境的机架，并配备重型侧安装板。

GE IC697ACC724机架风扇组件属于GE Fanuc系列90-70产品线。该机架风扇组件是解决工业机器系统中常见的散热问题的最佳选择。该风扇组件的工作温度范围为 -28 至 70 摄氏度，标称气流为 71 CFM。在 AC 机架风扇组件中，最左侧的风扇上有一个 3 英尺长的引线，其末端剥落，用于电源连接，与 240 伏交流电源兼容。该风扇组件的一些功能包括 3 个独立风扇、使用滚珠轴承和额外的机架冷却。IC697ACC724机架风扇组件设计有重型侧安装板，因此适合在重型环境中使用。

IC697ACC724机架风扇组件设计为易于组装。建议对PLC和风扇使用相同的电源，以便在PLC处于活动状态时运行它。该冷却风扇组件作为套件提供，其中包含所有必需的螺钉和安装支架。它通过使用高效的过滤设备来降低外壳内部温度。它还有助于提高和优化其他电气设备的性能，同时减少停机时间所涉及的维护和成本。IC697ACC724机架冷却风扇可与 IC697 机架（如 IC697CHS783A 和 IC697CHS790D 或更高版本的机架版本）一起使用。它有一个易于拆卸的过滤器，可以通过卸下塑料固定器来更换。该滤波器的额定值为 30 PPI，可满足用户应用所需的过滤性能水平。

IC697ACC724 机架风扇组件 配有滚珠轴承

【英文介绍】

The IC697ACC724 is a rack fan assembly manufactured for GE 90-30 series modules. The installation of this particular component is optional for additional cooling in the bottom rack. It can be helpful when/if forced air cooling is required due to overheating. The IC697ACC724 optional fan assembly consists of three parallel wired fans with ball bearings for less noise. This also extends the service life of the fan. Located on the front of the assembly is a three-foot-long cable that connects to the AC power supply. The remaining fans are then connected to the first fan via a cable or connector assembly. The manufacturer recommends connecting the fan to the same power supply as the PLC (IC697) to ensure power, whether the PLC is powered on and/or in use.

The fan assembly is located at the bottom of the mounted rack, and the air flow moves from the bottom up to the rack itself. The IC697ACC724 is set to 240 VAC. While this component is optional, units that may experience high heat output will benefit. Racks for high vibration environments can be ordered with heavy side mounting panels.

The GE IC697ACC724 rack fan assembly belongs to the GE Fanuc Series 90-70 product line. This rack fan assembly is the best choice for solving heat dissipation problems common in industrial machine systems. The fan assembly operates in a temperature range of -28 to 70 degrees Celsius with a nominal airflow of 71 CFM. In the AC rack fan assembly, the leftmost fan has a 3-foot-long lead with its end peeled off for power connections that are compatible with 240-volt AC power supplies. Some of the features of this fan assembly include 3 separate fans, the use of ball bearings and additional rack cooling. The IC697ACC724 rack fan assembly is designed with heavy side mounting panels, making it suitable for use in heavy duty environments.

The IC697ACC724 rack fan assembly is designed for easy assembly. It is recommended to use the same power supply for the PLC and the fan in order to run the PLC when it is active. The cooling fan assembly is supplied as a kit that includes all necessary screws and mounting brackets. It reduces the internal temperature of the housing by using efficient filtration equipment. It also helps to improve and optimize the performance of other electrical equipment while reducing the maintenance and costs involved in downtime. The IC697ACC724 rack cooling fan can be used with the IC697 rack, such as the IC697CHS783A and IC697CHS790D or later rack versions. It has an easy-to-remove filter that can be replaced by removing the plastic retainer. With a rating of 30 PPI, the filter meets the filtering performance level required by the user's application.

IC697ACC724 机架风扇组件 配有滚珠轴承
