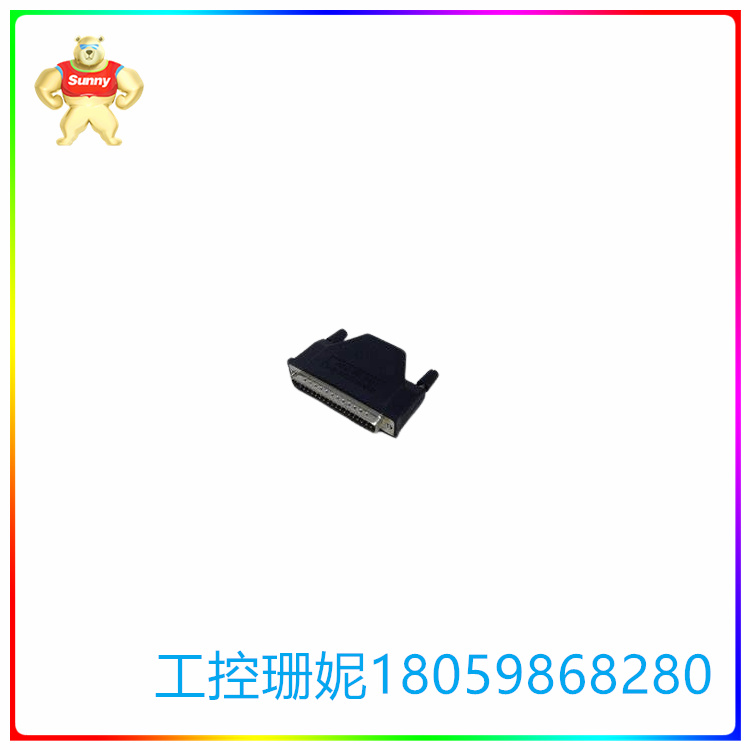

GE  IC697ACC702 I/O总线终结器插头

【产品详情】

IC697ACC702是GE Fanuc 90-70系列专用的GE I/O总线终结器插头。该总线终结器插头通常随每个总线接收器模块一起提供，并且仅在链中的最后一个总线接收器模块中需要。如果总线扩展模块不在链的末端，则终结器插头可能会保存为额外插头或丢弃，具体取决于用户偏好。如果总线接收器模块位于链的末端，则设备需要终结器插头。

终结器插头应安装在标记为“扩展端口输出”的下部扩展端口中。然后可以使用随附的螺钉连接插头。在标准PLC系统中，这是通过安装位于终结器插头内部的电阻器组来实现的。在热备用 CPU 冗余系统中，需要特殊的 I/O 电缆。这有一个内置的终端系统。制造商建议使用带有端接电缆的电阻插头。

GE Fanuc IC697ACC702 I/O 总线终结器插头随附总线接收器模块，该模块是 GE 90-70 系列 PLC 产品线的一部分。它由一个 25 针连接器组成。该端子插头对于在菊花链配置中位于链末端的总线接收器模块上至关重要。它有一个内置的终端系统。此 90-70 系列 GE 总线终结器插头也与 GE 90-30 系列模块兼容。它仅重0.04公斤。该插头和模块有助于将I/O模块功能和终结器模块功能轻松组合到单个集成系统中。IC697ACC702 I/O 总线终结器插头可确保用户网络应用增强连接性、灵活性并降低成本。

IC697ACC702 I/O 总线终结器插头可以安装在“扩展端口输出”端口，这是接收器模块的下部扩展端口。购买模块时，安装所需的螺钉包含在套件中。该终结器插头可帮助用户轻松成功地完成 I/O 扩展总线端接。为了确保终结器插头的存在和连接，用户可以在其兼容模块中使用处理器的中间 LED。IC697ACC702 I/O 总线终结器插头可用于标准 PLC 系统和备用冗余系统。此 25 针连接器可以连接到位于 CPU 底板上的母连接器。它可以连接到 I/O 总线扩展链，如果它是该扩展链的最后一根电缆。制造商建议将电阻插头与终端电缆一起使用。连接器内部安装有一个电阻器组。

GE  IC697ACC702 I/O总线终结器插头

【英文介绍】

The IC697ACC702 is a dedicated GE I/O bus terminator plug for the GE Fanuc 90-70 series. This bus terminator plug is typically supplied with each bus receiver module and is only required in the last bus receiver module in the chain. If the bus expansion module is not at the end of the chain, the terminator plug may be saved as an additional plug or discarded, depending on user preference. If the bus receiver module is at the end of the chain, the device requires a terminator plug.

The terminator plug should be installed in the lower expansion port labeled "Expansion Port Output". The plug can then be attached using the included screws. In a standard PLC system, this is achieved by installing a resistor bank located inside the terminator plug. In redundant systems with hot standby cpus, special I/O cables are required. There's a built-in terminal system. Manufacturers recommend using resistive plugs with termination cables.

The GE Fanuc IC697ACC702 I/O bus terminator plug comes with the bus receiver module, which is part of the GE 90-70 series PLC product line. It consists of a 25-pin connector. This terminal plug is essential on the bus receiver module located at the end of the chain in a Daisy chain configuration. It has a built-in terminal system. This 90-70 series GE bus terminator plug is also compatible with GE 90-30 series modules. It weighs only 0.04 kg. The plug and module facilitate the easy combination of I/O module functions and terminator module functions into a single integrated system. The IC697ACC702 I/O Bus terminator plug ensures increased connectivity, flexibility and reduced costs for user network applications.

The IC697ACC702 I/O bus terminator plug can be installed in the "Expansion Port Output" port, which is the lower expansion port of the receiver module. When the module is purchased, the screws required for installation are included in the kit. The terminator plug helps users successfully and easily complete the I/O expansion bus terminations. To ensure the presence and connection of the terminator plug, the user can use the intermediate LED of the processor in its compatible module. The IC697ACC702 I/O bus terminator plug can be used in standard PLC systems and backup redundant systems. This 25-pin connector can be connected to a female connector located on the CPU baseboard. It can be connected to an I/O bus extension chain if it is the last cable in that extension chain. The manufacturer recommends that the resistance plug be used with the terminal cable. A resistor group is installed inside the connector.
