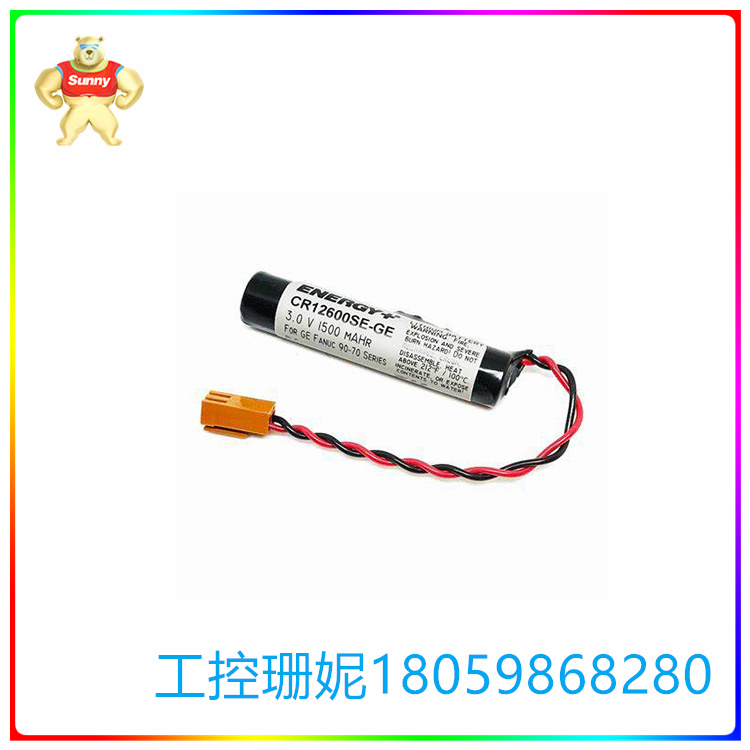

GE IC697ACC701 3V锂电池 单节电池

【产品详情】

IC697ACC701是3V锂电池，通常两个封装。作为GE Fanuc系列90-70的一部分，这种锂电池易于安装。这是一种单节电池，设计有用于工业计算机的可编程逻辑控制。低自放电率使电池具有 10 年的保质期，可长期储存和使用。1400 mAh 的容量提供高可靠性和高能量。触点包括具有稳定电压宽温度范围（-40 摄氏度至 +80 摄氏度）的引线连接器。安装简单明了，除非需要进入电池区域，否则无需工具。

该IC697ACC701的直径为 0.48 英寸，高 2.38 英寸，有多种来源的黑色热收缩或灰白色收缩包装可供选择。这既兼容 CPU 和 PCM。电池在使用期间提供 250 mA 脉冲电流和 15 mA 连续电流。该IC697ACC701与GE Fanuc 90-70系列，GE Fanuc CPU 771和GE Fanuc 772兼容。该锂电池还取代了IC697-ACC-701和CR12600SE-GE电池，用于可编程逻辑控制工业计算机。电池的运输可能需要额外费用，因为它们被邮局和许多运输机构视为危险材料。订购时，请选择经过验证的电池来源和授权零售商，以获得最佳质量，并实际更换适合您设备的电池。

GE 系列 90-70 IC697ACC701电池是一种锂电池，作为附件提供，可与 GE IC697CPU731 CPU 一起使用。电池和CPU均由GE Fanuc Automation制造和设计。该电池的主要目的是维护CPU的时钟和日历。如果 CPU 中没有此电池，由于缺乏最新且准确的日历和实时时钟，某些编程和某些活动可能无法使用，尤其是在此 CPU 执行到不同设备的数据传输时。GE Fanuc Automation IC697ACC701锂电池还用于向CPU主板的小电子部件以及CPU的主板或BIOS发送能量。如果在上电诊断期间检测到电池电量不足，则位于CPU顶部的“模块正常”LED将熄灭。

90-70系列GE Fanuc自动化IC697ACC701锂电池的另一个重要用途是在断电时维护用户内存。在更换旧电池之前需要安装此新电池，以避免数据丢失。锂电池封装包括 2 个单元，均用于一个 CPU。电池的保质期为10年，温度约为20摄氏度。它的内存保留时间为标称6个月，不使用任何电源。GE Fanuc Automation IC697ACC701锂电池旨在支持VME标准C1。该电池仅在CPU无电时工作，这就是为什么它可以持续长达10年的原因。

GE IC697ACC701 3V锂电池 单节电池

【英文介绍】

The IC697ACC701 is a 3V lithium battery, usually in two packages. As part of the GE Fanuc Series 90-70, this lithium battery is easy to install. It is a single battery designed with programmable logic control for industrial computers. The low self-discharge rate gives the battery a 10-year shelf life and can be stored and used for a long time. The capacity of 1400 mAh provides high reliability and high energy. The contacts include lead connectors with a stable voltage over a wide temperature range (-40 ° C to +80 ° C). Installation is straightforward and no tools are required unless access to the battery area is required.

The IC697ACC701 is 0.48 inches in diameter and 2.38 inches in height and is available in a variety of sources in black heat shrink or off-white shrink packaging. This is compatible with both CPU and PCM. The battery provides 250 mA pulse current and 15 mA continuous current during use. The IC697ACC701 is compatible with the GE Fanuc 90-70 series, GE Fanuc CPU 771 and GE Fanuc 772. The lithium battery also replaces the IC697-ACC-701 and CR12600SE-GE batteries for programmable logic control of industrial computers. Shipping batteries can cost extra because they are considered hazardous materials by post offices and many transportation agencies. When ordering, select a verified battery source and authorized retailer for the best quality and to actually replace the battery that is right for your device.

The GE Series 90-70 IC697ACC701 battery is a lithium battery that is supplied as an accessory and can be used with the GE IC697CPU731 CPU. Both the battery and CPU are manufactured and designed by GE Fanuc Automation. The main purpose of the battery is to maintain the CPU's clock and calendar. Without this battery in the CPU, some programming and some activities may not be available due to the lack of an up-to-date and accurate calendar and real-time clock, especially when this CPU performs data transfers to different devices. The GE Fanuc Automation IC697ACC701 lithium battery is also used to send power to the small electronics of the CPU motherboard and to the CPU's motherboard or BIOS. If low battery power is detected during power-on diagnosis, the "Module Normal" LED located at the top of the CPU will go off.

Another important use of the 90-70 series GE Fanuc Automation IC697ACC701 lithium battery is to maintain user memory in case of power failure. This new battery needs to be installed before replacing the old battery to avoid data loss. The lithium battery package consists of two units, each for a CPU. The battery has a shelf life of 10 years and a temperature of about 20 degrees Celsius. It has a nominal memory retention time of 6 months and does not use any power supply. GE Fanuc Automation IC697ACC701 Lithium battery is designed to support VME standard C1. The battery only works when the CPU is out of power, which is why it can last up to 10 years.
