GE IC697ACC644  机架风扇组件 直流电压运行

【产品详情】

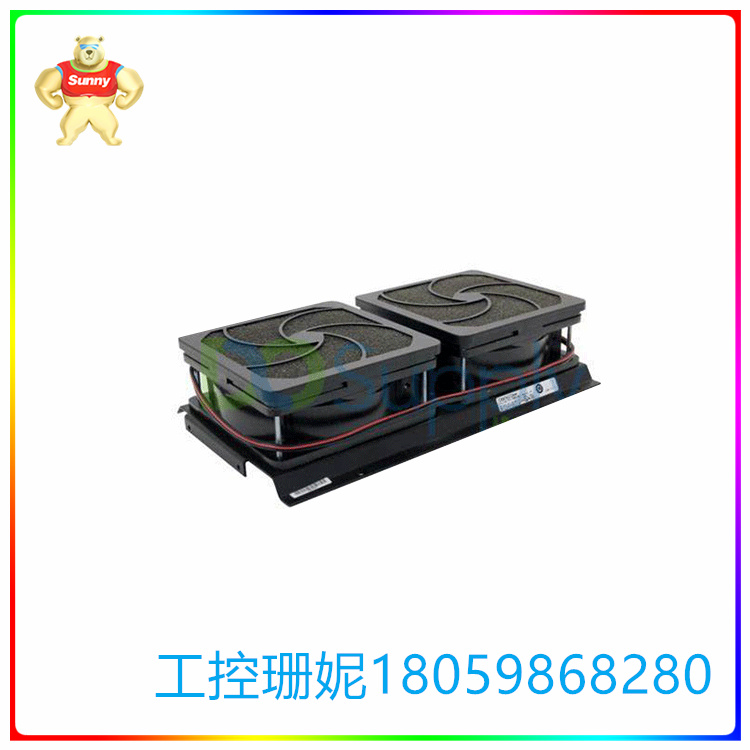

GE IC697ACC644组件是一种机架风扇组件，可与 5-90 系列 PLC 系统的 70 插槽机架和 RX9i 系统的 7 插槽机架一起使用。该组件由GE Fanuc Automation制造。此特定型号配有 2 个风扇，并以 24 伏直流电压运行。这些风扇中的每一个都需要 6.7 瓦的输入功率（24 伏直流电）和相同电压下 0.28 安培的线路电流。GE Fanuc自动化IC697ACC644机架风扇组件能够在容易积聚热量并导致机器过热的环境中冷却机架。该组件包括滚珠轴承，在运行过程中不会产生噪音。建议在环境空气温度不超过70摄氏度且不低于-28摄氏度的环境中使用此风扇。

GE Fanuc Automation 系列 90-70 IC697ACC644机架风扇组件具有每个风扇 0.7 安培的锁定转子额定电流，它还包括一个塑料固定器和防护装置以及一个额定值为 30 PPI 的过滤器。该过滤器有助于将灰尘挡在风扇区域之外。如果过滤器工作不正常或非常脏，可能会导致风扇组件出现故障。因此，建议定期检查此过滤器，并在必要时更换。过滤器由聚氨酯泡沫制成。GE Fanuc Automation IC697ACC644机架风扇组件重约 4 磅，并且由于它非常轻，因此不会在机架周围产生任何噪音。

90-70系列IC697ACC644设备由GE Fanuc制造，作为90-70系列模块的附件。IC697ACC644设备是一个机架风扇组件，可以安装GE Fanuc系列90-70模块，以便在过热的工业环境中运行期间对其进行冷却。在标准环境中，90-70系列模块通常可以自行调节温度，但IC697ACC644机架风扇组件等附件使这些模块能够安全可靠地用于更广泛的应用。此风扇组件包含 2 个风扇，其输入功率额定值为每个风扇 6.7 瓦，其线路电流额定值为每个风扇 0.28 安培。IC697ACC644机架风扇组件还配有一个由聚氨酯泡沫制成的过滤器，额定值为 30 PPI。

GE Fanuc IC697ACC644机架风扇组件的额定电压为 24 伏直流电。它可以在低至 -28 摄氏度的温度下工作，但为了获得最佳效果，它应该在 0 到 70 摄氏度的环境温度范围内使用。它有一个转子和一个塑料固定器。塑料保持器符合 UL 等级，IC697ACC644机架风扇组件整体通过 CE 和 cULus 标准认证。此机架风扇组件旨在使用螺钉安装，当用于冷却 5-90 系列 PLC 时，它可以安装在 70 插槽机架中，或者当用于冷却 Rx9i 设备时，它可以安装在 7 插槽机架中。IC697ACC644机架风扇组件不防水，不应在室外使用。

GE IC697ACC644  机架风扇组件 直流电压运行

【英文介绍】

The GE IC697ACC644 assembly is a rack fan assembly that can be used with the 70-slot rack of the 5-90 series PLC system and the 7-slot rack of the RX9i system. The component is manufactured by GE Fanuc Automation. This particular model is equipped with 2 fans and operates at 24 volts DC. Each of these fans requires 6.7 watts of input power (24 volts DC) and 0.28 amps of line current at the same voltage. The GE Fanuc Automation IC697ACC644 rack fan assembly is capable of cooling the rack in environments where heat can easily accumulate and cause the machine to overheat. The assembly includes ball bearings, which do not generate noise during operation. It is recommended to use this fan in an environment where the ambient air temperature does not exceed 70 degrees Celsius and does not fall below -28 degrees Celsius.

The GE Fanuc Automation Series 90-70 IC697ACC644 rack fan assembly has a locking rotor current rating of 0.7 amps per fan, it also includes a plastic retainer and guard and a filter rated at 30 PPI. The filter helps keep dust out of the fan area. If the filter is not working properly or is very dirty, it may cause the fan assembly to fail. Therefore, it is recommended to check this filter regularly and replace it if necessary. The filter is made of polyurethane foam. The GE Fanuc Automation IC697ACC644 rack fan assembly weighs about 4 pounds, and because it's so light, it doesn't create any noise around the rack.

The 90-70 Series IC697ACC644 device is manufactured by GE Fanuc as an accessory to the 90-70 series module. The IC697ACC644 device is a rack fan assembly that can be fitted with GE Fanuc Series 90-70 modules to cool them during operation in overheated industrial environments. In standard environments, the 90-70 series modules typically adjust their own temperature, but accessories such as the IC697ACC644 rack fan assembly enable these modules to be used safely and reliably for a wider range of applications. This fan assembly consists of 2 fans with input power ratings of 6.7 watts per fan and line current ratings of 0.28 amps per fan. The IC697ACC644 rack fan assembly also comes with a filter made of polyurethane foam rated at 30 PPI.

GE Fanuc IC697ACC644 Rack fan assemblies are rated at 24 volts DC. It can work at temperatures as low as -28 degrees Celsius, but for best results it should be used in an ambient temperature range of 0 to 70 degrees Celsius. It has a rotor and a plastic retainer. The plastic retainer is UL rated and the IC697ACC644 rack fan assembly as a whole is CE and cULus certified. This rack fan assembly is designed to be mounted using screws, and it can be mounted in a 70-slot rack when used to cool 5-90 series PLCS, or in a 7-slot rack when used to cool Rx9i devices. The IC697ACC644 rack fan assembly is not waterproof and should not be used outdoors.
