GE IC693CPU323 插槽嵌入式CPU底板  I/O 插槽

【产品详情】

产品描述

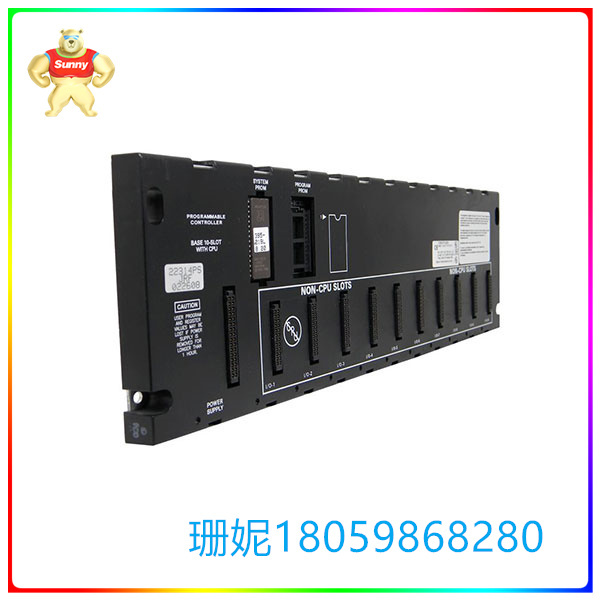

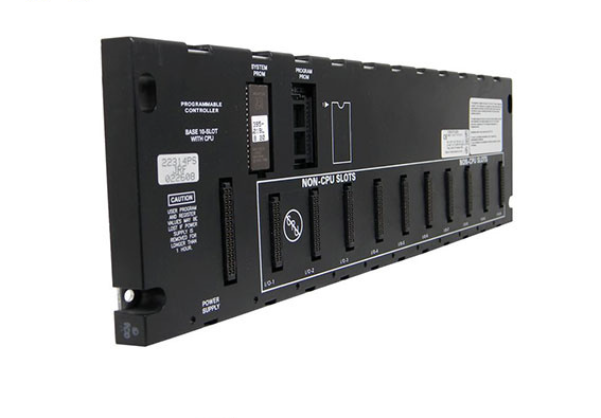

GE Fanuc IC693CPU323是一款10插槽基础Turbo CPU。本机具有 12 Kb 的用户程序内存。90-30 系列 PLC 系列包括控制器和 I/O 系统以及专用模块。这些都是专门设计的，为用户提供一个更通用和更广泛的控制系统，用于他们的工业应用和过程。由于可用的模块种类繁多，因此很容易将自动化流程引入您的业务。该系列包括 14 个强大的 CPU 单元。IC693CPU323是标准 CPU，最适合 I/O 数量较少的入门级应用程序。由于 CPU 嵌入在背板中，因此所有 I/O 插槽都可供使用。运动控制和以太网等高级模块可以与此CPU一起使用。

IC693CPU323支持面板安装，通过底板上提供的安装孔固定。该装置的电流负载为430 mA，采用+5VDC电源供电。

IC693CPU323底板是GE Fanuc系列90-30 Ten插槽嵌入式CPU底板。嵌入式 CPU 具有低成本的优势，但它们缺乏模块化 CPU 的强大功能和多功能性。嵌入式CPU是嵌入式CPU基板的一部分，其中CPU和内存芯片焊接在基板的背板上。嵌入式 CPU 无法更改，它们不支持扩展或远程机架，并且它们没有时间时钟，因为内存备用电池位于电源电源中，拔下电源会导致电池与内存电路断开连接，这会干扰时间时钟的设置。

IC693CPU323底板的功率要求是 5 伏直流电压和 430 毫安电流。IC693CPU323底板与 PCM 和 CCM 器件不兼容。该模块的工作温度范围为 0 至 60 摄氏度。中断、覆盖和电池备份时钟是IC693CPU323底板上没有的功能。支持移位寄存器。可用的一个或多个计时器和计数器为 340。IC693CPU323基板上的单个串行端口仅支持SNP从机和SNP-X从机通信协议。如果需要，可以单独订购Profibus、以太网和GCM协议的可选模块。模拟输入总共分配了 64 个字，模拟输出分配了 32 个字。IC693CPU323底板总共支持 320 个组合的离散输入和输出。

技术规格

处理器速度 ： 10兆赫

I/O 点 ： 320

寄存器存储器 ： 2千字节

浮点数学： 不

16 位系统 是的

处理器： 80188

IC693CPU323底板是GE Fanuc制造的底板，是90-30系列的一部分。它是一个 10 插槽嵌入式 CPU 底板。90-30 系列 PLC 中有几种 CPU 型号，它们在速度、内存容量、I/O 容量和高级功能方面有所不同。两种基本可用的 CPU 类型是模块化和嵌入式 CPU。嵌入式CPU如IC2CPU693底板中的CPU成本低，但它们缺乏模块化CPU的功能和多功能性。嵌入式CPU是嵌入式IC323CPU693 CPU底板的一部分，其中内存芯片和CPU焊接在背板上。嵌入式 CPU 无法更换，它们不支持扩展或远程机架，并且它们没有时间时钟，因为内存备用电池位于电源中，拔下电源可能会断开电池与内存电路的连接。

GE Fanuc 系列 323-90 IC30CPU693嵌入式 CPU 基板的功率要求包括 323 伏直流电压额定值和 5 毫安额定电流。此底板与GE Fanuc CCM和PCM器件不匹配，不建议与这些器件配合使用。它的工作温度范围为 430 至 0 摄氏度。超控功能、中断功能和电池备份时钟是许多 CPU 具有的功能，但IC60CPU693嵌入式 CPU 底板中的 CPU 所不具备的功能。但是，它支持移位寄存器，可用的计时器和计数器数量为 323。GE Fanuc IC340CPU693底板上有一个串行端口，仅支持SNP从机和SNP-X从机通信协议。

GE IC693CPU323 插槽嵌入式CPU底板  I/O 插槽

【英文介绍】

Product description

The GE Fanuc IC693CPU323 is a 10-socket base Turbo CPU. The native has 12 Kb of user program memory. The 90-30 series PLC series includes controllers and I/O systems as well as dedicated modules. These are specifically designed to provide users with a more general and broader control system for their industrial applications and processes. Due to the wide variety of modules available, it is easy to introduce automated processes into your business. The series includes 14 powerful CPU units. The IC693CPU323 is a standard CPU that is best suited for entry-level applications with a low number of I/ OS. Since the CPU is embedded in the backplane, all I/O slots are available. Advanced modules such as motion control and Ethernet can be used with this CPU.

The IC693CPU323 supports panel installation and is secured through the mounting holes provided on the mainboard. The unit has a current load of 430 mA and is powered by a +5VDC supply.

The IC693CPU323 mainboard is a GE Fanuc series 90-30 Ten slot embedded CPU mainboard. Embedded cpus have the advantage of low cost, but they lack the power and versatility of modular cpus. An embedded CPU is a part of an embedded CPU substrate in which the CPU and memory chip are soldered to the backplane of the substrate. Embedded cpus cannot be changed, they do not support expansion or remote racks, and they do not have a time clock because the memory backup battery is located in the power supply, and unplugged the power will cause the battery to disconnect from the memory circuit, which will interfere with the setting of the time clock.

The power requirements of the IC693CPU323 baseplate are 5 volts DC and 430 mA. The IC693CPU323 baseboard is not compatible with PCM and CCM devices. The module operates in a temperature range of 0 to 60 degrees Celsius. Interrupt, overlay, and battery backup clock are features not available on the IC693CPU323 mainboard. Supports shift registers. One or more timers and counters are available for 340. The single serial port on the IC693CPU323 substrate supports only SNP slave and SNP-X slave communication protocols. Optional modules for Profibus, Ethernet and GCM protocols can be ordered separately if required. The analog input was assigned a total of 64 words, and the analog output was assigned 32 words. The IC693CPU323 baseboard supports a total of 320 combined discrete inputs and outputs.

Technical specification

Processor speed: 10 MHZ

I/O point: 320

Register memory: 2 kilobytes

Floating point math: No

16-bit system Yes

Processor: 80188

The IC693CPU323 baseboard is a baseboard manufactured by GE Fanuc as part of the 90-30 series. It is a 10-slot embedded CPU baseboard. There are several CPU models in the 90-30 series PLC, which differ in speed, memory capacity, I/O capacity, and advanced features. The two basic CPU types available are modular and embedded cpus. Embedded cpus like those in the IC2CPU693 backboard are low cost, but they lack the power and versatility of modular cpus. The embedded CPU is part of the mainboard of the embedded IC323CPU693 CPU, where the memory chip and CPU are soldered to the backplane. Embedded cpus cannot be replaced, they do not support expansion or remote racks, and they do not have a time clock because the memory backup battery is located in the power supply, and unplugging the power supply may disconnect the battery from the memory circuit.

The power requirements for GE Fanuc Series 323-90 IC30CPU693 embedded CPU substrates include a 323 V DC voltage rating and a 5 mA current rating. This backboard does not match GE Fanuc CCM and PCM devices and is not recommended for use with these devices. It operates in a temperature range of 430 to 0 degrees Celsius. The override function, interrupt function, and battery backup clock are features that many cpus have, but the cpus in the IC60CPU693 embedded CPU backboard do not have. However, it supports shift registers, and the number of timers and counters available is 323. The GE Fanuc IC340CPU693 has a serial port on the mainboard that supports only SNP slave and SNP-X slave communication protocols.
