GE IC693CPU313 嵌入式CPU 可选模块

【产品详情】

产品描述

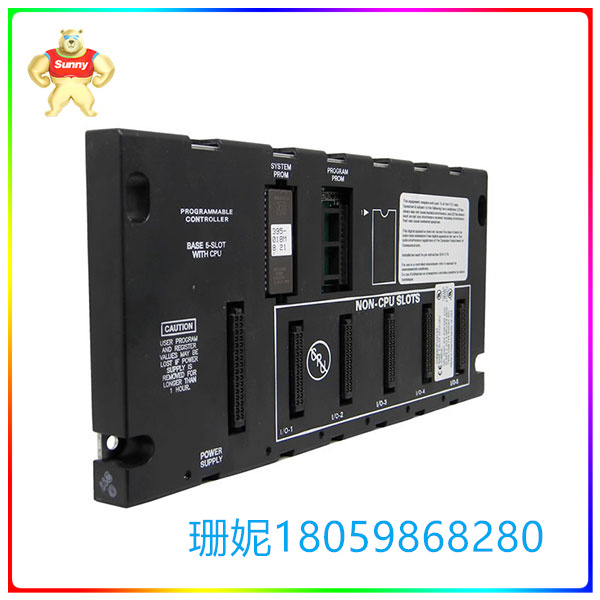

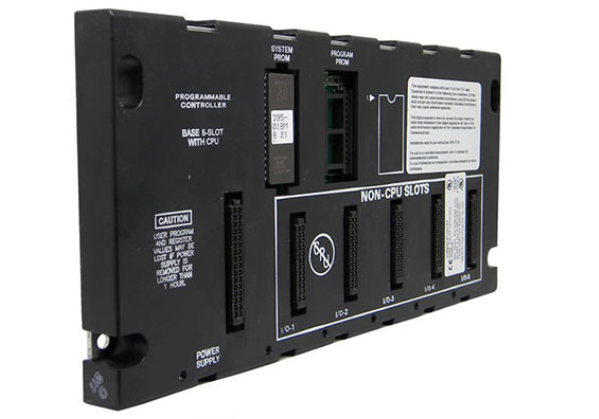

GE Fanuc IC693CPU313是一款嵌入式CPU，带有5槽底板，每个系统包含一个基板。该模块使用处理器 10 达到 80188 MHz 的处理速度。执行其功能所需的功率为 5 VDC，该模块消耗的电流为 430 mA。该模块的此操作在 0°C 至 60 °C 的温度范围内进行。

IC693CPU313提供的最大用户存储器为12 KB用于编程，该存储器以各种存储器类型分配。与模拟输入 （%AI） 和模拟输出 （%AO） 关联的用户存储器分别为 64 个字和 32 个字。该模块需要 128 位内存来参考系统状态，其中每个子内存类型需要 32 位。内存还分配给 16 个字的系统寄存器 （%SR）。寄存器存储器还具有最大空间，可存储多达 1024 字的数据。与内部线圈 （%M） 和临时输出线圈 （%T） 相关的存储器分别为 1024 位和 264 位。IC63CPU313中的主存储器是 1280 位的离散全局存储器 （%G）。

与其他模块的通信是通过支持多点的LAN完成的。该IC693CPU313还支持可选模块，如GCM，GCM+，以太网，Profibus，FIP，GBC等，该模块中使用的内存存储是RAM或EPROM。 该模块可实现0.6毫秒/1K的扫描速率，并配有单个内置端口，支持SNP从机和SNP-X从机等协议。

技术规格

处理器速度 ： 10兆赫

I/O 点 ： 160

寄存器存储器 ： 2千字节

浮点数学： 不

16 位系统 是的

处理器： 80188

GE Fanuc IC693CPU313底板是GE 5-90系列产品线中的30插槽底板，内置CPU。大多数GE系列90-30底板都是为了容纳单独的CPU模块而构建的，但IC693CPU313底板都嵌入了Turbo CPU模块。该底板可用于通过连接到其他GE 90-30系列PLC组件（如选件模块和不同类型的扩展和远程底板）来创建各种90-30系列PLC或可编程逻辑控制器系统。但是，它与 CCM 和 PCM 设备不兼容。嵌入式CPU中的处理器是一个80188处理器，以10兆赫兹的速度运行。对于在版本 6 之前制造的底板，最大用户程序内存容量为 7 KB，对于版本 12 及更高版本中制造的底板，最大用户程序内存容量为 7 KB。

GE Fanuc 系列 90-30 IC693CPU313带有嵌入式 Turbo CPU 的 5 插槽底板，工作温度在 32 到 140 华氏度或 0 到 60 摄氏度之间。它带有 1 个端口，支持 SNP 和 SNP-X 从属协议，并使用 PLC 电源上的连接器。除了承载不同选件模块的 5 个插槽外，IC693CPU313底板的左边缘还有一个额外的插槽，该插槽不像其他插槽那样编号，仅用于电源模块。IC693CPU313底板支持RAM，还可以容纳EPROM和EEPROM用于特定应用。

GE IC693CPU313 嵌入式CPU 可选模块

【英文介绍】

Product description

The GE Fanuc IC693CPU313 is an embedded CPU with a 5-slot backboard, one substrate per system. The module uses processor 10 to achieve a processing speed of 80188 MHz. The power required to perform its functions is 5 VDC and the current consumed by the module is 430 mA. This operation of the module is carried out in the temperature range of 0°C to 60 °C.

The IC693CPU313 provides a maximum user memory of 12 KB for programming, which is allocated in various memory types. The user memory associated with analog input (%AI) and analog output (%AO) is 64 words and 32 words, respectively. The module requires 128 bits of memory to reference the system state, of which 32 bits are required for each submemory type. Memory is also allocated to a 16-word system register (%SR). The register memory also has a maximum space and can store up to 1024 words of data. The memory associated with the internal coil (%M) and the temporary output coil (%T) is 1024 bits and 264 bits, respectively. The main memory in IC63CPU313 is a 1280-bit discrete global memory (%G).

Communication with other modules is done via a LAN that supports multiple points. The IC693CPU313 also supports optional modules such as GCM, GCM+, Ethernet, Profibus, FIP, GBC, etc. The memory storage used in the module is RAM or EPROM. The module can achieve a scan rate of 0.6 ms /1K and has a single built-in port to support protocols such as SNP slave and SNP-X slave.

Technical specification

Processor speed: 10 MHZ

I/O point: 160

Register memory: 2 kilobytes

Floating point math: No

16-bit system Yes

Processor: 80188

The GE Fanuc IC693CPU313 baseboard is a 30-slot baseboard in the GE 5-90 series product line with a built-in CPU. Most GE Series 90-30 baseboards are built to house separate CPU modules, but the IC693CPU313 baseboards all have Turbo CPU modules embedded. The backboard can be used to create a variety of 90-30 series PLC or programmable logic controller systems by connecting to other GE 90-30 series PLC components, such as optional modules and different types of expansion and remote backboards. However, it is not compatible with CCM and PCM devices. The processor in the embedded CPU is an 80188 processor that runs at 10 megahertz. The maximum user program memory capacity is 7 KB for baseboards manufactured before version 6 and 7 KB for baseboards manufactured in version 12 and later.

The GE Fanuc Series 90-30 IC693CPU313 has a 5-slot baseboard with an embedded Turbo CPU and operates at temperatures between 32 and 140 degrees Fahrenheit or 0 and 60 degrees Celsius. It comes with 1 port, supports SNP and SNP-X slave protocols, and uses connectors on the PLC power supply. In addition to the five slots that carry the different option modules, the IC693CPU313 has an additional slot on the left edge of the backplane, which is not numbered like the others and is only used for the power module. The IC693CPU313 backboard supports RAM and can also accommodate EPROMs and EEPROMs for specific applications.
