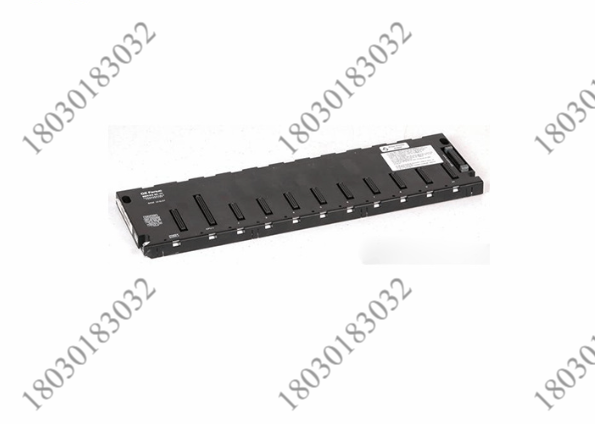

IC693CPU311 带嵌入式 CPU 的底板 入门级应用
【产品详情】
产品描述
IC693CPU311模块是一个5插槽机架,底座上有一个嵌入式CPU,由GE Fanuc制造。它是一个 16 位系统,属于 90-30 系列 PLC,处理器速度为 10 MHz,注册表内存为 1 KB。它带有 160 个输入/输出点,没有浮点数学。 嵌入式 CPU 具有以下属性: CPU 类型无法更改,因为它焊接在底板上的背板上。嵌入式 CPU 没有时间时钟。由于它们缺少像模块化底板那样的扩展连接器,因此它们不支持扩展或远程机架。如果电源断开或电池断开,CPU 具有“超级”电容器,可以存储足够的电荷来维持内存电路一段时间。
它使用连接到AS693 SNP 串行电缆的IC330PWR693232高容量电源。IC693PWR330电源的负载能力为 30 瓦输出,可提供 120/240 VAC 输入或 125 VDC 输出。 要测试IC693CPU311,请打开电源并检查电源顶部 LED 指示灯是否亮起“OK”。如果“OK”指示灯无法亮起,您应该知道模块的 CPU 有问题。
技术规格
处理器速度 10兆赫
I/O 点 160
寄存器存储器: 1千字节
浮点: 不
16 位系统 是的
处理器 80188
GE Fanuc IC693CPU311 系列 90-30 CPU 底板模块是专为 GE 90-30 系列 PLC 系统设计的标准 CPU 底板模块。IC693CPU311 CPU 基板模块属于 GE 系列 90-30 中端 CPU 系列,专为 I/O 数量较少的入门级应用而设计。IC693CPU311 CPU基板模块基本上是一个5插槽底板,背板中嵌入了一个CPU模块,这使得所有5个插槽都可用于I / O。IC693CPU311 CPU 基板模块是一个 16 位系统,围绕节省空间的模块化蓝图构建,可在预算范围内实现高性能运行。IC693CPU311 CPU 底板模块配备 10 兆赫兹处理器、1 KB 注册表存储器和 6 KB 用户逻辑存储器。IC693CPU311 CPU 基板模块的嵌入式 CPU 支持多达 160 个离散 I/O 点,支持非浮点数学运算,还支持多达 64 个模拟输入和 32 个模拟输出连接。
IC693CPU311 CPU底板模块的嵌入式CPU不可现场更换,因为它完全焊接在背板上,因此不支持扩展或远程机架连接。IC693CPU311 CPU基板模块没有内置电池,但它具有内置的“超级电容器”,可以存储足够的电荷来运行内存电路一小段时间。它支持梯形逻辑和SFC编程,还支持布尔运算。IC693CPU311 CPU 底板模块需要一个称为 IC693PWR330 电源的高容量电源,该电源可提供 30 瓦的输出功率容量和 120/240 伏交流输入功率容量,并在 410 伏直流电下提供 5 毫安的背板电流额定值。IC693CPU311 CPU 底板模块带有一个连接到电源的 RS-485 串行端口。它还具有一个电源 LED,可显示模块的“开”或“关”状态。
IC693CPU311 带嵌入式 CPU 的底板 入门级应用
【英文介绍】
Product description
The IC693CPU311 module is a 5-slot rack with an embedded CPU in the base, manufactured by GE Fanuc. It is a 16-bit system belonging to the 90-30 series PLC with a processor speed of 10 MHz and a registry memory of 1 KB. It comes with 160 input/output points and no floating point math. The embedded CPU has the following properties: The CPU type cannot be changed because it is soldered to the backplane on the backplane. The embedded CPU has no time clock. Because they lack expansion connectors like modular baseboards, they do not support expansion or remote racks. If the power supply is disconnected or the battery is disconnected, the CPU has "super" capacitors that can store enough charge to maintain the memory circuit for a period of time.
It uses the IC330PWR693232 high capacity power supply connected to the AS693 SNP serial cable. The IC693PWR330 power supply has a load capacity of 30 watts output and can provide either 120/240 VAC input or 125 VDC output. To test the IC693CPU311, turn on the power supply and check that the LED indicator at the top of the power supply is on "OK". If the "OK" indicator does not come on, you should know that there is a problem with the module's CPU.
Technical specification
The processor speed is 10 MHZ
I/O point 160
Register memory: 1 kilobyte
Floating point: no
16-bit system Yes
Processor 80188
GE Fanuc IC693CPU311 Series 90-30 CPU backboard module is a standard CPU backboard module designed for GE 90-30 series PLC systems. The IC693CPU311 CPU baseboard module belongs to the GE Series 90-30 mid-range CPU family and is designed for entry-level applications with a low number of I/ OS. The IC693CPU311 CPU baseboard module is basically a 5-slot baseboard with a CPU module embedded in the backplane, which makes all 5 slots available for I/O. The IC693CPU311 CPU baseboard module is a 16-bit system built around a space-saving modular blueprint for high-performance operation on a budget. The IC693CPU311 CPU backboard module is equipped with a 10 MHZ processor, 1 KB registry memory, and 6 KB user logic memory. The embedded CPU of the IC693CPU311 CPU baseboard module supports up to 160 discrete I/O points, supports non-floating-point math operations, and also supports up to 64 analog inputs and 32 analog output connections.
The embedded CPU of the IC693CPU311 CPU backboard module is not field replaceable because it is completely soldered to the backplane and therefore does not support expansion or remote rack connections. The IC693CPU311 CPU baseboard module does not have a built-in battery, but it does have a built-in "supercapacitor" that can store enough charge to run the memory circuit for a short period of time. It supports ladder logic and SFC programming, and also supports Boolean operations. The IC693CPU311 CPU backboard module requires a high-capacity power supply called the IC693PWR330 power supply, which provides 30 watts of output power capacity and 120/240 volts of AC input power capacity, and provides a 5 mA backplane current rating at 410 volts of DC. The IC693CPU311 CPU backboard module comes with an RS-485 serial port connected to the power supply. It also has a power LED that shows the "on" or "off" status of the module.
IC693CPU311 带嵌入式 CPU 的底板 入门级应用
