GE IC693CHS391 带有十个插槽的扩展板 模拟量 I/O 模块

【产品详情】

概述

特征：

多才多艺

功能范围广

从简单的继电器更换为复杂的中档自动化

分立式和模拟量 I/O 模块

创新的架构和模块化设计

随着公司的发展扩展您的系统

凭借其模块化设计、100 多种不同的 I/O 模块和一系列 CPU 选项，90-30 系列为您提供了多功能性 根据您的特定性能需求配置系统。卓越的网络和通信功能使您能够通过一个非专有网络进行联网、传输数据、上传和下载程序以及执行诊断。集成到 90-30 系列中的运动控制有助于实现高性能的点对点应用，并支持各种电机类型和系统架构。

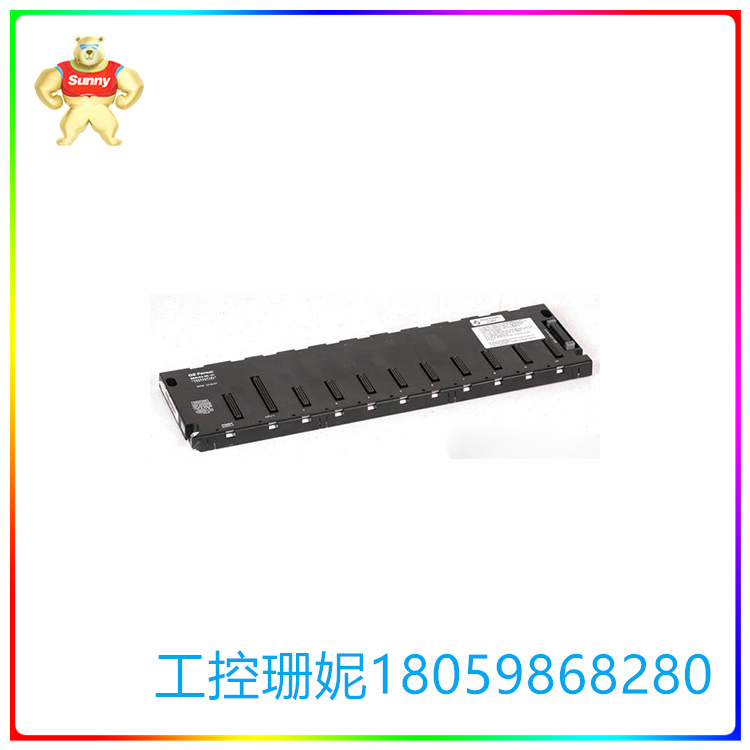

IC693CHS391是模块化 CPU 底板。该底板是GE Fanuc制造的90-30系列的一部分。该器件包含连接端口，允许模块化 CPU、I/O 模块和电源模块安装。它总共有十 （10） 个插槽，其中一 （1） 个插槽分配给 CPU，九 （9） 个插槽分配给 I/O 模块。电源插槽不包括在插槽计数和总线扩展端口中。

由于这是一个模块化的CPU插槽，因此默认情况下为其分配了一个节点地址0，可以通过编程软件进行修改。系统仅支持一 （1） 个模块化 CPU 插槽。系统中的其他插槽可以是扩展或远程 I/O 底板。

电源安装在最左侧的插槽中，该插槽不包括在插槽计数中，允许此底板支持更多I / O。CPU 仅安装在插槽 1 上，因为此插槽的尺寸特别适合 CPU 连接或特殊选件模块，例如 FIP 总线远程 I/O 扫描程序。插槽编号 2 及更高，特别适合 I/O 或选件模块。扩展或远程 I/O 底板通过底板最右侧的扩展端口连接。根据IC693CHS391托管的 CPU，IC4CHS7 模块化 CPU 底板最多可支持四 （693） 或七 （391） 个扩展底板。此底板仅支持面板安装，通过螺钉和垫圈通过提供的安装孔固定。

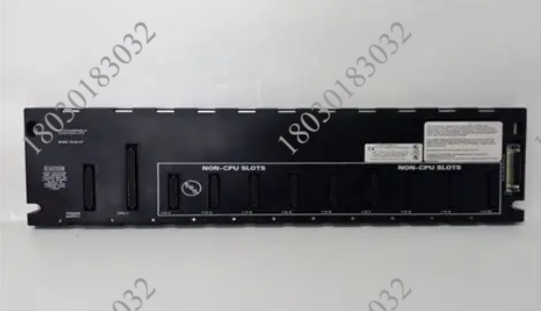

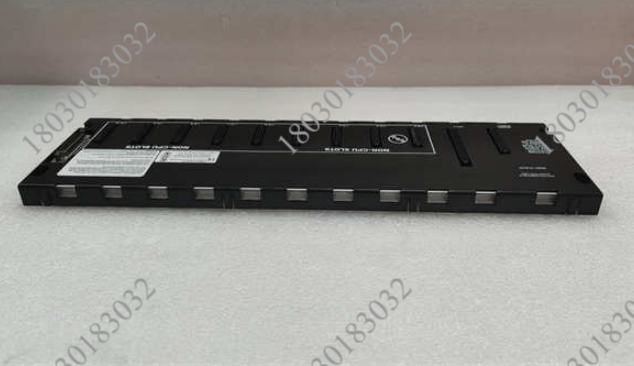

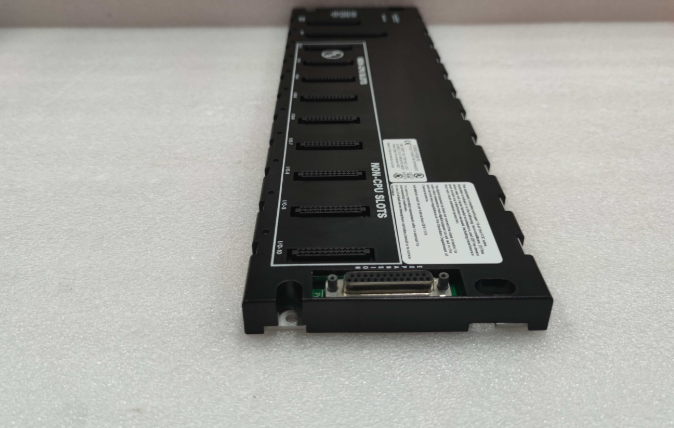

IC693CHS391底板是GE Fanuc制造的扩展底板，配备十个插槽。它的额定电流为 420 mA，额定电压为 5 伏直流电。它配备了一个DIP开关。扩展底板与其他模块一起连接到 90-30 系列 PLC。电源模块插入底板的左侧插槽中。IC693CHS391底板采用模块化尺寸，并具有开放式外壳。如果需要额外的功能，可以轻松安装和更换或更改为其他类型。电源端口位于板的左侧，以及用于 CPU 和非 CPU 插槽的连接插槽。它还在右侧有一个 25 针母连接器，用于连接扩展和远程底板。

要与远程底板连接，IC693CHS391扩展底板需要长度小于 700 英尺的电缆。底板不能用作单个实体。它可以连接到 PLC 设备或使用 PCI 卡的个人计算机。它一次最多可以连接 7 个 CPU，具体取决于所用 CPU 的型号。IC693CHS391底板可以垂直或水平安装，具体取决于 PLC 或 CPU 的布局。环境温度应始终在指定范围内。盘子应远离水溅和灰尘、污垢和有害化学物质的来源。IC693CHS391底板通过了多项全球环境和工业标准的认证。

GE IC693CHS391 带有十个插槽的扩展板 模拟量 I/O 模块

【英文介绍】

summarize

Features:

versatile

Wide range of functions

Change from simple relays to complex mid-range automation

Discrete and analog I/O modules

Innovative architecture and modular design

Expand your system as your company grows

With its modular design, more than 100 different I/O modules and a range of CPU options, the 90-30 series gives you the versatility to configure your system according to your specific performance needs. Superior networking and communication capabilities enable you to network, transfer data, upload and download programs, and perform diagnostics over a non-proprietary network. Motion control integrated into the 90-30 series facilitates high-performance point-to-point applications and supports a wide range of motor types and system architectures.

IC693CHS391 is a modular CPU mainboard. The baseplate is part of the 90-30 series manufactured by GE Fanuc. The device includes connection ports that allow modular CPU, I/O modules, and power modules to be installed. It has a total of ten (10) slots, of which one (1) slot is allocated to the CPU and nine (9) slots are allocated to the I/O module. Power sockets are not included in slot counts and bus expansion ports.

Since this is a modular CPU slot, it is assigned a node address 0 by default, which can be modified with programming software. The system supports only one (1) modular CPU slot. Other slots in the system can be expansion or remote I/O backboards.

The power supply is installed in the leftmost slot, which is not included in the slot count, allowing this baseboard to support more I/O. The CPU is only installed on slot 1 because this slot is particularly sized for CPU connections or special option modules, such as FIP bus remote I/O scanners. Slot numbers 2 and higher, especially for I/O or option modules. The extension or remote I/O baseboard connects to the extension port on the far right of the baseboard. Depending on the CPU hosted by the IC693CHS391, the IC4CHS7 modular CPU backboards can support up to four (693) or seven (391) expansion backboards. This base plate supports panel mounting only and is secured by screws and washers through the provided mounting holes.

The IC693CHS391 baseboard is an expansion baseboard manufactured by GE Fanuc with ten slots. It has a rated current of 420 mA and a rated voltage of 5 volts DC. It is equipped with a DIP switch. The expansion backboard is connected to the 90-30 series PLC along with other modules. The power module is inserted into the left slot of the mainboard. The IC693CHS391 baseplate is modular in size and has an open housing. If additional features are needed, they can be easily installed and replaced or changed to other types. The power port is located on the left side of the board, along with a connection slot for the CPU and non-CPU slots. It also has a 25-pin female connector on the right side for connecting expansion and remote backboards.

To connect to the remote baseboard, the IC693CHS391 expansion baseboard requires a cable less than 700 feet in length. The baseplate cannot be used as a single entity. It can be connected to a PLC device or a personal computer using a PCI card. It can connect up to seven cpus at a time, depending on the model of CPU used. The IC693CHS391 backboard can be mounted vertically or horizontally, depending on the layout of the PLC or CPU. The ambient temperature should always be within the specified range. Dishes should be kept away from water splashes and sources of dust, dirt and harmful chemicals. The IC693CHS391 baseboard is certified to several global environmental and industry standards.

GE IC693CHS391 带有十个插槽的扩展板 模拟量 I/O 模块
