IC693CBL305 星形通信电缆 串行通信电缆

【产品详情】

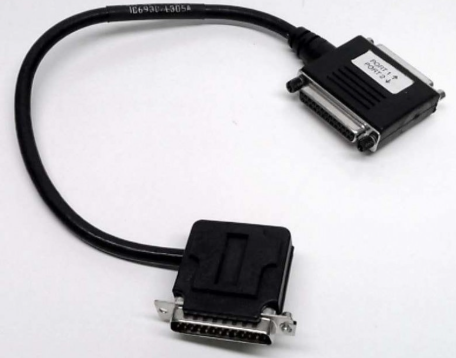

GE Fanuc IC693CBL305是一条“WYE”电缆。该组件是与 90-30 PCM 系列一起使用的附件。它与 PCM301、PCM311 和 CMM311 型号兼容。 此IC693CBL305电缆的目的是将模块上的两个端口与单个物理连接器分开。这样， RS-232与RS-485信号分离。 此外，使用IC693CBL305星形电缆对于用户应用中的其他电缆还有另一个巨大好处。当使用星形电缆时，90-70系列ADC和90-30系列ADC将完全兼容。 IC693CBL305长一英尺，一端有一个直角连接器。这将连接到ADC模块。在电缆的另一端有一个双连接器，一个连接器用于端口 1，另一个用于端口 2。如果操作员选择不使用星形电缆，则必须制作特殊电缆，以便将任何RS-232设备连接到端口2。

GE Fanuc IC693CBL305 星形电缆是一种串行通信电缆，旨在将 GE 系列 90-30 通信协处理器模块的组合串行端口物理分离成 2 个端口，称为端口 1 和端口 2，以便于接线。IC693CBL305电缆还用于将 2 个 ADC 端口连接与 ADC 模块上的单个连接器分离出来。此电缆随 GE 系列 90-30 通信协处理器模块一起提供。IC693CBL305星形电缆旨在提供串行端口之间的物理距离，从而为布线提供方便的空间。IC693CBL305星形电缆与 90-30 CMM 和 PCM 系列模块兼容，这些模块默认将端口 1 和端口 2 配置为单个连接器，有助于在这 2 个端口信号之间提供物理隔离。

IC693CBL305 星形电缆的最大电缆长度为 30.5 厘米（1 英尺），两端都有特殊形状的连接器。电缆的一端是一个直角形连接器，连接到通信协处理器模块的组合串行端口，电缆的另一端具有标记为端口 1 和端口 2 连接器的双连接器。通常，IC693CBL305星形电缆具有“Y”形，因为一端具有单个直角连接器，另一端是双连接器。GE 系列 90-30 通信协处理器模块支持 RS-232（端口 1）和 RS-232 或 RS-485（端口 2）应用，IC693CBL305 星形电缆有助于将端口 1 RS-232 信号和端口 2 RS-232/485 信号路由到指定的 RS-232/RS-485 25 针连接器。

IC693CBL305 星形通信电缆 串行通信电缆

【英文介绍】

GE Fanuc IC693CBL305 is a "WYE" cable. This component is an accessory for use with the 90-30 PCM series. It is compatible with PCM301, PCM311 and CMM311 models. The purpose of this IC693CBL305 cable is to separate the two ports on the module from a single physical connector. In this way, RS-232 and RS-485 signals are separated. In addition, the use of the IC693CBL305 star cable has another great benefit for other cables in the user's application. When using a star cable, the 90-70 series ADCs and 90-30 series ADCs will be fully compatible. The IC693CBL305 is one foot long and has a right Angle connector at one end. This will connect to the ADC module. At the other end of the cable there is a double connector, one connector for port 1 and the other for port 2. If the operator chooses not to use a star cable, special cables must be made in order to connect any RS-232 device to port 2.

The GE Fanuc IC693CBL305 star cable is a serial communication cable designed to physically separate the combined serial ports of the GE Series 90-30 communication coprocessor module into 2 ports, called port 1 and Port 2, for easy wiring. The IC693CBL305 cable is also used to separate the 2 ADC port connections from the single connector on the ADC module. This cable is supplied with the GE series 90-30 communication coprocessor module. The IC693CBL305 star cable is designed to provide a physical distance between serial ports, thus providing a convenient space for cabling. The IC693CBL305 star cable is compatible with 90-30 CMM and PCM series modules, which by default configure ports 1 and 2 as a single connector, helping to provide physical isolation between these two port signals.

The IC693CBL305 star cable has a maximum cable length of 30.5 cm (1 foot) with specially shaped connectors at both ends. One end of the cable is a right-angled connector that connects to the combined serial port of the communication coprocessor module, and the other end of the cable has dual connectors labeled as port 1 and port 2 connectors. Typically, the IC693CBL305 star cable has a "Y" shape because one end has a single right Angle connector and the other end is a double connector. The GE Series 90-30 communication Coprocessor module supports RS-232 (port 1) and RS-232 or RS-485 (port 2) applications. The IC693CBL305 star cable helps route the port 1 RS-232 signal and port 2 RS-232/485 signal to the specified RS-232/RS-485 25-pin connector.
