GE IC670GBl102 总线接口模块 分布式I/O架构

【产品详情】

IC670GBI102是GE发那科公司生产的天才总线接口模块。该模块是Field控制系列的一部分，主要用于实现分布式I/O架构，通过Genius总线网络将Field控制I/O模块连接到主机GE CPU。它具有用于终止Genius主总线和可选冗余总线的螺杆式端子阵列;1个9pin D-shell监视器端口，用于连接手持编程器(HHP);它能够承载多达8个现场控制I/O，并支持标准的Profibus传输速度，如153.6 kaud标准，153.6 kaud扩展，76.8 kaud或38.4 kaud。

IC670GBI001是GE发那科现场控制系列的通信模块。该模块特别支持天才总线协议，允许用户实现分布式I/O架构。该模块与一个天才总线接口单元端子块相结合，以便安装DIN导轨或面板安装。该端子排模块还包含螺钉端子，可以建立主母线连接和可选冗余网络连接。

IC670GBI001在主总线和从总线上都支持菊花链拓扑结构。支持153.6 kaud标准、153.6 kaud扩展、76.8 kaud或38.4 kaud的数据传输速度，支持256字节的离散输入(%I)、状态数据和智能模块等多种数据类型的可用内存分配;256字节用于离散输出(%Q)和智能模块故障清除;256字节用于模拟输入(%AI)和256字节用于模拟输出(%AQ)。主、次母线连接点均设有终端电阻连接点，用于终止母线连接，维持跨网络的稳定连接。这个终止点是在串行1和串行2终端之间特别分配的，安装在总线的开始(第一个节点)和结束(最后一个节点)。电阻值包括75欧姆，100欧姆，120欧姆或150欧姆的终端电阻。预成型的总线电缆也可以与目录号为IC660BLM508的总线接口模块一起使用，该模块使用75欧姆电阻，IC660BLM506使用150欧姆电阻。

IC670GBI102模块是GE Fanuc Genius Bus接口模块。它的额定电压为交流120伏和直流125伏。它用于现场控制系统，并用于控制各种主机架构。完全兼容IC670GB和iC670GBI模块。总线接口单元安装有DIN导轨。该模块在端子排下面有一个金属接地带。总线接口模块有助于智能处理和I/O扫描应用程序，一次最多可连接8个I/O模块。IC670GBI102模块通过Genius总线与Field Control I/O模块和主机PLC或计算机接口。它可以在一次总线扫描中与每个主机交换最多128字节的输入和输出数据。它有助于故障报告、模拟缩放和范围选择应用程序。自我诊断在模块启动时运行，并检查错误。

GE Fanuc IC670GBI102现场控制天才总线接口模块可用于单总线和双总线设置。母线接口模块的工作环境温度为0℃~ 60℃。该模块通过CE认证，并符合cULus标准。IC670GBI102接口模块带有D连接器，用于连接显示器或终端。与连接器一起，有LED指示灯显示电源状态和“总线活动”状态。母线接口模块的工作频率为50 ~ 60赫兹。接口模块的额定扭矩为9n -m。对于布线，本模块使用90摄氏度额定铜导体线。

GE IC670GBl102 总线接口模块 分布式I/O架构

【英文介绍】

The IC670GBI102 is a Genius Bus Interface module that is manufactured by GE Fanuc. This module is part of the Field control series, primarily used to implement distributed I/O architecture by interfacing Field control I/O modules to a host GE CPU via Genius bus network. It features an array of screw-type terminals for termination of the Genius main bus and optional redundant bus; One (1) 9pin D-shell monitor port for connection of a Hand-Held Programmer (HHP); It is capable of hosting up to Eight (8) Field control I/O and supports standard Profibus transmission speed such as 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud.

The IC670GBI001 isa communication module from the Field Control series of GE Fanuc. This module specifically supports Genius Bus protocol, allowing users to implement distributed I/O architecture. This module is coupled with a Genius Bus Interface Unit terminal block to enable mounting DIN rail or Panel mounting. This terminal block module also hosts the screw terminals where main genius bus connection and optional redundancy network connectivity can be established.

The IC670GBI001 supports daisy-chain topology architecture on both the primary and secondary bus. The supported data transmission speed of this module are 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud with available memory allocations for a variety of data types such as 256 Bytes for discrete inputs (%I), status data and intelligent modules; 256 Bytes for discrete outputs (%Q) and fault clearing for intelligent modules; 256 bytes for analog inputs (%AI) and 256 bytes for analog outputs (%AQ). Both the primary and secondary bus connection points are provided with terminating resistor connection points that is used to terminate the bus connection and maintain a stable connection across the network. This termination point is specifically allocated across the serial 1 and serial 2 terminals, installed at the start (first node) and end of the bus (last node). Resistor values include 75 ohm, 100 ohm, 120 ohm or 150 ohm terminating resistor. Pre-molded bus cables may also be used with this Bus Interface module with catalog number IC660BLM508 which uses 75 ohm resistor and IC660BLM506 which uses 150 ohm resistor.

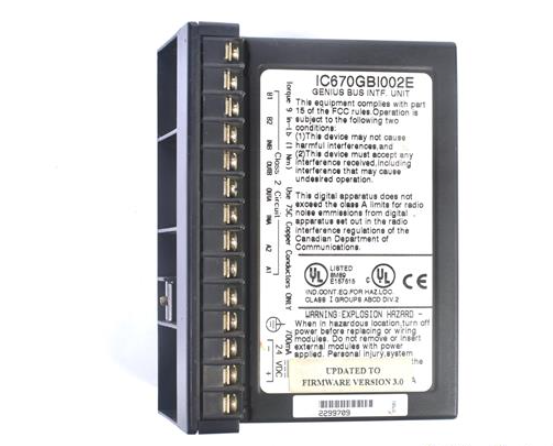

The IC670GBI102 module is a GE Fanuc Genius Bus interface module. It has a nominal voltage rating of 120 Volts AC and 125 Volts DC. It is used in Field Control systems and it is used to control a wide variety of host architectures. It is fully compatible with the IC670GB and iC670GBI modules. The bus interface unit is mounted with a DIN Rail. The module comes with a metal grounding strip underneath the terminal block. The Bus interface module helps with intelligent processing and I/O scanning applications and it connects up to 8 I/O modules at a time. The IC670GBI102 module interfaces with Field Control I/O modules and a host PLC or computer by using the Genius bus. It can exchange a maximum of 128 Bytes of input and output data with each host in a single bus scan. It helps with fault reporting, analog scaling, and range selection applications. The self diagnostics run when the module starts up and they check for errors.

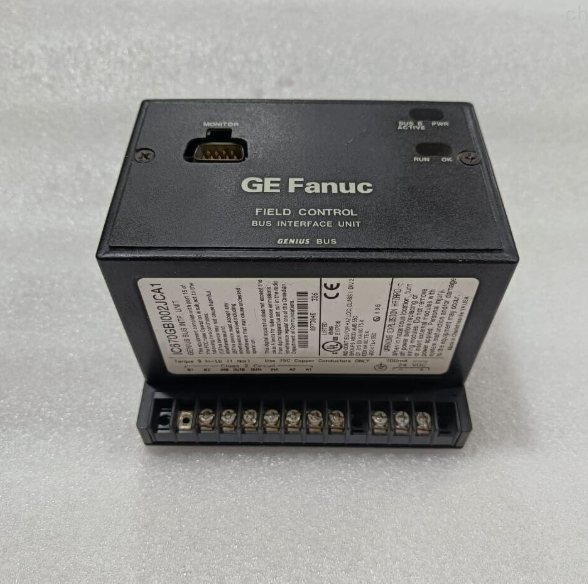

The GE Fanuc IC670GBI102 Field Control Genius Bus interface module can be used with both a single bus and a dual bus setup. The bus interface module operates best with an ambient air temperature between 0 degrees Celsius and 60 degrees Celsius. The module is CE certified and listed with the cULus standard. The IC670GBI102 interface module comes with a D connector for connecting to a display monitor or terminal. Along with the connector, there are LED indicators to show the power status and the “Bus Active” status. The operating frequency of the bus interface module is 50 to 60 Hertz. The interface module has 9 N-m of rated torque. For wiring, this module uses 90 degrees Celsius rated copper conductor wire.

GE IC670GBl102 总线接口模块 分布式I/O架构
