GE IC670GBI002 现场控制总线接口单元 控制系统

【产品详情】

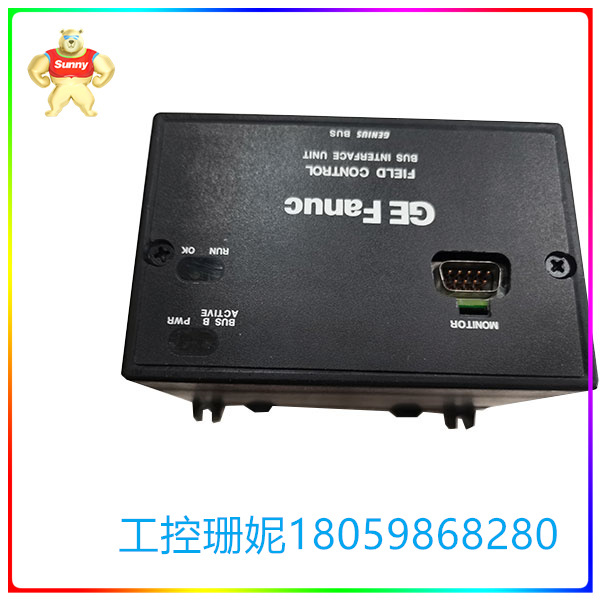

GE Fanuc IC670GBI002模块是一个现场控制总线接口单元。它用于主机PLC或计算机与GE现场控制I/O的接口。在每次扫描期间，总线接口单元最多可以交换 128 KB 的输入和 128 KB 的输出。IC670GBI002模块还能够处理Genius数据报通信。该装置能够对连接的 I/O 模块以及自身进行诊断测试。诊断信息将中继到主机设备或手持显示器。IC670GBI002模块安装在总线接口单元的接线端子上。电源连接和单/双通信电缆的接线端接在兼容的接线端子上。

无需重新配置 I/O 接线即可更换IC670GBI002模块。该接口单元还支持热插入和拔出。当按照所有推荐的准则进行安装时，IC670GBI002模块可以抵抗工业应用中通常存在的噪音水平。模块的工作温度范围为0至55摄氏度，存储温度范围为-40至85摄氏度。非冷凝相对湿度范围为 5% 至 95%，适用于操作和储存。IC670GBI002模块的额定故障前最短平均时间为 183,000 小时。标称直流输入电压为 24 伏直流电，满载时的最大功率为 16.8 瓦。设备的保持时间为 10 毫秒。标称交流输入电压为 115 伏交流电。总线接口单元的接线端子最多需要 16 毫安的电流，额定故障前的最短平均时间为 600,000 小时。

 IC670GBI002是一个总线接口单元，是现场控制系统的一部分。它充当每个现场I/O系统的接头模块，通过Genius Bus管理主PLC或计算机之间的接口。它能够交换 128 字节的输入和 128 字节的输出数据，并支持多达八 （8） 个现场控制 I/O 模块。该模块支持热备用 CPU 配置，需要外部 18-30 VDC 电源电压，标称值为 24 VDC。

IC670GBI002是现场控制系统系列的总线接口单元（BUI）。此 BUI 支持 Genius 总线协议，并支持托管多达八 （8） 个现场 I/O 模块。BUI 管理现场 I/O 模块与驻留在 Genius 总线中的主控制器主机之间的数据交换。 IC128GBI128总线接口单元可容纳多达 670 字节的输入数据和 002 字节的输出数据。

IC670GBI002安装到适当的端子底座上。它设计为安装在 DIN 导轨上，并将 DIN 导轨组件连接到接地系统。这样，请确保DIN导轨材料由良好或优良的导体制成，并且不易受到氧化和腐蚀的影响。

IC670GBI002由 18-30 VDC 的外部电源电压范围供电，标称值为 24 VDC。它的功耗为 16.8 瓦，浪涌电流为 15-50 A（峰值），最长持续时间为 3 毫秒。它具有 6.5 VDC 的电源输出和 1.4 安培的最大电流，保持时间为 10 ms。 输出电压和电流通过 BUI 背板传递到托管模块。

IC670GBI002具有 183， 000 小时运行平均故障前时间 （MTBF） 的可靠性。它配有用于电源和通信连接的端子条以及用于建立与下一个接线端子连接的 I/O 端子。除了冗余 CPU 组件外，它还可用于热拔除和插入要求，前提是安装了适当的现场 I/O 模块版本。

GE IC670GBI002 现场控制总线接口单元 控制系统

【英文介绍】

The GE Fanuc IC670GBI002 module is a field control bus interface unit. It is used for the interface between the host PLC or computer and GE field control I/O. During each scan, the bus interface unit can exchange up to 128 KB of input and 128 KB of output. The IC670GBI002 module is also capable of handling Genius datagram communications. The device is capable of performing diagnostic tests on the connected I/O modules as well as on itself. Diagnostic information is relayed to the host device or handheld display. The IC670GBI002 module is installed on the wiring terminals of the bus interface unit. Power connections and terminals for single/dual communication cables are connected to compatible terminals.

You can replace the IC670GBI002 without reconfiguring I/O cables. The interface unit also supports hot insertion and removal. When installed in accordance with all recommended guidelines, the IC670GBI002 module is resistant to noise levels commonly found in industrial applications. The operating temperature range of the module is 0 to 55 degrees Celsius, and the storage temperature range is -40 to 85 degrees Celsius. Non-condensing relative humidity ranges from 5% to 95%, suitable for handling and storage. The minimum average time before rated failure of the IC670GBI002 module is 183,000 hours. The nominal DC input voltage is 24 volts DC, with a maximum power of 16.8 watts at full load. The device's hold time is 10 milliseconds. The nominal AC input voltage is 115 volts AC. Bus interface unit terminals require up to 16 MA of current, and the minimum average time before failure rating is 600,000 hours.

The IC670GBI002 is a bus interface unit that is part of the field control system. It acts as a connector module for each field I/O system, managing the interface between the main PLCS or computers via the Genius Bus. It is capable of exchanging 128 bytes of input and 128 bytes of output data and supports up to eight (8) field control I/O modules. The module supports a hot standby CPU configuration and requires an external 18-30 VDC power supply voltage with a nominal value of 24 VDC.

The IC670GBI002 is the Bus interface unit (BUI) of the Field Control system family. This BUI supports the Genius bus protocol and supports hosting up to eight (8) field I/O modules. BUI manages the data exchange between the field I/O module and the master controller host, which resides in the Genius bus. The IC128GBI128 bus interface unit can hold up to 670 bytes of input data and 002 bytes of output data.

Install the IC670GBI002 on the appropriate terminal base. It is designed to be mounted on a DIN rail and connects the DIN rail components to the grounding system. In this way, make sure that the DIN guide material is made of a good or excellent conductor and is not susceptible to oxidation and corrosion.

The IC670GBI002 is powered by an external supply voltage range of 18-30 VDC, with a nominal value of 24 VDC. It has A power consumption of 16.8 watts, a surge current of 15-50 A (peak), and a maximum duration of 3 milliseconds. It has a power output of 6.5 VDC and a maximum current of 1.4 amps with a hold time of 10 ms. The output voltage and current are transferred to the hosting module through the BUI backplane.

The IC670GBI002 has an operational mean time to failure (MTBF) reliability of 183,000 hours. It is equipped with terminal strips for power and communication connections and I/O terminals for establishing a connection to the next terminal. In addition to redundant CPU components, it can also be used for thermal removal and insertion requirements, provided that the appropriate version of the field I/O module is installed.
