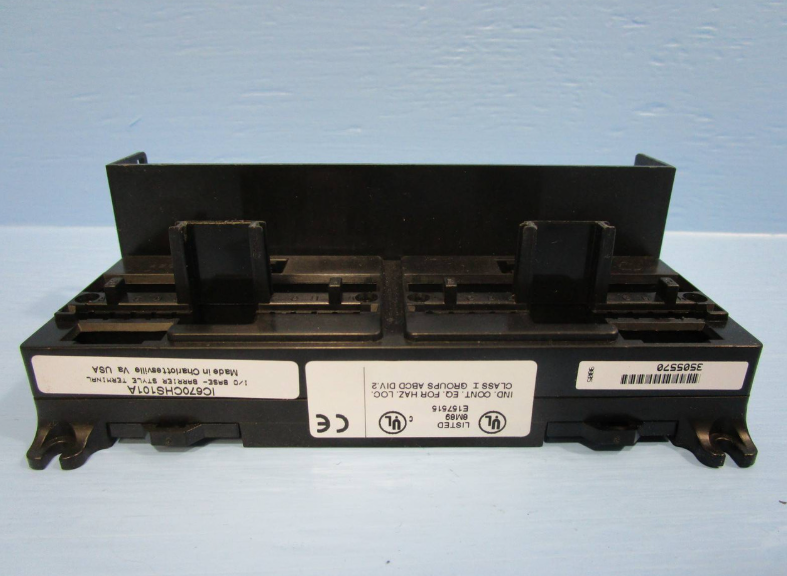

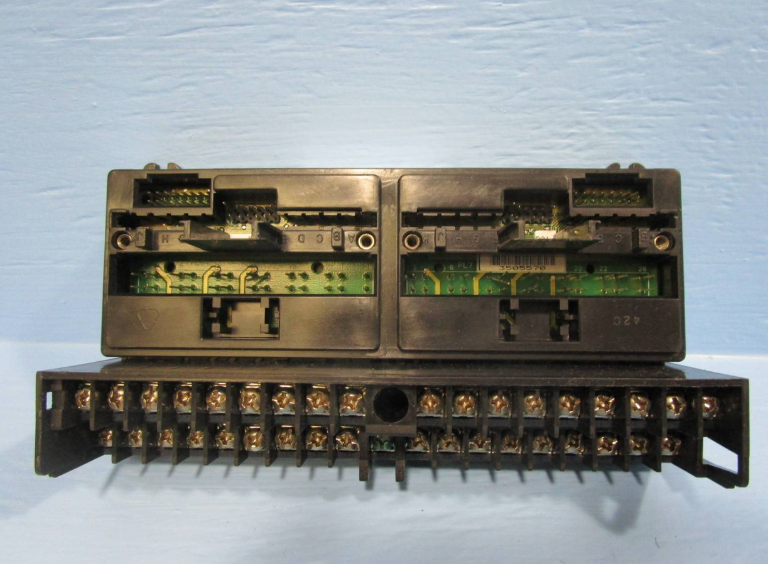

GE IC670CHS101 接线连接平台 固态连接平台

【产品详情】

GE Fanuc现场控制IC670CHS101 I/O接线端子是一个通用的接线连接平台，提供37个输入或输出点，以允许建立通信链路并提供使2个GE Fanuc I/O模块运行所需的电源。附加模块通过简单的插入安装到GE Fanuc IC670CHS101 I / O接线端子上，并且该模块配有螺钉，用于将模块锁定到位并避免因面板过度振动而导致的意外断开。称为端子A和B的端子用于连接系统电源，其余的可以根据用户应用程序的需要使用。

GE Fanuc现场控制IC670CHS101 I/O接线端子由GE Fanuc设计和建造，用作GE I/O模块的固态连接平台。它出厂时带有屏障式连接点，允许电缆尺寸从 AWG #14 到 AWG #22。

与其他类似产品相比，IC670CHS101接线端子的主要优点是，它在出厂时具有额外的短路或错误连接保护，因为它的接线点是作为屏障构建的，将每个连接点与其他连接点物理隔离。GE Fanuc IC670CHS101 I/O接线端子专为热插拔操作而设计，非常适合停机成本高且维护团队没有足够的时间进行传统故障排除程序的应用。每个屏障式端子连接点最多允许 2 根尺寸为 AWG #14 至 AWG #22 的电缆。GE Fanuc IC670CHS101 I/O接线端子可以与其他类似模块串联安装，只要设备以正确的极性顺序安装，以避免系统中的通信问题。每个接线端子必须正确接地到连接到用户提供的配电板上的导电DIN导轨上。

GE IC670CHS101 接线连接平台 固态连接平台

【英文介绍】

GE Fanuc Field Control IC670CHS101 I/O terminals are a universal wiring connection platform that provides 37 input or output points to allow the establishment of a communication link and to provide the power needed to run 2 GE Fanuc I/O modules. The add-on module is simply inserted into the GE Fanuc IC670CHS101 I/O terminals and is equipped with screws to lock the module into place and avoid accidental disconnection due to excessive panel vibration. The terminals called terminals A and B are used to connect the system power supply, and the rest can be used according to the needs of the user application.

GE Fanuc Field Control The IC670CHS101 I/O terminals were designed and built by GE Fanuc as a solid-state connection platform for GE I/O modules. It comes with a screen connection point that allows cable sizes from AWG #14 to AWG #22.

The main advantage of the IC670CHS101 terminals compared to other similar products is that it has additional protection against short circuits or false connections at the factory because its terminals are built as barriers, physically isolating each connection point from the others. The GE Fanuc IC670CHS101 I/O terminals are designed for hot-swap operations and are ideal for applications where downtime costs are high and maintenance teams do not have enough time for traditional troubleshooting procedures. A maximum of 2 cables of dimensions AWG #14 to AWG #22 are allowed per screen terminal connection point. The GE Fanuc IC670CHS101 I/O terminals can be installed in series with other similar modules as long as the devices are installed in the correct polarity sequence to avoid communication problems in the system. Each terminal must be properly grounded to a conductive DIN rail connected to the user-supplied switchboard.

GE IC670CHS101 接线连接平台 固态连接平台
