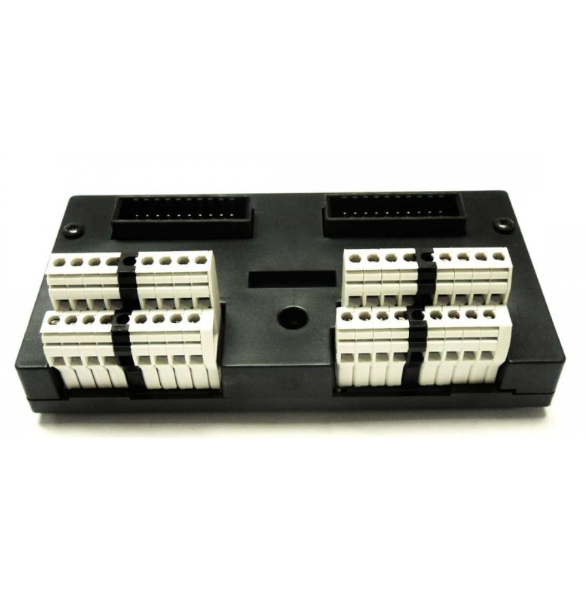

GE IC670CHS004 热电偶接线端子

【产品详情】

GE Fanuc IC670CHS004热电偶接线端子用作连接接口和结补偿模块，用于将毫伏级热电偶信号正确连接到用于处理此类输入的GE Fanuc I/O模块。它出厂时带有 20 个连接引脚，应正确接地以正确执行其功能。

GE Fanuc IC670CHS004接线端子是一种固态接线端子，专门设计用于将热电偶信号连接到GE Fanuc现场控制站。它用作允许接收毫伏电压的接口，就像温度传感器通常传输的电压一样。该接线端子用作热电偶传感器的结补偿电路，用作现场控制热电偶模块的现场设备。热电偶传感器通过GE Fanuc IC670CHS004热电偶接线端子块中的螺丝端子连接。热电偶模块安装在不同的I / O接线端子中，并且需要使用专有的接线和连接器，以便通过GE Fanuc IC670CHS004热电偶接线端子处理来自现场热电偶传感器的信号。

在温度测量应用中使用IC670CHS004热电偶接线端子的主要优点是它将温度读数与应用过程隔离开来，从而补偿电路中存在的任何干扰，例如电路电子设备产生的热量引起的温度变化。GE Fanuc IC670CHS004热电偶接线端子能够通过使用一对内置热敏电阻来补偿应用过程中的这种和任何其他引起的温度变化。GE Fanuc IC670CHS004热电偶接线端子中可以安装两个不同的热电偶传感器。要考虑的一个重要方面是接地，因为该接线端子需要与机箱接地紧密连接，以便能够正确补偿温度。为了将输入电缆物理连接到引脚，建议使用称为 AMP Pro-Cimpper II 手动工具组件 90546-1 的专有工具。

GE IC670CHS004 热电偶接线端子

【英文介绍】

GE Fanuc IC670CHS004 Thermocouple terminals are used as connection interfaces and junction compensation modules for correctly connecting millivolt class thermocouple signals to GE Fanuc I/O modules for processing such inputs. It comes out of the factory with 20 connection pins that should be properly grounded to perform its function properly.

The GE Fanuc IC670CHS004 terminal is a solid-state terminal specially designed to connect thermocouple signals to a GE Fanuc field control station. It is used as an interface that allows the reception of millivolts, like the voltage normally transmitted by temperature sensors. The terminal is used as a junction compensation circuit of the thermocouple sensor and as a field device for field control of the thermocouple module. The thermocouple sensor is connected via the screw terminal in the GE Fanuc IC670CHS004 thermocouple terminal block. Thermocouple modules are installed in different I/O terminals and require the use of proprietary wiring and connectors in order to process signals from field thermocouple sensors via GE Fanuc IC670CHS004 thermocouple terminals.

The main advantage of using the IC670CHS004 thermocouple terminal in temperature measurement applications is that it isolates the temperature reading from the application process, thus compensating for any interference present in the circuit, such as temperature changes caused by heat generated by the circuit electronics. The GE Fanuc IC670CHS004 thermocouple terminals are capable of compensating for this and any other caused temperature changes during the application by using a pair of built-in thermistors. Two different thermocouple sensors can be installed in the GE Fanuc IC670CHS004 thermocouple terminals. An important aspect to consider is grounding, as this terminal needs to be tightly connected to the case grounding in order to be able to properly compensate for temperature. To physically connect the input cable to the pin, a proprietary tool called AMP Pro-Cimpper II Hand Tool Assembly 90546-1 is recommended.

GE IC670CHS004 热电偶接线端子
