GE IC670CHS003 接线端子 连接到电路板接口

【产品详情】

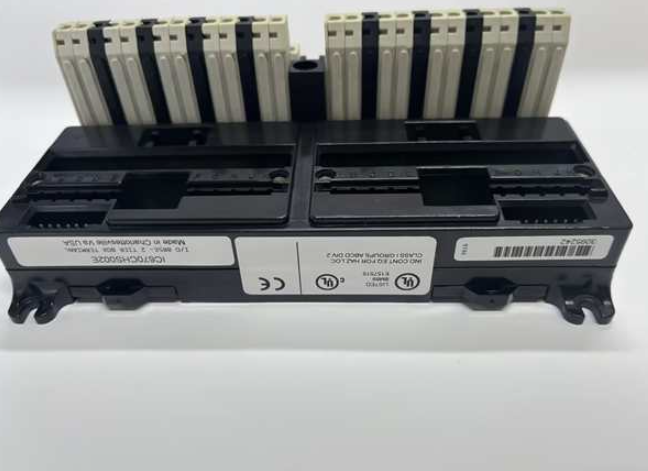

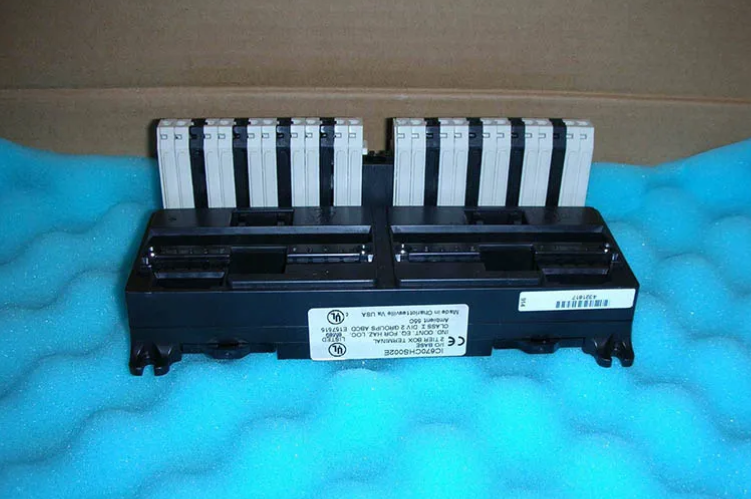

GE Fanuc设计制造了现场控制系列IC670CHS003接线端子，以适应用户的需求和不同的布线偏好。它的设计易于安装，并连接到电路板接口。IC670CHS003 I/O 接线端子配有线对板连接器。顾名思义，与该接线端子上的输入的连接是通过电线（通常是AWB 16-20规格的电线）进行的，然后将接线端子连接到GE Fanuc连接器中，以便快速插入或卸下I / O模块。GE Fanuc IC670CHS003 I/O 接线端子带有线对板连接器，可在公连接器组件中容纳多达 20 个独立的连接点或引脚。

与IC670CHS003 I/O 接线端子的公连接器匹配的母连接器标识为部件号 178289-8。根据最终用户应用的不同，接线盒的每个引脚将获得不同的功能。GE Fanuc IC670CHS003 I/O接线端子的用户手册将指导用户将不同的GE Fanuc模块连接到接线端子。用户有责任为安装人员提供适当的压接工具，以便正确完成接线端子中的电缆连接。只有经过培训、具有成熟电气经验的人员才能对GE Fanuc IC670CHS003 I/O接线端子执行连接、断开、故障排除和维护工作。鉴于此接线端子及其接线的环保等级较低（IP 20），强烈建议将接线端子放置在保护板内。

GE IC670CHS003 接线端子 连接到电路板接口

【英文介绍】

GE Fanuc has designed and manufactured the field control series IC670CHS003 terminal to suit the needs of users and different wiring preferences. It is designed to be easy to install and connect to the board interface. IC670CHS003 I/O wiring terminals with wired board connectors. As the name suggests, the connection to the input on this terminal is made by wire (usually AWB 16-20 specification wire), which is then connected to the GE Fanuc connector for quick insertion or removal of the I/O module. GE Fanuc IC670CHS003 I/O terminals with wireline-to-board connectors accommodate up to 20 separate connection points or pins in a male connector assembly.

The female connector that matches the male connector of the IC670CHS003 I/O terminal is identified as Part number 178289-8. Depending on the end-user application, each pin of the junction box will receive a different function. The GE Fanuc IC670CHS003 I/O terminal user manual will guide the user to connect different GE Fanuc modules to the terminal. It is the user's responsibility to provide the installer with the appropriate crimping tools to properly complete the cable connection in the terminal. Only trained personnel with proven electrical experience can connect, disconnect, troubleshoot, and maintain GE Fanuc IC670CHS003 I/O terminals. Due to the low environmental rating of this terminal and its wiring (IP 20), it is strongly recommended that the terminal be placed in the protective plate.
